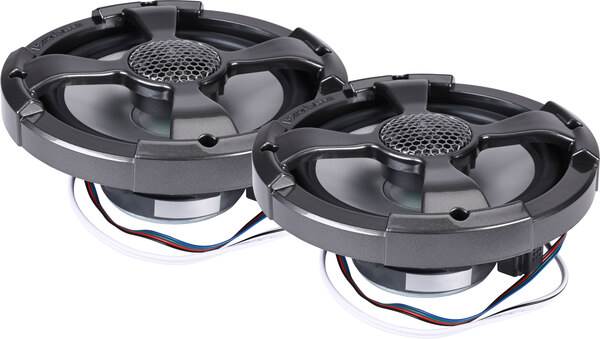

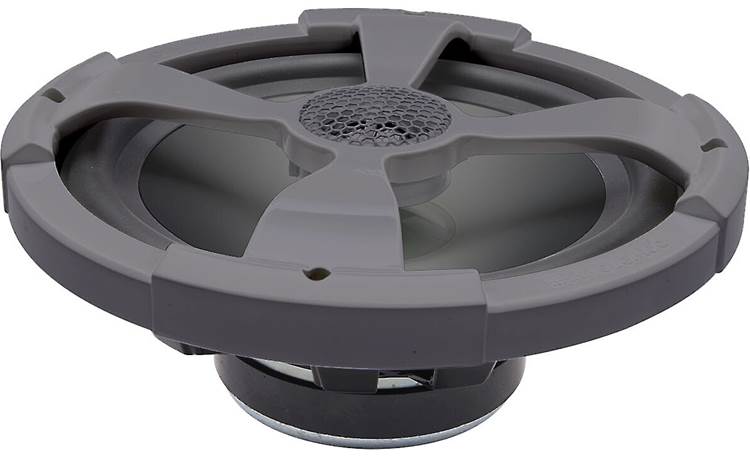

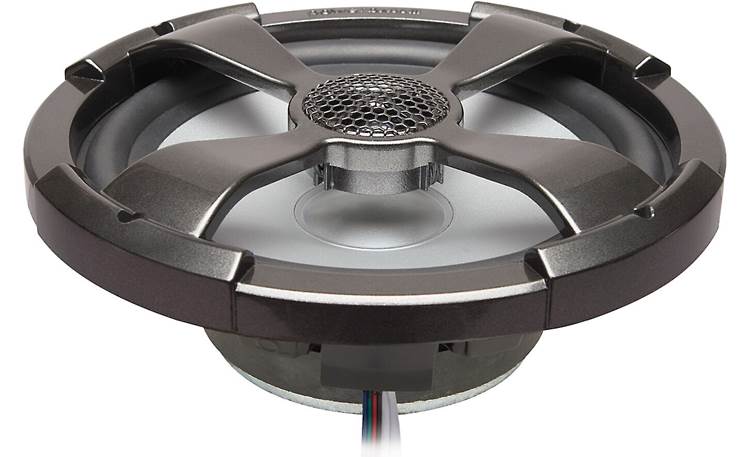

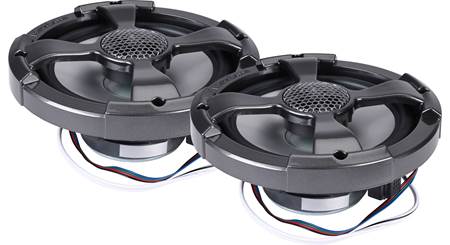

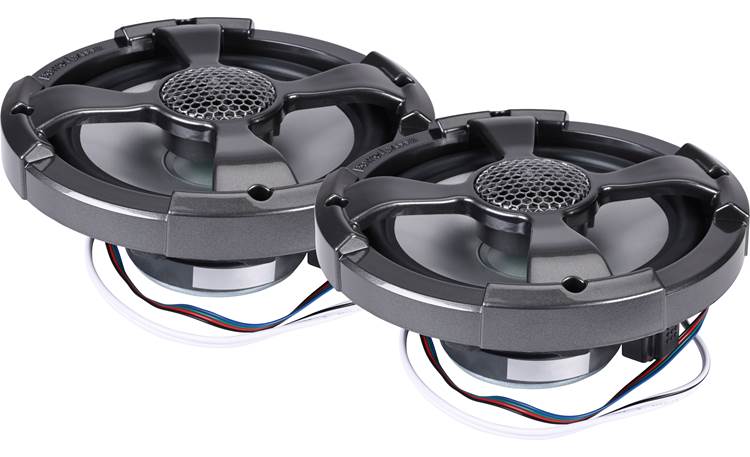

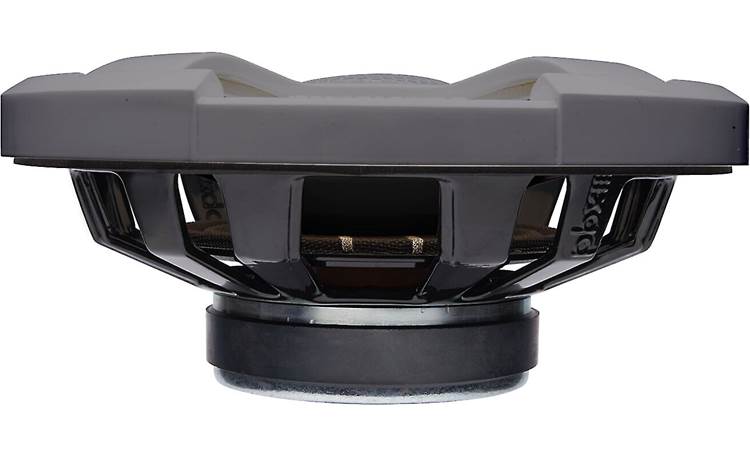

About the PowerBass XL-82SST
Product highlights:
- marine-grade 8" shallow-mount speakers with LED lighting
- RGB illumination with selectable lighting effects
- over 20 selectable colors and over 19 different lighting effects
- water-resistant polypropylene woofer cone
- grille-mounted 1" titanium dome tweeter
- UV-resistant grille and speaker basket
- thermoplastic polyurethane surround
- remote control included
- stainless steel hardware included
Specs:
- sensitivity: 90 dB
- frequency response: 45-20,000 Hz
- power handling: 120 watts RMS (240 watts peak)
- impedance: 3 ohms
- cut-out diameter: 7.25"
- mounting depth: 2.625"
- warranty: 1 year
- MFR # XL-82SST
- Item # 151XL82SST
What's in the box:
PowerBass XL-82SST owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers (18" speaker wire and 16" LED power wire attached)
- 2 Gray grilles (installed)
- Two 18' Lengths of 18-gauge speaker wire (each has bullet connectors on one end and tinned bare wire on the other)
- Two 18' RGB LED Power cables
- 2 In-line LED Control RF receivers
- Wireless RF remote control
- CR2025 Battery (installed in remote)
- 2 Adhesive backed foam gaskets
- Eight 1-3/8" Stainless steel screws
- 8 Stainless steel speed clips
- Application guide
- Template
- powerbass digital media note
- 2 Window stickers
More details on the PowerBass XL-82SST
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 8 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Tweeter Composition | Titanium | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Polyurethane | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity |
90 dB at 1 watt | |
| Frequency Response | 45 - 20k Hz | |
| Max RMS Power Handling | 120 | |
| Peak Power Handling (Watts) | 240 | |
| Impedance (Ohms) | 3 | |
| Top-mount Depth (Inches) | 2 5/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 7 1/4 | |
| Bolt Circle | 7.875 | |
Product Research
Features
Infinite-Baffle Operation: The speakers are designed for infinite-baffle operation (free air) and can be installed in a variety of locations, without the need for a dedicated enclosure. If mounted in an enclosure, a volume between 0.2 ft³ and 0.5 ft³ is recommended.
Mounting Location: These speakers must be installed at least three feet (1m) away from any electromagnetic nautical equipment (compass, sonar, etc).
Illumination: The XL-82SST speakers have red, green, and blue LEDs on the back of the tweeter housings to create a glow on the woofer cones. A 12-volt power supply is needed to turn the LEDs on and they are controlled using the included RF remote control. Up to 12 speakers (6 pair) can be controlled with one of the included in-line LED RF receivers. Choose between 20 different colors and 19 different lighting effects. If you do not want to use the remote control and only want to display a single color, this can be done by connecting the black wire in the 4-wire RGB harness to +12 volts and connecting some combination of the red, green, and blue wires to ground:
- Red = Red
- Green = Green
- Blue = Blue
- Red and Green = Bright Green
- Red and Blue = Magenta
- Blue and Green = Aqua
- Red, Blue and Green = White w/ Blue Tint
Notes:
- The two RF receivers will require 12-volt power and ground. To prevent battery drain install a switch on the +12V wire so you can turn off the RGB RF receivers when not in use.
- If you are not using the RF receivers and remote, you will need to connect the black +12V wire of the RGB extension harness to switched power either with a relay or switch to prevent battery discharge when using single color mode.
RF Remote and Receivers: The illumination is controlled by the included RF remote/RF receivers. The RF remote is powered by a CR2025 3V battery. Control functions include:
- Power On/Off: turns the RGB RF receivers on or off
- Dynamic Lightning Effect Mode Adjustment: switches between Static lighting or Dynamic effect mode, or switch between Effects when in Dynamic mode
- Dynamic Lightning Speed Adjustment: adjusts the speed up or down for the desired pattern
- Static Color Adjustment: switch to Static Color mode and select between 20 different colors
- Brightness Adjustment: increase/decrease brightness in Static Color mode
Wiring: Each speaker is equipped with a total of six wires, two speaker wires that attach to your amplifier, and four LED power wires (Red/Green/Blue/Black) that attach to the included RF receivers. Each RF receiver has power and ground inputs and four LED power outputs (Red/Green/Blue/Black).
Grilles: The grilles are held in place by four screws. Because the tweeter and LEDs are mounted to the back of each grille, they should not be removed.
