Features

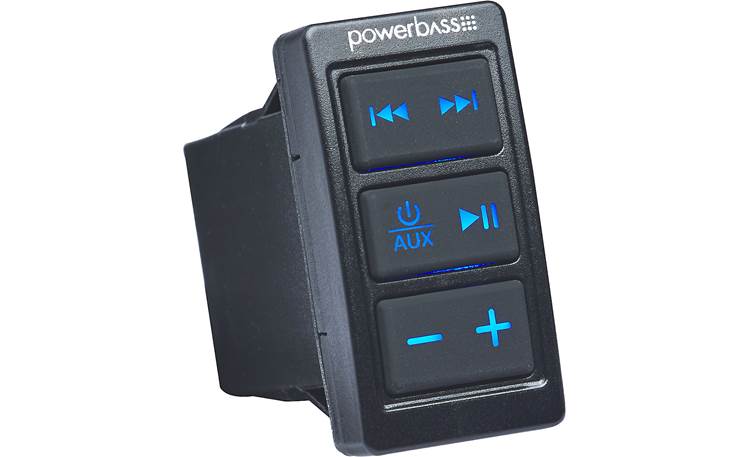

Bluetooth Rocker Switch: The PowerBass XL-BTRS is a universal add-on Bluetooth Rocker Switch with Auxiliary Audio input that can be mounted into a standard Carling-style switch opening. The XL-BTRS is designed for use in automobiles, ATV/UTVs, and marine craft.

Bluetooth Audio Streaming: The XL-BTRS Bluetooth Rocker Switch lets you wirelessly stream stored music and music apps from your Bluetooth enabled smartphone, tablet, laptop, or other Bluetooth source device to the Aux input of your amplified speaker system. The XL-BTRS uses the Bluetooth 4.2 protocol and has a range of over 30 feet.

Controls: The PowerBass XL-BTRS features six rubberized push-button controls.

• Power/Bluetooth/Aux-In: Power on/off the device, as well select between Bluetooth or Aux.
• Play/Pause: Play and Pause your Bluetooth music.
• Previous/Next Track: Select the previous or next track of your Bluetooth music.
• Volume Up/Down: Turn the volume level up or down for your connected Bluetooth or Aux device.

Aux In/RCA Out: The PowerBass XL-BTRS is equipped with a female 3.5mm Aux input for connecting an external audio source with a headphone jack or analog output. The Bluetooth Rocker Switch's female RCA output feeds the Bluetooth or Aux audio signal out to the audio input of your amplified speaker system. If your sound system only has a 3.5mm Aux input, an RCA (male)-to-3.5mm (female) cable is included.

Mounting: The XL-BTRS is designed to snap into a standard Carling-style switch opening, which is commonly used in the dashboard of many automobiles, off-road vehicles, and marine craft.

• Cutout: 0.830" (w) x 1.45" (h) x 2.50" (d)
• Front-Panel: 1.0" (w) x 1.94" (h) x 0.56" (d)
• Overall: 1.0" (w) x 1.94" (h) x 3.22" (d)

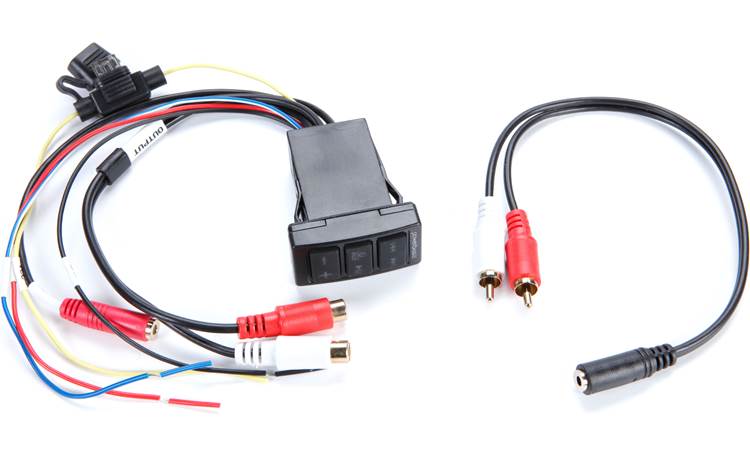

Wiring Harness: The attached 11" harness includes a +12V Constant Power (yellow), a +12V Switched Power wire (red), Remote Turn-On wire (blue), & Ground wire (black). The +12V Constant Power wire has an inline 2A fuse and connects to your vehicle's battery. The Switched Power wire gets connected to an ignition-controlled power source, while the Ground wire will need to be connected to the metal chassis of your vehicle. The Remote Turn-On wire connects to the Remote Turn-On wire of your amplified soundbar or speaker to turn the amplified system on when the Bluetooth Rocker Switch is powered on.
