Audio Section
Video Section
Network & Tuner Functions
AirPlay/Bluetooth/USB Integration
Multiroom Audio/Video Playback
Remote, App, & Voice Control
Convenience Features

Audio Section

Assignable 7-Channel Discrete Amplifier: The Sony STR-AN1000 AV receiver is equipped with a 7-channel amplifier rated at 100 watts (into 6-ohms, at 20-20khz, with 0.09% THD, driving 2 channels). The Sony AV receiver's Surround Back/Height amplifier channels can be configured to accommodate a variety of home theater setups.

• 7.1Ch: The Sony STR-AN1000 provides 7.1ch surround in your main listening area with dedicated Surround Back speakers. Allows you to enjoy high-fidelity reproduction of Dolby Digital TrueHD, Dolby Digital Plus, and DTS-HD (High-Resolution Audio or Master Audio).
• 5.1.2Ch: A Dolby Atmos 5.1.2ch speaker configuration is based upon a traditional 5.1ch speaker layout (Front, Center, Surround) complemented by two Front Height, Overhead, or Dolby Atmos-enabled speakers. In this configuration, the receiver's Surround Back/Height amplifier channels are used to power the Dolby Atmos speaker channels.
• 5.1Ch + Zone 3: The receiver is able to power a 5.1ch speaker system (Front, Center, Surround) in the main listening area, while powering Zone 3 speakers in a second room. Surround Back or Height speakers are not available.
• 5.1Ch Bi-Amp: The Surround Back/Height speaker channels can be reassigned and used along with the Front channels to bi-amp the front speakers, providing improved bass & treble performance. When bi-amping the front speakers the receiver is limited to a 5.1ch speaker system in the main room (no Surround Back or Height speakers).
• 5.1Ch + Front B: With a 5.1ch home theater setup in the main listening room, a  second pair of front speakers for dedicated 2ch music playback can be powered by the receiver's Surround Back/Height amplifier channels.

High-Performance 32-Bit DAC: The Sony STR-AN1000 employs a 32-bit DAC (digital-to-analog converter) with an improved power supply that uses a low-noise IC to ensure that hi-fidelity performance is achieved. A new DAC analog output filter circuit was designed utilizing a JFET and op-amp improvement in noise floor. The phase rotation was shifted to a higher frequency, expanding the bandwidth and improving sound clarity for wide-bandwidth sources like high-resolution audio.

Digital Cinema Auto Calibration IX: D.C.A.C. IX, the latest auto-calibration technology developed by Sony, can correct the distance, angle, sound pressure and frequency response of each speaker by measuring the speaker placement in 3D using the supplied calibration microphone that plugs into the front of the unit. This works alongside Auto Phase Matching, which aligns the phase of different speakers, so your system can compensate for challenging speaker placement, delay or phase shift and produce a fully immersive surround sound experience.

360 Spatial Sound Mapping: The STR-AN1000 AV receiver features Sony's revolutionary 360 Spatial Sound Mapping technology to create a truly unique and incredibly immersive cinematic experience in the home. Sony's exclusive 360 Spatial Sound Mapping technology creates a truly immersive soundfield that adapts to each unique environment, creating an audio experience that feels like a movie theater or concert hall. It virtually places multiple phantom speakers around the room to create a wider listening space for a more authentic cinematic experience that you can hear and feel. By utilizing the positional information measured by Sony's Digital Cinema Auto Calibration IX (D.C.A.C. IX), multiple phantom speakers are generated all around the room so you can experience every breath, step, and word of a movie as if inside the film.

Compatible Digital Audio Formats: The Sony STR-AN1000 employs a powerful DSP (digital signal processor) that supports the latest 3D surround sound formats, ensuring the highest accuracy in signal decoding. The AV receiver supports the following stereo & multichannel digital audio formats through its HDMI jacks and optical/coax digital inputs.

Immersive Surround Sound: The Sony STR-AN1000 AV receiver goes beyond regular surround with the latest immersive surround sound formats from Dolby Atmos and DTS:X. The Sony AV receiver offers 7-channels of amplification with support for up to a 7.1 or 5.1.2 channel processing.

• Dolby Atmos: Dolby Atmos surround sound technology dispenses with channel-based coding in favor of more advanced object-based coding, giving the soundtrack designer the ability to precisely place sounds anywhere in the 3-dimensional space. Now you can enjoy this same award-winning technology at home with the STR-AN1000 that lets you configure a Dolby Atmos speaker system for the ultimate home theater experience.
  • Dolby Surround: Dolby Surround offers an enhanced cinema experience to your 2ch or multichannel movie soundtracks using your existing 5.1ch, 7.1ch, or Dolby Atmos speaker setup. Dolby Surround enhances audio definition by improving the spatial dimension and overall audio definition of movie soundtracks. It does this by using four distinct surround zones that provide greater control over the exact placement of each detail in a movie sound track, so audio can be matched more accurately to the video on screen; this means more depth and greater realism for your movies. As a result, individual sounds are clearer and more distinct. It also improves the surround sound experience across the entire theater by widening the listening "sweet spot".
  • Dolby Atmos Height Virtualization: Dolby Atmos Height Virtualization provides immersive audio without height-channel or overhead speakers, creating virtual height effects in a 5.1ch, 7.1ch or 2.1ch speaker arrangement. Dolby Atmos Height Virtualization applies carefully designed "height-cue" filters to the overhead audio components of your content's soundtrack before they are mixed into your loudspeakers to create the sensation of sound above you.
• DTS:X: The latest immersive surround sound system, DTS:X features object-based audio coding that lets the soundtrack designer place sonic elements anywhere in the 3D acoustic soundspace, and provides for overhead speakers to deliver a stunning surround sound experience. Along with DTS:X decoding, the STR-AN1000 features DTS-HD Master Audio decoding and other DTS audio technologies.
  • DTS Neural:X: DTS Neural:X is an advanced spatial remapping technology from DTS, which provides a fully immersive output for all types of source content; this includes DTS bitstreams and non-encoded (PCM) data. DTS Neural:X delivers a thrilling sense of immersive sound to your speaker layout regardless of the original source format.
  • DTS Virtual:X: DTS Virtual:X bridges the gap between DTS:X and the reality of so many consumers' homes, allowing you to enjoy multi-dimensional sound regardless of room size, layout, or speaker configuration. DTS Virtual:X can be used with any content (from 2ch to 7.1.4ch soundtracks), while delivering virtual height & virtual surround processing based on psychoacoustics (not reflective surfaces).

Direct Stream Digital (DSD): Enjoy studio-quality sound thanks to the Direct Stream Digital (DSD) audio codec; designed specifically for High-Resolution Audio. This 1-bit format utilizes a stream of very high frequency 1s and 0s to recreate audio waveforms at a higher resolution than conventional codecs. The result is clearer, crisper, High-Resolution Audio quality. The STR-AN1000 supports DSD 2.8MHz (2ch) decoding via DLNA, as well as DSD 2.8MHz (up to 5.1ch) decoding thru HDMI.

Audio Enhancements: The Sony STR-AN1000 AV receiver offers a variety of audio enhancements to help tailor the sound to your listening application.

• Direct Modes: The Sony AV receiver offers two Direct audio modes for higher fidelity sound. The receiver's Analog Direct mode outputs audio from only the front left and right speakers without any tone or DSP processing; only the volume and front speaker balance adjustments are active. To further enhance sound quality, the receiver's Pure Direct mode not only bypasses the tone and DSP processing, but also turns off the front-panel display to suppress any noise which may affect sound quality.
• DSEE Ultimate: Using AI (Artificial Intelligence), DSEE (Digital Sound Enhancement Engine) Ultimate upscales compressed digital music files to near high-resolution sound quality in real time. Dynamically recognizing instrumentation, musical genres, and individual elements of each song, such as vocals or interludes, DSEE Extreme restores the high-range sound lost in compression for a richer, more complete listening experience. DSEE Ultimate only works on 2ch sound sources with a sampling frequency of 44.1 kHz or 48 kHz.
• Center & Dialog Controls: The DTS:X Dialog Control function is a function which adjusts the dialog levels during playback of the DTS:X stream. This function enables you to increase the dialog levels in contrast with the background sound and hear dialog easily even under noisy circumstances. By using the Center Lift Up and a pair of front high speakers, you can lift up the sounds of the center speaker to an appropriate height on the screen, allowing you to enjoy a more natural representation.
• In-Ceiling Speaker Mode: This feature will virtually relocate the front and center in-ceiling speakers down to around the screen. That way, you'll hear the actors' voices coming from the screen instead of the ceiling. This mode also makes music sound more natural in a room with in-ceiling speakers.

Stereo Modes: The STR-AN1000 provides a 2-channel stereo mode, multichannel stereo mode, and a headphone 2ch mode.

• 2-Channel Stereo: Plays back 2-channel audio signals without adding any surround effect. Monaural and multi-channel audio signals are output after being converted into a 2-channel signal.
• Multi-Channel Stereo: When 2-channel or monaural audio signals are input, the receiver outputs sound from all speakers without adding any surround effect. When multi-channel audio signals are input, sound may not be output from certain speakers depending on the speaker settings or playback content.
• Headphone 2ch: Plays back 2-channel audio signals without adding any surround effect. Sound from monaural and multichannel audio signals are output after being converted into a 2-channel signal (this mode is automatically selected when listening to headphones).

eARC (Enhanced Audio Return Channel): This feature of the AV receiver's main HDMI monitor output allows audio to be sent from your compatible TV to the receiver through the same HDMI cable already being used to send audio and video to your TV. This eliminates the need for extra cables connected to your television. eARC (Enhanced Audio Return Channel) will support uncompressed audio formats like Dolby TrueHD, Dolby Atmos, DTS:X, & DTS HD Master Audio - where as the previous ARC (Audio Return Channel) was limited to only Dolby Digital, Dolby Digital Plus, DTS, DTS HD, and PCM.

Wireless Rear Speaker & Sub Compatibility: The Sony STR-AN1000 AVR receiver even supports wireless rear speaker and wireless subwoofer connectivity for a more convenient immersive cinematic experience with not speaker wire or subwoofer cables to run. You'll be able to wirelessly connect Sony's optional wireless rear speakers ((SA-RS3S or SA-RS5) and/or optional wireless powered subwoofer (SA-SW3 or SA-SW5) - all sold separately. You can use the wireless rear speakers as Surrounds or Surrounds Back (but not both).

S-Center Out (Acoustic Center Sync): The STR-AN1000 features a S-Center Out (3.5mm) that connects to select Sony Bravia XR TVs to enable a unique Acoustic Center Sync feature. Acoustic Sync combines audio from the TV with the audio from the AV receiver's center speaker to create an incredible sound-from-screen experience. Dialog will appear to come directly from the characters on the screen creating a much more immersive experience. Acoustic Center Sync only works with select 2021-up Sony Bravia TVs - including Z9K series, A95K series, A90K series, A80K series, A75K series, X95K series, X90K series, Z9J series, A90J series, A80J series, and X95J series (newer compatible models may be released).

Binding Post Speaker Terminals: The Sony STR-AN1000 AV receiver is equipped with binding post terminals for all speaker channels. The binding post terminals will accept bare wire (up to 10 AWG), pin connectors, and banana plugs (single only). Use speakers with a 6- to 16-ohm impedance.

Dual Sub Outputs: The Sony AV receiver is outfitted with dual subwoofer preamp outputs to connect two powered subs (the subwoofer outputs share the same input signal and are not discrete).

Headphone Jack: The Sony STR-AN1000 is equipped with a front-panel 1/4" headphone jack. When headphones are plugged into the headphone jack, all of the AV receiver's speaker outputs and line outputs are muted.

Video Section

HDMI 2.1: Featuring six HDMI inputs and two HDMI outputs, the Sony STR-AN1000 incorporates an advanced video section that features some of the latest HDMI 2.1 specifications; including support for 8K/60Hz and 4K/120 Hz video pass-through (up to 40Gbps), HDCP 2.3 compatibility, BT.2020 Wide Color Gamut, and 4:4:4 Pure Color sub-sampling. The Sony AV receiver enables you to enjoy stunning picture quality and clarity. Only the Sony AV receiver's HDMI 5 and 6 inputs, as well a both HDMI outputs support 4K/120Hz and 8K/60Hz.

• 4K/120 Hz + 8K/60Hz Pass-Through: With stunning 4K (3840x2160) and 8K (7680 x 4320) UHD resolutions detail is strikingly sharper, giving you a more lifelike, compelling, and engaging movie or gaming experience. The greater resolution offered by 4K enables more detailed, more realistic, more engaging images. With greater than 4x the resolution of Full HD, the gaps between pixels (called the screen door effect) and visible pixels (called jaggies) are dramatically reduced. 8K resolution allows for an even higher density PPI (pixels per inch) to achieve greater detail and more precise color and shadow gradation. The result is the most immersive, hyper-real,and breathtaking video experience.
• HDCP 2.3 Compliant: All of the AV receiver's HDMI inputs and outputs support HDCP 2.3, which fully complies with the latest copyright protection standard for 4K/HDR video transmission.
• 4:4:4 Color Subsampling: The receiver's HDMI jacks support RGB, YCbCr 4:4:4 color subsampling for more vibrant and lifelike images, as well as YCbCr 4:2:2 and YCbCr 4:2:0 color subsampling. With 4:4:4, luminance (brightness) and chroma (color) are sampled at the same rate, resulting in an RGB color palette as big as the video sampling rate for a video image with more total colors, plus greater color accuracy and detail.
• Wide Color Gamut (BT.2020): The BT.2020 color standard delivers a much wider color gamut and represents about 75% of the total visual color spectrum, while the current Rec. 709 color standard selected as the color space for HDTVs and early generation 4K Ultra HDTVs covers only 35% of the total visual color spectrum.

HDMI Video Upscaling: The Sony STR-AN1000 is equipped with an 8K video upscaling function that allows HD 1080p and Ultra-HD 4K video sources connected to any of the AV receiver's HDMI inputs to be output via the receiver's HDMI monitor output at 8K (7680×4320) resolution. HD 1080p video sources can also be upscaled to 4K (384x2160). The receiver does not offer any other resolution upscaling and does not support analog-to-HDMI upconversion. The HDMI Zone 2 output does not support upscaling.

Dual HDMI Outputs: There are two HDMI 2.1 outputs that feed audio/video signals to up to two TVs. You can toggle or simultaneously output the same video between two displays, such as two televisions or a television plus a projector. Or you can setup the second HDMI output as a Zone 2 output, so you can view a different audio/video source in another room of your home (video is output at the resolution supported by both TVs).

• When the same HDMI source is played back, the receiver can support 8K video in the Main Zone and Zone 2. When different HDMI sources are played back, the Main Zone can still support 8K, but Zone 2 is limited to 4K.
• If you connect TVs that have different resolutions in the Main Zone and HDMI Zone 2, but select the same HDMI input for both zones, the video signals output to each TV are limited to the lower resolution TV.
• Dolby Vision content is output in HDR10 or SDR when outputting the same video source to both HDMI outputs.

HDR (High Dynamic Range): High Dynamic Sony STR-AN1000 supports a variety of HDR video formats: High Dynamic Range (HDR) video is a huge step forward in 4K Ultra HD picture quality made possible by a new end-to-end process of creating, distributing and displaying video content. High Dynamic Range (HDR) reproduces a wider range of brightness levels than conventional video, which brings a deeper contrast to the screen, greater color intensity without being oversaturated, and incredible detail in low-light images. Watching movies and TV shows mastered in HDR will give you a more vivid viewing experience filled with brilliant color and dramatic contrast.

• HDR10: HDR10 is an open standard and currently the most popular HDR format on the market. It uses static metadata at the start of a movie to tell the receiver and your TV that the video content is encoded using HDR.
• Hybrid-Log Gamma: HLG (Hybrid-Log Gamma) is primarily designed for live video feed and over-the-air broadcasts. It uses no pre-encoded metadata and is backwards compatible with SDR. HLG's native compatibility allows much of today's existing SDR infrastructure to be re-used for HDR in the future.
• Dolby Vision: Unlike HDR 10 which contains static metadata and HLG which uses no metadata, Dolby Vision uses dynamic metadata technology which sets individual color and brightness levels for each and every scene. Dolby works directly with filmmakers at major Hollywood studios to create superior HDR video masters of blockbuster movies.

IMAX Enhanced Technology: Get the most premium at-home entertainment experience with IMAX Enhanced; the latest technology program from IMAX that sets a new standard for image, sound, scale and content quality. This new certification and licensing program combines IMAX digitally re-mastered 4K HDR content and DTS audio technologies to offer a new level of quality in immersive sight and sound experiences in the home. IMAX Enhanced lets you experience premium content digitally remastered by IMAX, so you can watch the highest-quality 4K movies with immersive audio delivered by DTS. Not only will IMAX Enhanced content look and sound amazing, but other audio/video content will also look and sound great too.

• Remastered 4K/HDR Video: It utilizes a sophisticated, advanced algorithm designed to produce the highest-quality, sharpest 4K HDR images. This advanced process accurately reduces noise and grain under the filmmaker's guidance to best optimize the content for a much higher quality, higher brightness 4K HDR display format. Select IMAX Enhanced titles that were shot with IMAX cameras or specially formatted for IMAX theaters will also include an expanded aspect ratio for the film's home release to show your more picture on your TV. IMAX Enhanced certified TVs must support dynamic HDR, as well as specific calibration, resolution, color, brightness, contrast, and scale of image capabilities.
• Remastered DTS:X Audio: IMAX and DTS will also partner with award-winning Hollywood sound mixers to use a special variant of its DTS:X codec technology integrated in home audio equipment to deliver an IMAX signature sound experience that is dynamic, immersive, theatrical, and powerful. IMAX Enhanced supports both 5.1 and 11.1 formats, but the recommended speaker layout for an IMAX Enhanced system is 7.2.4 with seven horizontal speakers, two subwoofers and four height speakers; 5.1.4 is the minimum layout for IMAX Enhanced. However, due to various constraints you may opt to install only a 5.1ch speaker system. In such cases, DTS Virtual:X is required to properly render and remap audio to the available speakers.
• Available IMAX Content: IMAX is working with its global studio and other content partners to build a steady stream of IMAX Enhanced versions of movies and other programming using the newest, proprietary post-production process developed by IMAX. IMAX will be announcing and releasing IMAX Enhanced versions of a wide range of films both for 4K/HDR streaming and Ultra HD Blu-ray Discs.

Color Technologies: The Sony STR-AN1000 incorporates Triluminos Color & Deep Color technologies for perfect color and smooth gradation.

• Triluminos Color: The Sony receiver incorporates Sony's Triluminos Color technology to create a heightened sense of depth and incredibly true, natural shades of colors. Hard-to-reproduce reds, aqua blues and emerald greens are displayed beautifully, so landscapes and seascapes look more vivid. Faces look better too, with natural skin tones.
• Deep Color: The Sony receiver also supports Deep Color which allows the color depth of video signals passing through HDMI to be raised. The number of colors that could be expressed by 1 pixel was 24 bits (16,777,216 colors) with a standard HDMI jack. However, the number of colors which can be expressed by 1 pixel is 36 bits with a Deep Color enabled HDMI jack. Since the gradation of the depth of a color can be expressed more finely with more bits, continuous color changes can be more smoothly expressed.

Enhanced Gaming: The Sony STR-AN1000 supports enhanced gaming features such as 4K/120Hz, Variable Refresh Rate (VRR), and Auto Low Latency Mode (ALLM) in for smoother and clearer movement for responsive gameplay. These features are only supported on the AV receiver's HDMI 5 and 6 inputs, as well a both HDMI outputs.

• 4K/120Hz: Support for 4K@120Hz produces smoother and clearer motion images at 120 frames-per-second (fps) for better rendering of fast-action content such as sports, action movies, and games.
• ALLM: ALLM (Auto Low Latency Mode) lets the AV receiver and your TV automatically recognize when a gaming console or gaming PC is connected and in use.
• VRR: VRR (Variable Refresh Rate) allows the AV receiver and TV to adapt to certain Game console's frame rate, giving you the real-time, lower-lag gaming speed you need for a more enjoyable gaming experience.

Other HDMI Features: Other HDMI features of the Sony STR-AN1000 AV receiver include HDMI Standby Pass-Through, AV Sync, and 3D video.

• HDMI Standby Pass-Through: The HDMI Standby Pass-Through feature conveniently allows you to access all your HDMI connected devices without having to power on the receiver.
• A/V Sync: The audio output can be delayed so that the time gap between the audio output and the visual display is minimized. This is especially helpful when you are using a large LCD or plasma TV or a projection TV. When activated, the delay can be adjusted from 0-300 ms or set to Auto.
• 3D-Ready: The Sony AV receiver supports 3D video pass-through (720p/1080p only) from connected 3D-compatible Blu-ray, games and broadcast devices to 3D-compatible HDTVs (all 3D components must be connected via HDMI). Special eyewear will be required for viewing 3D content.

Composite Video: The Sony AV receiver offers two composite video inputs and one composite video monitor output that support up to 480i video. The composite video inputs must be out through the receiver's composite video monitor output (there is no HDMI upconversion).

Network & Tuner Functions

Wired or Wireless Network Connection: The Sony STR-AN1000 features a rear-panel Ethernet (RJ-45) port and dual-band 2.4/5GHZ WiFi (802.11ac) that allow you to connect the AV receiver to your home network via a hardwired or wireless connection. By connecting the AV receiver to your home network you are able to stream select online music services via Chromecast Built-in, use Spotify Connect, enjoy AirPlay 2, and listen to audio files stored on your window-based PC through your home audio system. The Sony AV receiver offers an on-screen GUI to configure the receiver to your home's network. The following system environment is required to use the network function of this receiver.

• Broadband Line Connection: A Broadband line connection to the Internet is required in order to listen to select online music services and to use the software update function of the receiver.
• Modem: This is the device that is connected to the broadband line to communicate with the Internet. Some of these devices are integrated with the router.
• Router: Use a wired router compatible with 100 Mbps or greater transmission speed to enjoy content on your home network. You'll need a 802.11 a/b/g/n/ac; 2.4/5GHz compatible wireless router for WiFi connection.
• LAN Cable (CAT5): A LAN cable (CAT5) is required for hardwired connection.

Spotify Connect: The integration of Spotify Connect will enable Spotify Premium users to instantly select and wirelessly stream music to the Sony AV receiver from within the Spotify app (Apple iOS or Android). Spotify is a digital music service that gives you on-demand access to one of the largest music libraries in the world (over 15 million tracks and counting). Spotify makes it easier than ever to discover, manage, and share music with your friends. You can browse music by artist, album, track, or most popular; and create your own music library with customized playlists.

Chromecast Built-In: Chromecast built-in lets you instantly stream a variety of music apps from your compatible Apple iOS or Android OS mobile device to the Sony AV receiver. Chromecast built-in works over WiFi and allows you to connect more than one device at a time to the AV receiver, as well as control what's playing from anywhere in the house with your compatible mobile device.

• Simple-to-Use: Simply tap the Cast button from a Chromecast Built-in compatible music app to start streaming to the Sony AV receiver. You can search, browse, play, skip, and turn up the volume directly from the music apps you know and love on your compatible phone, tablet or laptop. While you cast your music, you can still use your phone to answer a phone call, play a game, send a text, and even leave the room, all without interrupting what's playing on the receiver's speaker system.
• Supported Content: Chromecast built-in offers Internet Radio apps like TuneIn & iHeart Radio; plus online music service apps like Pandora, Spotify (requires Premium subscription), Tidal, Google Play Music, and more.  Click here for a complete list of compatible apps. You can even wirelessly stream exactly what's playing on your Android phone or tablet through the Sony AV receiver. Or, if you're on your laptop or computer, you can also cast any music streaming website through the Chrome browser.

360 Reality Audio: Immerse yourself in sound all around you with 360 Reality Audio; as real as if you are there at a live concert or with the artist recording in a studio - music has never been so immersive and so real. Because 360 Reality Audio tracks incorporate three-dimensional sound location data, they're able to deliver the ultimate in ambient room-filling sound. You'll need to subscribe to a 360 Reality Audio music streaming service (including Amazon Music, Tidal, Deezer, or Nugs.Net) to enjoy this new music experience. You'll also need to download the Sony Music Center App (for Apple iOS 11.0+ and Android OS 5.0+) onto your Apple iOS or Android device, as well as connect your compatible mobile device and the Sony ES AV receiver to the same WiFi network.

DLNA Certified: The Sony STR-AN1000 is DLNA certified. By connecting the Sony STR-AN1000 to your home's network, you can listen to variety of compressed & hi-res music files and view still-image files on your Windows  PC (w/ Windows Media Player 11 or 12) or a DLNA (ver.1.5) compatible media server through the receiver and your home entertainment system. It can recognize up to a total of 999 network files/folders. Compatible music & photo files include -

• Hi-Res: FLAC (44.1-192k; 16/24-bit), AIFF (32-192kHz; 16/24-bit), WAV (8-48kHz; 16/24-bit), and DSD (2.8MHz; 1-bit)
• Lossless: ALAC (32-96kHz; 16/24-bit)
• Compressed: MP3 (32-320kbps), WMA (48-192kbps), AAC (48-320kbps)

Roon Tested: Roon is a feature rich music library and playback application that compiles all the music files available to your network and makes them easily available to play on the Sony receiver and any other Roon enabled audio devices. Roon manages digital music files (including FLAC, WAV, AIFF, ALAC, and DSD) collected on hard drives and networked storage devices. It can also integrate your iTunes library, and optionally merge with the Tidal and Qobuz music streaming services. Roon software can be installed on your Windows or Mac computer, while a Roon Remote app is available for Apple iOS 11.0+ and Android OS 5.0+). When you access the Roon software or remote app, it will display your complete audio library together with its metadata and artwork along with the available Sony receiver and other Roon enabled devices. Simply select the music you wish to play and the Sony AV receiver or Roon device in which you want to hear it on.

FM Tuner: The STR-AN1000 offers a built-in FM tuner with 30 station presets. In addition to preset and auto tuning, stations can be tuned directly by frequency from the included IR remote control. Each preset station can be given an 8 character name.

AirPlay/Bluetooth/USB Integration

AirPlay 2 with Siri: AirPlay 2 is an advanced and easy-to-use wireless multiroom audio platform for iTunes, Apple Music, and other compatible Apple iOS apps. With AirPlay 2 you can play any audio from your Apple iOS device (running iOS 11.4 or later) or Mac computer (running OS X 10.13.2) on the Sony AV receiver and other compatible AirPlay 2 speakers throughout your home. You can choose to play audio in one room, play the same audio in grouped rooms, or play the same audio in every room. If you are an Apple Music subscriber, you can even play different music in different rooms (you can control and group directly from Apple's Music App and Home app on your Apple iOS device). You'll be able to ask Siri-enabled devices (like your Apple iPhone, iPad, or Watch) to control playback of your Apple Music content on the Sony AV receiver. With AirPlay 2, you also get to see song/artist information and album art via the receiver's on-screen menu (via HDMI). You can even watch videos and movies from YouTube and Netflix on your compatible Apple iOS device or Mac computer with perfectly synced audio on the Sony AV receiver.

Built-in Bluetooth: The Sony STR-AN1000 AV receiver features built-in Bluetooth 5.0 for wireless audio streaming (A2DP) and control (AVRCP). The STR-AN1000 can act as a Bluetooth receiver in order to wirelessly stream music from an audio device, or a Bluetooth transmitter in order to wirelessly stream music to a set of BT-enabled headphones. You pair up to 10 Bluetooth devices with the Sony ES AV receiver, but only one can be connected and used at a time. Once paired, the AV receiver will automatically re-connect to your device or headphone when within range. The STR-AN1000 has an extended Bluetooth wireless range of 98.4'.

• Receiver Mode: In receiver mode, you'll be able to wirelessly stream stored music and music apps from your Bluetooth source device to the Sony receiver. You'll also be able to control basic playback functions (Play/Pause, FF/RW, Skip) using the receiver's remote control. Song/artist information is displayed on the receiver's on-screen menu (via HDMI).  In addition to support for Bluetooth standard SBC codec and Apple's AAC codec, the receiver also supports Sony's newest LDAC codec. LDAC is a new audio technology from Sony that allows you to enjoy high quality wireless audio via Bluetooth. With 3x the data transmitted (compared to regular Bluetooth), LDAC provides an enhanced wireless listening experience for all your music.
• Transmitter Mode: In Transmitter mode, you can enjoy listening to audio from the AV receiver's built-in FM tuner, network streaming content, online music services from Chromecast built-in, as well as connected sources through a set of Bluetooth headphones. The receiver's connected speakers are muted when transmitting audio wirelessly over Bluetooth to a set of headphones.

Front-Panel USB Port: The Sony AV receiver is equipped with a front-panel USB (type-A) port that allows you to enjoy a variety of compressed & hi-res music files and still-image files from a USB mass storage class memory device, such as a USB thumbdrive or portable digital audio player. The receiver can recognize up to 998 total files/folders. You can use the receiver's on-screen menu (via HDMI) and remote control to navigate your stored music or photo files on your connected USB memory device. USB portable devices that can be charged via USB will be charged when plugged into the AV receiver's USB port (5V/1A); even in standby mode. Compatible music & photo files include -

• Hi-Res: FLAC (44.1-192k; 16/24-bit), AIFF (32-192kHz; 16/24-bit), WAV (8-48kHz; 16/24-bit), and DSD (2.8MHz; 1-bit)
• Lossless: ALAC (32-96kHz; 16/24-bit)
• Compressed: MP3 (32-320kbps), WMA (48-192kbps), AAC (48-320kbps)

Multiroom Audio/Video Playback

HDMI Zone 2: The Sony STR-AN1000 AV receiver provides a HDMI Zone 2 output, so the same or two different HDMI audio/video input feeds can be sent to two different displays at the same time directly from the receiver. The HDMI Zone 2 will also output 2ch audio signals (multi-channel audio is downmixed) for the HDMI input source selected, while maintaining multichannel audio in the main zone (if you select the same HDMI source in the Main Zone and the HDMI Zone, then both zones will be limited to 2ch). If you connect TVs that have different resolutions in the Main Zone and HDMI Zone 2, but select the same HDMI input for both zones, the video signals output to each TV are limited to the lower resolution TV.

• Compatible Sources: Only the AV receiver's HDMI input sources are supported by the HDMI Zone 2 output function. When the same HDMI source is played back, the receiver can support 8K video in the Main Zone and Zone 2. When different HDMI sources are played back, the Main Zone can still support 8K, but Zone 2 is limited to 4K.
• Incompatible Sources: The FM tuner, Analog audio/video inputs, USB, Bluetooth, Network, and Optical/Coaxial sources are not supported by the receiver's HDMI Zone 2 output.

Zone 3 (Audio Only): Zone 3 features line-level and speaker-level outputs. Zone 3 can be powered by a separate amplifier (keeping 7.1ch playback in your main room) or by the STR-AN1000's built-in amplifier (limiting the main room to 5.1ch). The volume of Zone 3 can be controlled by the Sony AV receiver using either configuration or from your add-on integrated amplifier when using the line-output.

• Compatible Sources: Only the FM tuner and analog input sources are supported in Zone 3 via line-level or speaker-level output. Different FM stations cannot be played back in the Main Zone and Zone 3.
• Incompatible Sources: Analog & HDMI video input sources, as well as DSD music files cannot be output to Zone 3. HDMI audio, Optical/Coaxial digital, USB, Network and Bluetooth audio source cannot be output to Zone 3.

Source Mode: If you want to simply play the same analog audio input source or the FM tuner in the Main Zone and Zone 3, you can simply select which analog input or FM station for the Main Zone and then select the "Source" input for Zone 3 to replicate the same audio signal.

• Compatible Sources: Only the FM tuner and analog audio input sources are supported in Source mode.
• Incompatible Sources: HDMI, Optical/Coaxial digital, USB, Network, and Bluetooth source inputs cannot be utilized in Source Mode.

Chromecast Built-in Multiroom: Using the Google Home app for Apple iOS 14.0+ and Android OS 8.0.+, you can sync multiple Chromecast built-in devices and speakers in multiple rooms of your home to play the same song from a compatible Chromecast music app throughout your house at the same time. Friends and family can even use their own Chromecast compatible phone or tablet to cast music to your system by connecting to your home's WiFi network.

Works With Sonos: Using the Sonos Port (sold separately), the Sony AV receiver integrates seamlessly into any new or existing Sonos wireless home audio system. With simple setup, the Sonos app (for Apple iOS and Android OS) can power on the receiver, designate an input source, and control the volume.

Remote, App, & Voice Control

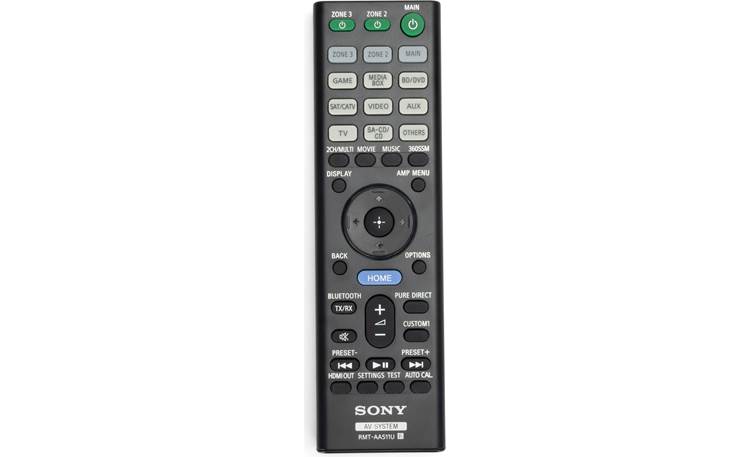

IR Remote: The supplied remote is pre-coded to control the Sony STR-AN1000 AV receiver, Sony TVs, Sony CD players, Sony DVD players, and Sony Blu-ray disc players.

Bravia Sync (HDMI CEC): Sony's Bravia Sync feature allows you to easily manage Bravia Sync compatible Sony televisions and other Bravia Sync compatible Sony audio and video components, plus other brands of HDMI CEC compatible gear that are connected via HDMI with a single remote. By connecting audio/video components that are compatible with the Bravia Sync or HDMI CEC function using an HDMI cable, operation is simplified in the following ways.

• One-Touch-Play: When you play content on a device (such as a Blu-ray player) connected to the receiver; the receiver and the TV are turned on automatically, the input of the receiver is switched to the input of the device being played, and sound is output from the speakers connected to the receiver.
• System Audio Control: If you turn on the receiver while you are watching a connected TV, the TV sound will be output from the speakers connected to the receiver. The volume of the receiver can be adjusted using the TV remote control. When you turn on the TV, the receiver is turned on automatically and the TV sound is output from the speakers connected to the receiver.
• System Power Off: You can automatically turn off the receiver and any device connected to the HDMI jack when you turn off your TV.

Music Center App: The Sony Music Center App (for Apple iOS 11.0+ and Android OS 5.0+) lets you control and operate the Sony AV receiver from your compatible smartphone or tablet device via a wireless WiFi network connection. From the Music Center app, you can select input sources and customize sound settings of the AV receiver. You'll also be able to browse music stored on your Network devices (such as your computer or NAS drive) from the Music Center app. In addition, you can access stored music and other apps on your compatible Apple iOS or Android OS device using the Music Center app. The Music Center app will even display your music's song/artist information and album art.

Google Home App: The Google Home App (for Apple iOS 14.0+ or Android OS 8.0+) can be used to configure the Sony AV receiver's wireless WiFi connection, setup Chromecast built-in, and enable voice control with a Google Assistant enabled speaker (sold separately - see Accessories Tab).

Google Assistant Voice Control: With a Google Assistant enabled smart speaker (sold separately - see Accessories Tab) you can use your voice to control select Chromecast built-in functions of the Sony AV receiver. With a simple voice command, you can play music from Chromecast built-in compatible music services by artist, song, genre, album, playlist, mood or activity. You can also turn up the volume, skip to the next track, or stop the music - all without lifting a finger. The Google Home App (for Apple iOS 14.0+ or Android OS 8.0+) must be used to setup Google Home voice control.

IR In/Out: The Sony STR-AN1000 is equipped with one IR input (3.5mm) and one IR output (3.5mm) enabling you to operate the AV receiver and a connected AV component installed behind an cabinet door.

Convenience Features

On-Screen GUI (Graphical User Interface): You can display the receiver's on-screen GUI on your HDMI connected TV screen and select the function you want to use from the on-screen menu using the included IR remote control. You can easily access and manage your input devices and settings with this intuitive on-screen menu. The STR-AN1000 on-screen GUI will take you through everything you need to create and control your home theater experience. The on-screen GUI is only available from the receiver's main HDMI output or Zone 2 HDMI out (not composite video output).

Bravia Quick Settings Menu: The Sony AV receiver also integrates seamlessly with select Sony Bravia TVs and their Quick Settings menu (via HDMI-CEC), allowing you to change features such as soundfield of the amplifier just by using the TV remote. You can also use the TV remote to control the volume of the receiver, ensuring quick and easy control without requiring multiple remotes. The Bravia Quick Settings feature only works with select 2021-up Sony Bravia TVs - including the Z9K series, A95K series, A90K series, A80K series, A75K series, X95K series, X90K series, X85K series, X80K series, Z9J series, A90J series, A80J series, X95J series, X90J series, X85J series, X80J series (new compatible models may be released).

Custom Preset: The Sony AV receiver features a Custom Preset button on the remote control to make operating the receiver easier. Pressing the Custom Preset button will automatically launch a number of operations that initiate play of the source controlled by that button; such as powering on the receiver, switching to the appropriate source input, and recalling the selected DSP surround mode.

Input Modes & Naming: When you connect components to both digital and analog audio input jacks on the receiver, you can fix the audio input mode to either of them, or switch from one to the other, depending on the type of material you intend to watch. You can enter a name of up to 8 characters for each of the receiver's inputs (except Tuner) and display the name on its display. This is convenient for labeling the jacks with the names of your connected components

Auto Standby & Sleep Timer: Auto Standby lets you set the receiver switch to standby mode automatically after 20 minutes when you do not operate the receiver or when there is no signal input to the receiver. You can also set the unit so that it automatically turns on by operating a Bluetooth or Network connected mobile device even while the receiver is in standby mode. In addition, the unit can be set to automatically turn off after 30, 60, 90, or 120 minutes.

Software Updates: By downloading the latest version of software from Sony, you can take advantage of the newest functions. The receiver accesses the Sony server to update the software through its wired or wireless network connection. Visit the Sony eSupport website for the latest software updates.
