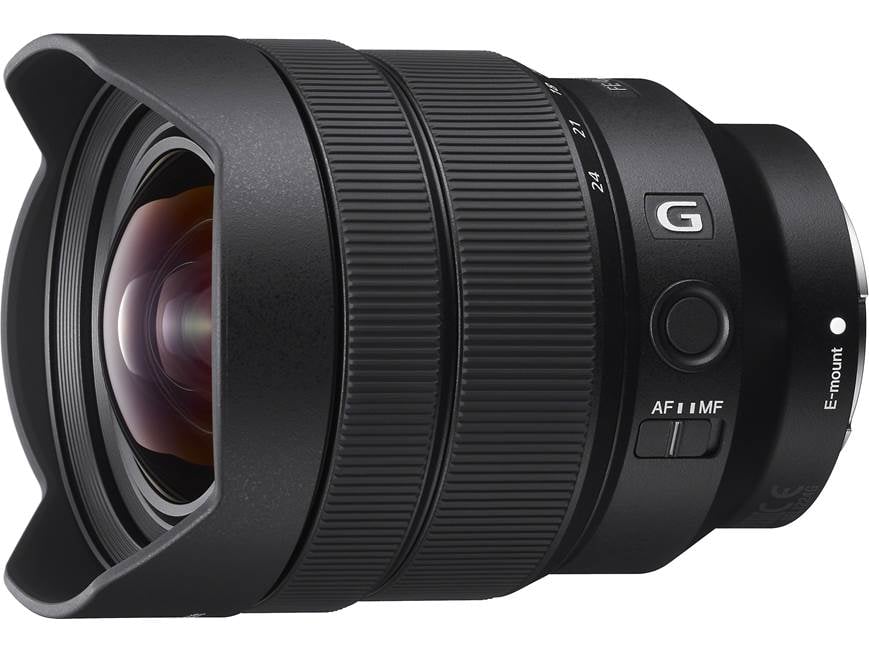

About the Sony FE 12-24mm f/4 G
Product highlights:
- lens type: E-mount full frame (FE)
- compatible with Sony E-mount mirrorless cameras
- effective focal length:
- 12-24mm with full-frame sensor cameras
- 18-36mm with APS-C sensor cameras
- constant f/4 maximum aperture for consistent low-light performance throughout zoom range
- Nano AR anti-reflective coating for effective reduction of lens flare and ghosting
- dust- and moisture-resistant
- built-in petal-type lens hood
- 4 aspherical lens elements, 3 ED (extra-low dispersion) elements, and 1 Super ED element for better sharpness and contrast
- linear motor for precise focus control
- inner focus mechanism maintains overall lens length during focusing for greater consistency and faster performance
- focus hold button for added control
- minimum focus distance: 11"
- minimum aperture: f/22
- lens construction: 17 elements in 13 groups
- 7-blade circular aperture for natural rendering of out-of-focus background elements
- includes front and rear lens caps and lens case
- lens is 3-1/2" in diameter and 4-5/8" long
- weight: 20 oz.
- warranty: 1 year
- MFR # SEL1224G
- Item # 158SEL1224
What's in the box:
Sony FE 12-24mm f/4 G owner's manual
If you need assistance accessing this owner's manual, please give us a call.- FE 12-24mm F4 G zoom lens
- Front lens cap (installed)
- Rear lens cap (installed)
- Soft lens case
- Operating Instructions
- Precautions Before Using
- For Customers Using an A-series camera
- Limited Warranty
- European Guarantee Information Document
More details on the Sony FE 12-24mm f/4 G
Product Research
Features
Overview: The Sony FE 12-24mm f/4 G Master lens is a full frame (35mm) ultra-wide-angle zoom lens that is ideal for landscape and cityscape photography, as well as architecture and other wide-angle subjects. G Master lenses feature the most advanced optical technology to achieve spectacular resolution. The SEL1224G has a 7-blade circular aperture for beautiful bokeh (blurred background elements). The lens comes with front and rear lens caps, an integrated lens hood, and a soft storage case with a drawstring closure.
Compatibility: The SEL1224G has a Sony E-mount, and is compatible with α-series Interchangeable Lens Cameras with the E-mount. It is designed for cameras with full frame (35mm) image sensors, but will work with cameras with an APS-C image sensor. The full frame equivalent focal range for APS-C cameras is 18-36mm.

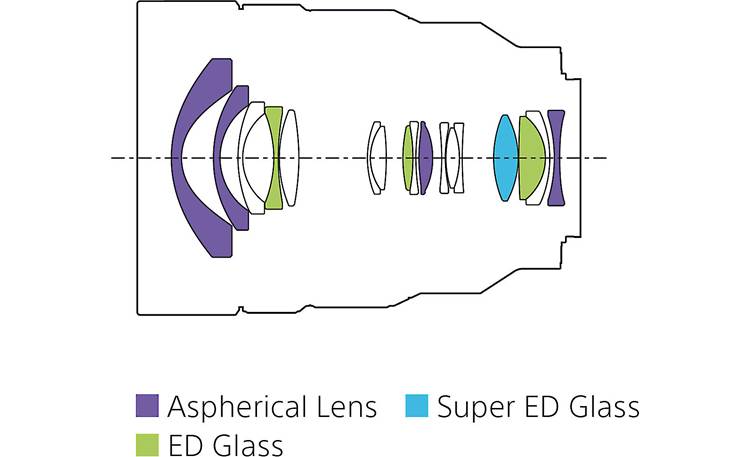

Lens Elements: The SEL1224G has 17 lens elements in 11 groups, including three ED (Extra-low Dispersion) glass elements and one Super ED glass element to minimize chromatic aberration. Sony's original Nano AR Coating suppresses spurious reflections that cause flare and ghosting.
Focusing System: The lens features an advanced inner-focus mechanism with a Direct Drive Super Sonic-wave Motor (DDSSM). The focusing system quickly and accurately positions the large focusing elements inside the lens to give you precise and fast auto focusing.
Controls: The FE 12-24mm lens has two controls on the lens barrel: a focus hold button and an AF/MF switch. The focus hold button is customizable, and can be assigned other functions if needed. The AF/MF switch lets you switch between Auto Focusing and Manual Focusing.
Integrated Lens Hood: The SEL1224G has a built-in lens hood for blocking incidental light that may cause flare and ghosting to maintain optimum clarity and contrast. The supplied lens cap slips over the integrated lens hood.
Specifications:
- Focal Length: 12-24mm
- 35mm Equivalent for APS-C Cameras: 18-36mm
- Mount: Sony E-mount
- Maximum Aperture: f/4
- Minimum Aperture: f/22
- Angle of View: 122°-84° (35mm), 99°-61° (APS-C)
- Minimum Focus Distance: 0.92' (11.04")
- Maximum Magnification: 0.137x
- Dimensions: Diameter 3.426", Length 4.836" (5.281" with lens caps)
- Weight: 20 ounces
