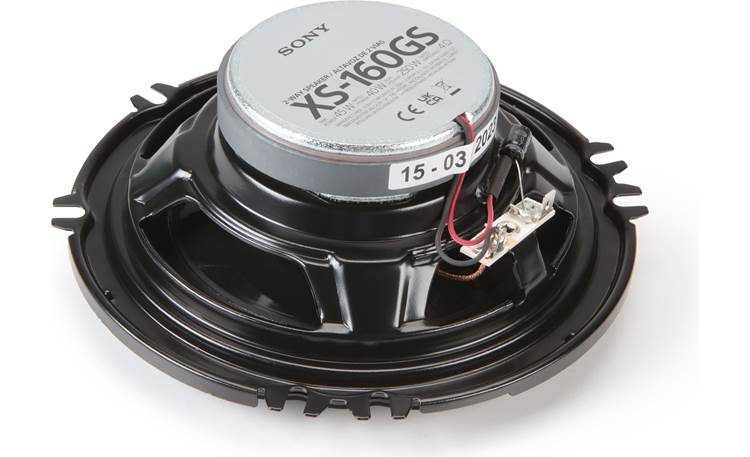

Sony XS-160GS GS Series 6-1/2" 2-way car speakers

Item # 158XS160GS

The perfect factory sound replacement for Sony fans.

Find what Fits your vehicle

Remove

Checking fit...

The perfect factory sound replacement for Sony fans.

Item # 158XS160GS

Ships free today

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
In stock

Deeply discounted installation gear

$128.00 pair

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Sony XS-160GS

Alexander H.

Product highlights:

  • 6-1/2" 2-way car speakers (pair)
  • composite polypropylene woofer
  • silk dome tweeter
  • handles up to 45 watts RMS (250 watts peak power)
  • frequency response: 45-24,000 Hz
  • sensitivity: 89 dB
  • top-mount depth: 1-7/8"
  • impedance: 4 ohms
  • grilles not included
  • warranty: 3 years
  • MFR # XS160GS
  • Item # 158XS160GS

What's in the box:

Sony XS-160GS owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • Two 2-way speakers
  • Eight 1-1/8" Screws
  • Instructions
  • Warranty information
  • Template on box

More details on the Sony XS-160GS

Pat M.

Features & specs

General
Speaker Size 6 1/2
Driver Design 2-way
Woofer Design Cone
Woofer Material Composite Polypropylene
Woofer Surround Rubber
Midrange Design ---
Midrange Material ---
Tweeter Design Dome
Tweeter Material Silk
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No
Grilles Included No
Parts Warranty 3 Years
Labor Warranty 3 Years
Specifications
Sensitivity (1W at 1 meter) 89
Sensitivity at 2.83 volts N/A
Frequency Response 45 - 24k Hz
Maximum RMS Wattage 45
Peak Power Handling (Watts) 250
Top-mount Depth (Inches) 1 7/8
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5
Mounting Height (Inches) 0.625
Frame Width 6.228
Frame Length 6.228
The Sony XS-160GS replaces these items:

Product Research

Features

Mounting: The speakers can be easily mounted in a variety of 6¾" applications. Given the required cutout, they will also fit into the opening for a typical 6½" speaker (approximately 5" diameter) but the screw hole pattern is larger than a standard 6½", so new holes are likely to be needed.

Specification Note: Sony's rated power spec for the XS-160GS is 40 watts (derived using IEC 60268-5 standards). In the manual they also list the CTA 2031 compliant RMS power as 45 watts. We've adopted the 45 watt RMS rating because CEA 2031 is the more common rating system.

The Sony XS-160GS replaces these items:


Adding...
Sony XS-FB1630

Sony XS-FB1630

XS-FB Series 6-1/2" 3-way car speakers
  • Foamed-Mica Reinforced Cellular fiber woofer
  • 1-7/16" PEI balanced dome tweeter and 1/4" dome supertweeter
  • handles up to 45 watts RMS (270 watts peak power)

Loading accessories...

Customer Q&A

1 question already asked

Q
Did anyone ever have problems with putting these speakers in the brackets? The spikes around the edges of the speakers seem to be giving me trouble
esteban  May 10, 2025
1 answer
A
Hey Esteban, thanks for the question. So there are some brackets that require you to break off tabs on the inner ring of the bracket for 6.5" speakers but these are vehicle specific. If you purchased the product from Crutchfield, feel free to contact our Tech Support team. They can walk you through the product and see if there may be a fix. Our toll-free Tech Support number is printed on your invoice, and is also available under the "My Orders" tab in the "My Account" section of our website. If you did not purchase the unit from Crutchfield, then you may want to contact the manufacturer.
red  May 10, 2025 (Staff)
