About the Sony XS-692ES

Product highlights:

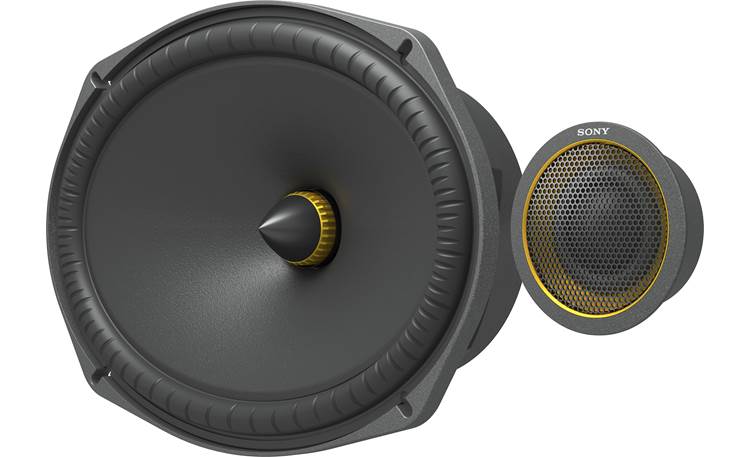

- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6"x9" Mica Reinforced Cellular aramid fiber woofer

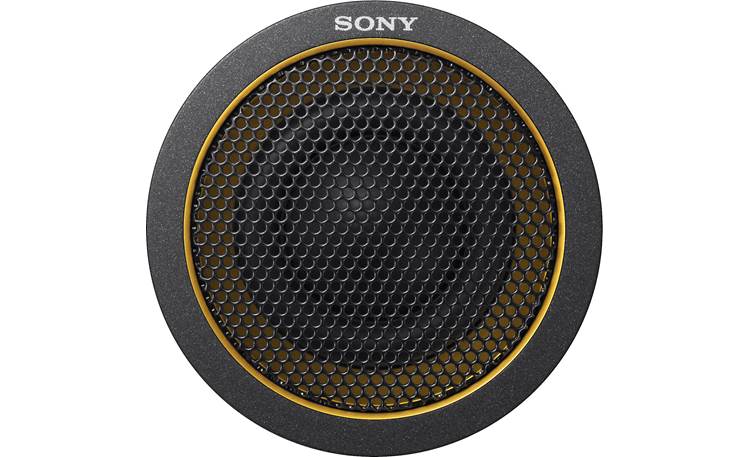

- 1" synthetic fiber dome tweeter
- handles up to 110 watts RMS (330 watts peak power)
- frequency response: 35-40,000 Hz
- sensitivity: 90 dB (1 watt @ 1 meter)
- warranty: 3 years
- MFR # XS692ES
- Item # 158XS692ES
What's in the box:
- 2 Woofers
- 2 Woofer grilles
- 2 Crossovers
- 2 Tweeters
- 2 Surface mount tweeter housings
- 2 Angled surface mount tweeter housings
- 2 Adhesive backed surface mount pads
- Ten 1-1/8" Screws
- Two M4x5mm Flat head machine screws
- 2 Crossover input jumpers
- Installation instructions (English/ French/ Spanish/ German/ Italian/ 20 other languages)
- Warranty information
- Woofer template on the box
More details on the Sony XS-692ES

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Mica Reinforced Cellular Aramid Fiber | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Synthetic Fiber | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black, Steel mesh, Plastic frame | |
Parts Warranty | 3 Years | |
Labor Warranty | 3 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 35 - 40k Hz | |
Maximum RMS Wattage | 110 | |
Peak Power Handling (Watts) | 330 | |
Top-mount Depth (Inches) | 2 13/16 | |
Bottom-mount Depth (Inches) | 3 1/8 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.404 | |
Frame Width | 6.59 | |
Frame Length | 9.332 |
Product Research
Features

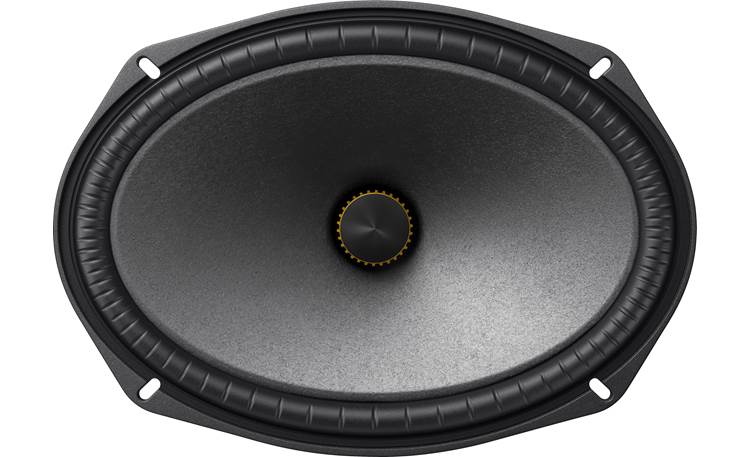

Phase Plug: The bullet-shaped phase plug in the center of the woofer ensures a smooth, flat off-axis frequency response by preventing the higher frequency sound waves emanating from one side of the cone from interfering with sound waves from the other side of the cone.
Tweeter Mounting: Flat and angled surface mount housings are included for tweeter mounting. In either case the tweeter is secured to the housing using the included M4 machine screws. The tweeters can also be flush mounted, but no bracket is included. Often the tweeters can be bolted to the factory brackets using the same M4 machine screws, or a custom bracket can be created using something like our Universal Back-Strap.
Tweeter Dimensions:
Frame Width | Frame Length | Cutout Diameter | Mounting Height | Mounting Depth | |
---|---|---|---|---|---|
Flush Mount | 2.418" | 2.418" | 2.098" | 0.125" | 0.875" |
Flat Surface Mount | 2.57" | 2.57" | N/A | 1.07" | Screw Depth |
Angled Surface Mount | 2.575" | 2.875" | N/A | 1.4" | Screw Depth |
Crossovers: Each crossover has high-pass and low-pass outputs with a 5 kHz crossover point and 6 dB/octave slope. A switch inside each crossover allows you to set the tweeter output level according to your system requirements and personal preference; choose 0 dB (factory setting) or +3dB. (A 2mm hex key is required to remove the crossovers' tops, not included.) The inputs and outputs are screw terminals; they will accommodate bare wire or spade connectors up to 0.315" wide. There is a mounting hole in the base of each crossover.
Bi-amp Inputs: The 2-way crossovers have separate inputs for the woofer and tweeter; this lets you drive the system with dedicated power for the separate speaker elements, instead of sharing power. If the system is powered using only two amplifier channels, the woofer and tweeter inputs should be shorted together using the included jumpers.
Crossover Dimensions:
- Length: 4-3/8"
- Width: 2-5/8"
- Height: 1-3/8"

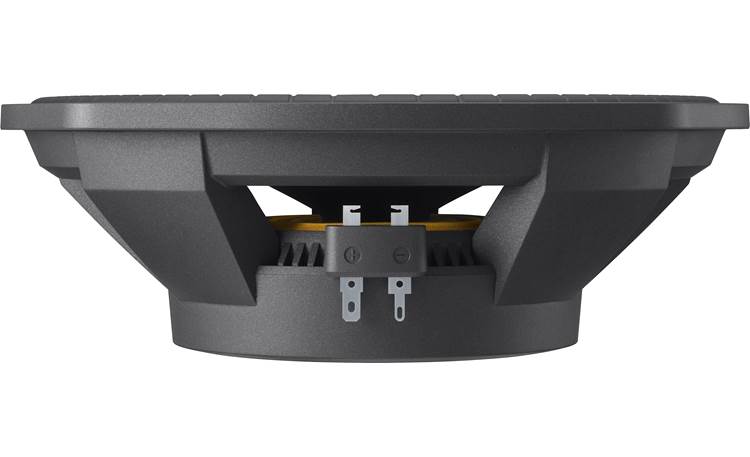

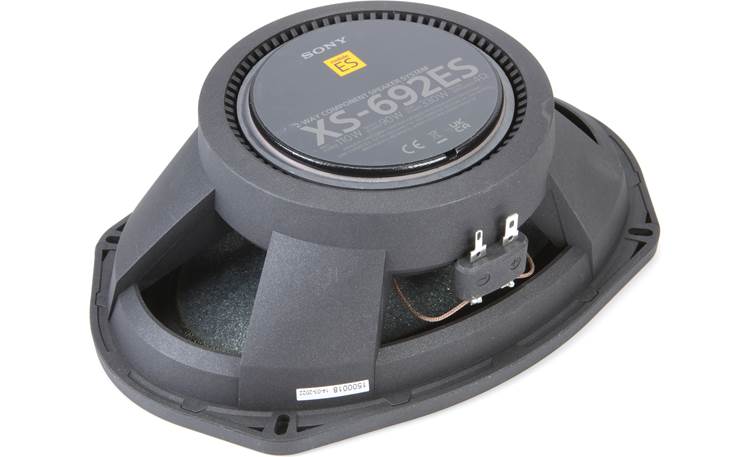

Wiring: No wire is included with these speakers, so it will need to be ordered separately. Both the woofers and tweeters have male quick-slide terminals. The woofer terminals are 0.205" wide (positive) and 0.110" wide (negative), and both tweeter terminals are 0.110" wide.

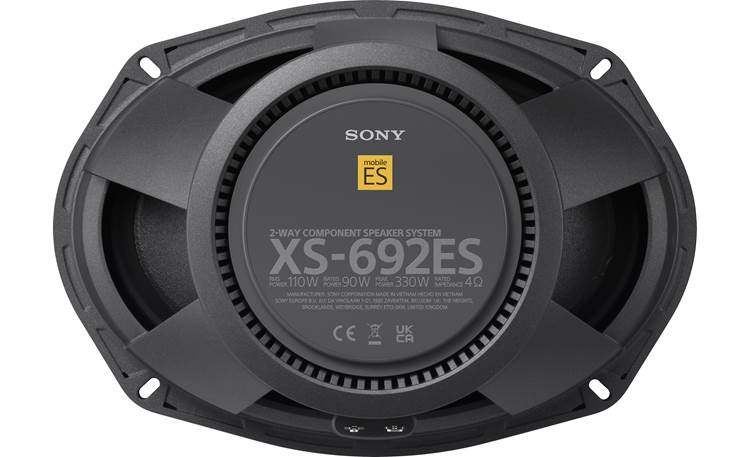

Specification Note: Sony's rated power spec for the XS-692ES is 90 watts (derived using IEC 60268-5 standards). In the manual they also list the CTA 2031 compliant RMS power as 110 watts. We've adopted the 110 watt RMS rating because CTA 2031 is the more common rating system.
