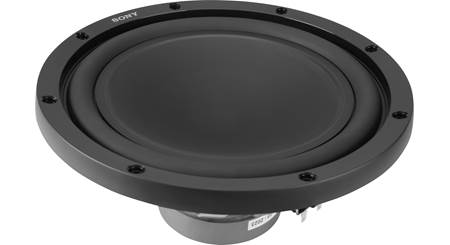

About the Sony XS-W124GS

Product highlights:
- 12" 4-ohm component subwoofer
- paper cone with polypropylene cap and rubber surround
- steel basket
- power handling: 420 watts RMS (1800 watts peak)
- frequency range: 30-500 Hz
- sensitivity: 83 dB
- top mount depth: 5.625"
- mounting height: 0.535"
- sealed box size: 0.72-1.2 cubic ft.
- ported box size: 0.92- cubic ft.
- warranty: 3 years
- MFR # XSW124GS
- Item # 158XSW124G
What's in the box:
- One 12" Single voice coil woofer
- Plastic trim ring
- Adhesive backed foam gasket
- Eight 1-3/8" Screws
- Instructions (English/ French/ Spanish)
- Warranty information
More details on the Sony XS-W124GS

Features & specs
Features and Specs | ||
---|---|---|
Size | 12-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Paper w/Polypropylene Dust Cap | |
Surround Material | Rubber | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
83 dB at 1 watt | |
Frequency Response | 30 - 500 Hz | |
Max RMS Power Handling | 420 | |
Peak Power Handling (Watts) | 1800 | |
Top Mount Depth (inches) | 5 5/8 | |
Bottom Mount Depth (inches) | 5 15/16 | |
Cutout Diameter or Length (inches) | 10 13/16 | |
Frame Width | 12.694 | |
Frame Length | 12.694 | |
Vas (liters) | 49.1949 | |
Fs (Hz) | 31.9 | |
Qts | 0.674 | |
Xmax (millimeters) | 7.8 | |
Parts Warranty | 3 Years | |
Labor Warranty | 3 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 0.91 | |
Minimum Sealed Box Volume (cubic feet) | 0.72 | |
Maximum Sealed Box Volume (cubic feet) | 1.2 | |
Ideal Ported Box Volume (cubic feet) | 1.16 | |
Minimum Ported Box Volume (cubic feet) | 0.92 | |
Maximum Ported Box Volume (cubic feet) | 1.6 | |
Port diameter (inches) | 3.625 | |
Port length (inches) | 13.875 |
Product Research
Features
Enclosure Compatibility: The XS-W124GS is compatible with either a sealed or ported enclosure.
- Sealed Box Volume: The ideal sealed box volume is 0.91 ft³.
- Ported Box Volume: The ideal ported box volume is 1.16 ft³ with a 3⅝" diameter and 13⅞" long port.
Specification Note: Sony's rated power specification is 300 watts (derived using IEC 60268-5 standards). In the manual they also list the CEA 2031 compliant RMS power as 420 watts. We've adopted the 420 watt RMS rating because CEA 2031 is the more common rating system.
Trim Ring: Including the cosmetic trim ring, the flange height and mounting height are both 0.775" (top mount).
