About the AudioControl SPK-8S2

Product highlights:
- 8" 2-ohm subwoofer
- fiber matrix paper cone with mica coating
- stamped steel frame
- power handling: 350 watts RMS (500 watts peak)
- frequency response: 30-500 Hz
- sensitivity: 83.3 dB
- top-mount depth: 4.291"
- mounting height: 0.515" without grille, 1.5" with grille
- cutout diameter: 7.141"
- sealed box volume: 0.25-0.75 cubic feet
- ported box volume: 0.5-1.0 cubic feet
- black steel mesh grille included
- warranty: 2 years
- MFR # SPK-8S2
- Item # 161SPK8S2
What's in the box:
AudioControl SPK-8S2 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 8" Single voice coil subwoofer
- Grille (installed)
- Rubber trim ring/gasket (installed)

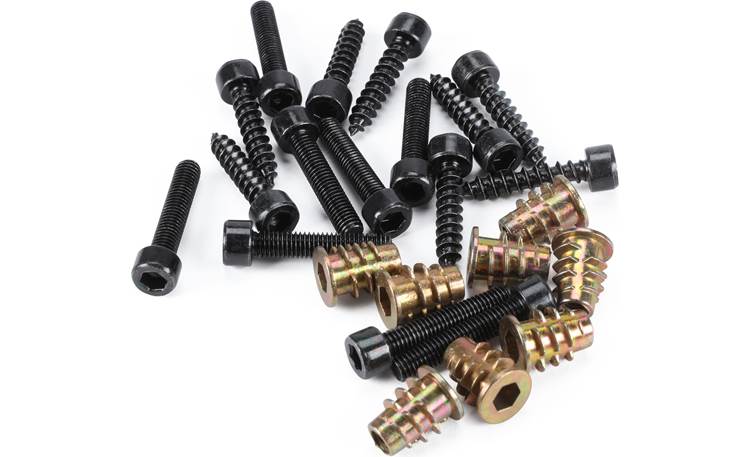

- Eight 1" Screws (4mm Allen head)
- Eight M5x25mm Machine screws (4mm Allen head)
- Eight M5 inserts
- User guide
- Template
More details on the AudioControl SPK-8S2

Features & specs
Features and Specs | ||
---|---|---|
Size | 8-inch | |
Impedance (Ohms) | 2 | |
Cone Material | Fiber Matrix Paper with Mica Coating | |
Surround Material | --- | |
Basket Material | Steel | |
Grille | Black steel mesh | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
83.3836 dB at 1 watt | |
Frequency Response | 30 - 500 Hz | |
Max RMS Power Handling | 350 | |
Peak Power Handling (Watts) | 500 | |
Top Mount Depth (inches) | 4 5/16 | |
Bottom Mount Depth (inches) | 4 7/8 | |
Cutout Diameter or Length (inches) | 7 3/16 | |
Frame Width | 8.493 | |
Frame Length | 8.493 | |
Vas (liters) | 5.2241 | |
Fs (Hz) | 51.6241 | |
Qts | 0.4788 | |
Xmax (millimeters) | 8.5 | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 0.5 | |
Minimum Sealed Box Volume (cubic feet) | 0.25 | |
Maximum Sealed Box Volume (cubic feet) | 0.75 | |
Ideal Ported Box Volume (cubic feet) | 0.9 | |
Minimum Ported Box Volume (cubic feet) | 0.5 | |
Maximum Ported Box Volume (cubic feet) | 1 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Power Handling: AudioControl describes the continuous power handling (RMS) as follows:
- Min: 200 watts
- Ideal: 350 watts
- Max: 500 watts

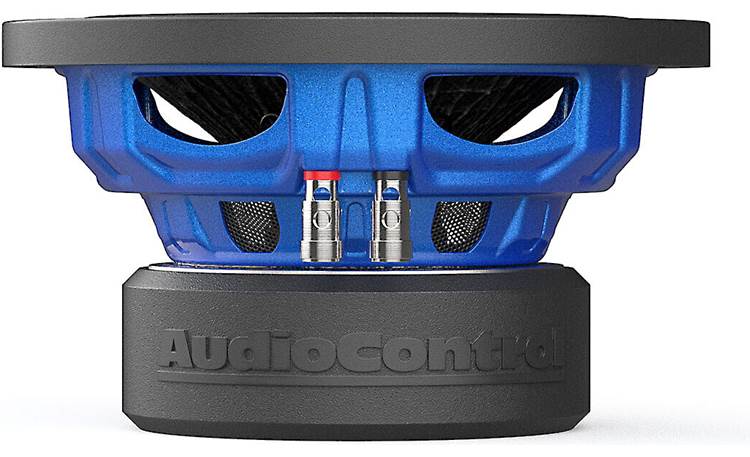

Terminals: The spring post terminals accept pin connectors, single and dual banana plugs (standard ¾" wide dual banana plugs), and bare wire up to 10 gauge.

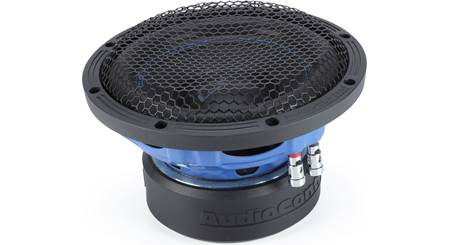

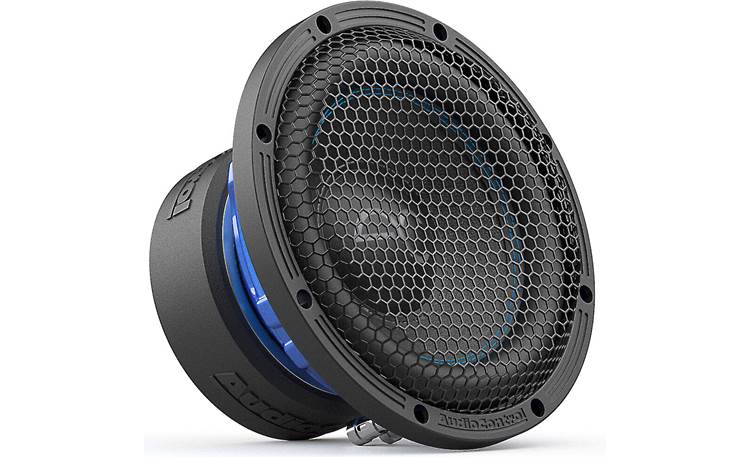

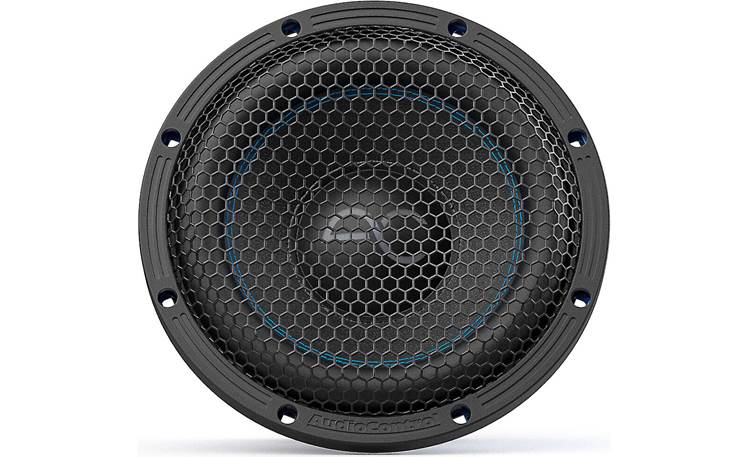

Grille: The removable grille is mounted under the rubber gasket/mounting-ring. With the grille in place the sub's mounting height is approximately 1½".
Sealed Box Volume: The recommended sealed box volume range is from 0.25 ft³ to 0.75 ft³, with 0.5 ft³ being the ideal size. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Box Volume: The recommended ported box volume range is from 0.5 ft³ to 1.0 ft³. The ideal size is 0.9 ft³ with a slot port measuring 10" x 1¾" x 28", resulting in a tuning frequency of 40 Hz and a -3 dB point of 34 Hz. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
I put this little 8" in my F-150 under the rear passenger seat. Paired it with a 350 watt amp and a premade forward facing box I bought on eBay. It bumps! I tried getting away with the Rockford Fosgate powered sub behind the seats but it's just wasn't cutting it. I love this sub!!!
Curtis from Loveland, CO
