Features

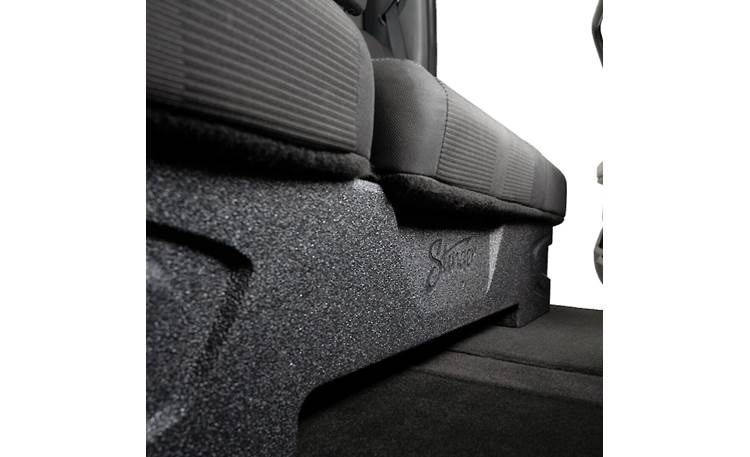

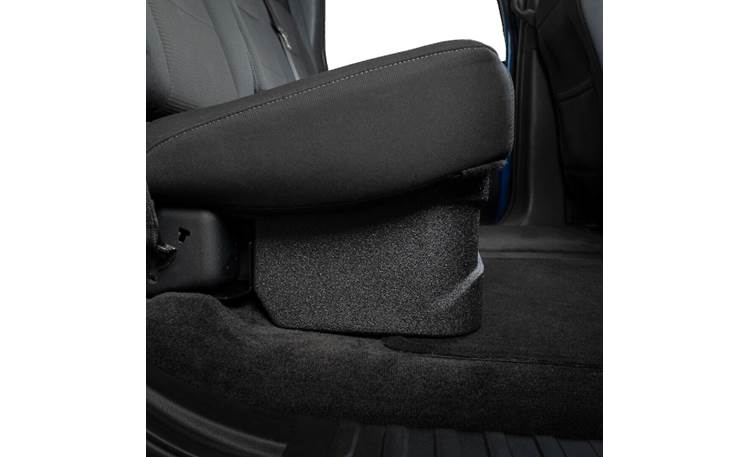

Overview: The AudioControl TXFF15D10 Dual 10" Under Seat Sealed Subwoofer Enclosure has been specifically designed for select Ford Super Crew and Super Duty Crew Cab vehicles. The custom subwoofer box mounts neatly under the rear seat using the supplied brackets and hardware, with no modifications to your vehicle required for installation.

Vehicle Compatibility: The AudioControl TXFF15D10 Dual 10" Under Seat Sealed Subwoofer Enclosure can be installed in the following vehicles:

• 2015+ Ford F-150 Super Crew
• 2017+ Ford F-250/350 Super Duty Crew Cab

Enclosure: The custom AudioControl TXFF15D10 sealed enclosure is constructed of heavy-duty fiberglass with internal bracing, providing excellent sound dampening properties and reduced resonance. The rugged enclosure features a heat-bonded EPM (Elastomeric Polyurethane Molecule) layer and Roadkill-Armor coating for added durability, UV protection, and weather-resistance. The TXFF15D10 enclosure is also resistant to chemicals, stains, scratches, and cracking.

Dual SPC-10S4 Subwoofers: The AudioControl TXFF15D10 is loaded with two Space Series 10" SPC-10S4 subwoofers. Both drivers feature a fiber matrix paper cone, with mica coating, and a durable isoprene polymer surround mounted to a powder-coated frame. The heavy-duty motor system features a 2.5" diameter voice coil with a 3-layer, high-temperature former for maximum efficiency. The two SPC-10S4 subwoofers are protected by removable metal-mesh grilles.

Power Handling: The two 4-ohm subwoofers are internally parallel-wired for a 2-ohm load at the single set of input terminals. The enclosure can handle 400-800W RMS (800W recommended); 1200W peak power.

Connections: The TXFF15D10 features two connection methods:

• Spring Posts: A pair of spring posts can accept speaker wire up to 10-gauge in size.
• Quick-Plug Harness: A removable 6" 2-pin harness (XT-90), with bare-ended 12-gauge wires, provides a quick-connection method that can easily be plugged and unplugged from the enclosure.
