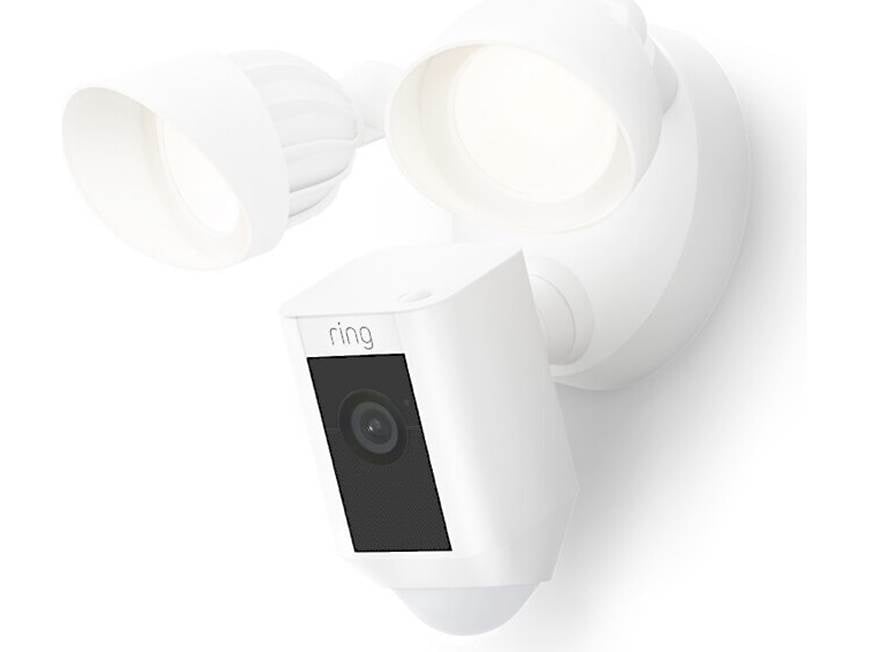

About the Ring Floodlight Cam Wired Plus

Product highlights:
- hardwired home security camera with motion-activated ultra-bright LED floodlights
- view 1080p HD video from anywhere
- color night vision lets you see in the dark
- two 3000°-Kelvin, 2000-Lumen motion-activated floodlights
- connects to your network via Wi-Fi® (2.4 GHz)
- advanced dual sensors provide 270° field of view for motion detection
- get smart alerts on your mobile device when motion is detected
- camera has 140° field of view for recording
- app features include:
- adjustable motion zones and scheduling
- 105-decibel alarm activation
- two-way talk
- live view
- "Shared Users" functionality for sharing access to your Ring devices with other users
- optional cloud storage subscriptions available for saving or sending video clips
- compatible with Amazon Alexa-enabled devices for voice control
- warranty: 1 year
- MFR # B08F6GPQQ7
- Item # 169FLDPLSW
What's in the box:
Ring Floodlight Cam Wired Plus owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Dual floodlight security camera (white)
- Plastic mounting plate (white)
- Metal mounting bracket
- 3 Wire nuts (tan)
- Bag of Screws (containing A-G)
- A: Two #10 x 0.5" machine screws
- B: Three #10 x 0.75" machine screws
- C: Three #10 x 1" machine screws
- D: Two #8 x 0.5" machine screws
- E: Two #8 x 0.75" machine screws
- F: Two #8 x 1" machine screws
- G: 3 Screw cap nuts
- Screwdriver (with Phillips and flat head bit)
- User Guide
- Important Product Information
- Window decal
More details on the Ring Floodlight Cam Wired Plus

Product Research
Features
Overview: The Ring Floodlight Cam Wired Plus outdoor security camera can keep an eye on your property when you can't. It is equipped with dual, motion-activated 2000-lumen floodlights that can light up a wide area. With built-in Wi-Fi, you can view the streaming video on the Ring app directly from your computer, tablet, or smartphone. It has a microphone and speaker for two-way audio capability. The Floodlight Cam is hardwired into your home's electrical circuit (100-240V), and can easily replace an existing floodlight.
Camera: The security camera has a wide-angle lens with a 140° horizontal and 80° vertical field of view. The camera produces bright 1080p HD video in a Live View that you can watch on your phone, tablet, or computer. Adjustable motion sensors cover a 270° arc, and can detect movement up to 30 feet away (based on a 9-foot mounting height). When motion is detected, the 2000-lumen floodlights will automatically turn on, and a notification will be sent to your smart device through the Ring app. Even with the lights off, the camera's infrared LEDs will enable the color night vision.
105dB Siren: The camera features a 105-decibel siren alarm that will help scare off any intruders. The siren is remote activated from the Ring App on your smart device or computer.
Weather Resistant: The Floodlight Cam Wired Plus is designed to be used outdoors. It is resistant to inclement weather and temperature extremes (-5°F to 122°F).
Installation: The camera is designed to be mounted on an exterior wall of your home, replacing an existing floodlight. A new 4" diameter junction box should be installed for optimal performance. The included metal mounting bracket installs over the junction box. The plastic mounting plate attaches to the junction box, and has 1-1/2" threaded mounting posts for securing the Floodlight Cam. After hardwiring and installing the camera, you're ready for setup with the Ring App and position the lights and camera.
Wi-Fi: The Ring Floodlight Cam Wired Plus operates on an 802.11 b/g/n Wi-Fi connection on the 2.4 GHz band. The Floodlight Cam requires a minimum upload speed of 1 Mbps, however, 2 Mbps is recommended for best streaming performance.
Ring App: The free Ring - Almost Home app pulls together all of your Ring devices, including Video Doorbells and Security Cameras. The app sends you an instant alert when someone triggers the camera's motion sensor, or rings your Ring Video Doorbell. You'll be able to see, hear, and speak to anyone on your property using your smart device. In addition, the app lets you create a virtual Neighborhood Watch and receive alerts from your neighbors. In the app, you can zoom and pan for a better look, flash the lights, activate the siren, customize the Motion Zones, edit the times for receiving (or not receiving) alerts, and how often to be notified for motion events. The Ring App is available for Apple iPhone, iPad, and iPod touch running iOS 14.0 or later, and for Android devices running version 9.0 and up. The Ring desktop app has been discontinued, however, all of your settings and Ring features will be accessible in your account on Ring.com.
Works with Alexa: The Ring Floodlight Cam Wired Plus is Alexa-enabled, allowing you to hear custom notifications from Amazon Echo Dot devices, and view video on Echo Show devices.

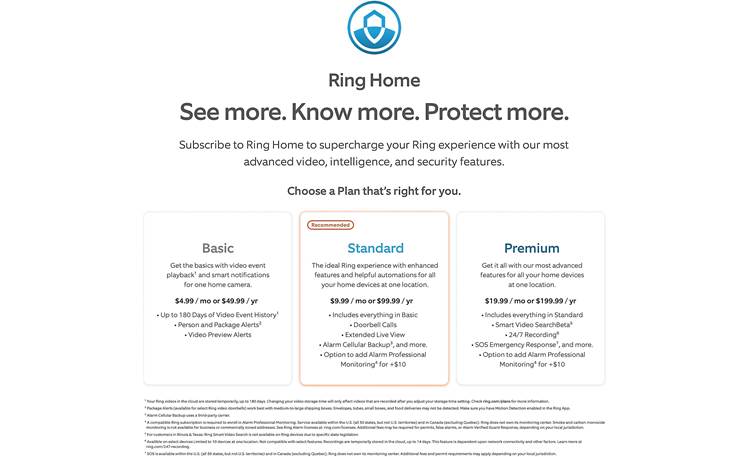

Ring Home: Purchase of this Ring product includes a free 30-day trial of Ring Home Basic (formerly called Ring Protect Basic), which lets you save, review, and share recordings from the Ring - Always Home app for up to 180 days. Details of the available Ring Home plans are below:
Ring Home Subscription Plan | Features |
---|---|
Basic Covers one Doorbell or | Includes:
|
Standard Covers all home devices | Includes Basic Features, plus:
|
Premium Covers all home devices | Includes Basic and Standard Features, plus:
|
Add-on Subscriptions Available with Standard |
|
The Ring Floodlight Cam Wired Plus replaces these items:
- easily replaces existing wired floodlights and connects to standard junction boxes
- 270° field of view for motion detection and 140° field of view for recording
- app features include two-way talk and remote siren activation
