Features

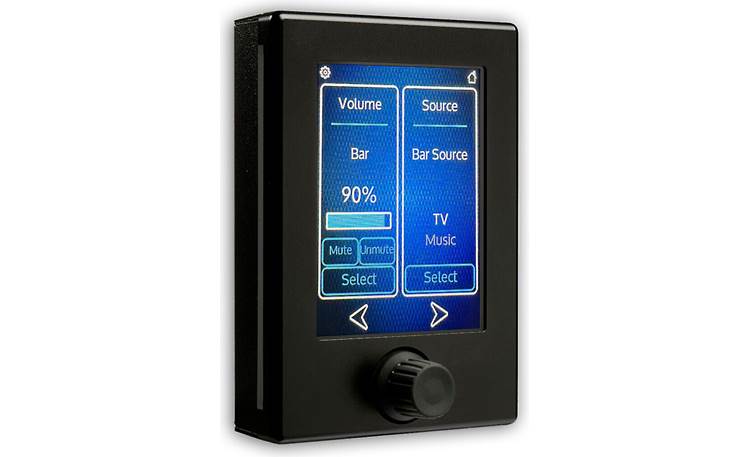

Wall-Mount Touchscreen Control Panel: The LEA Connect Series Touch (CS Touch) is a sleek, low-profile wall-mount volume and source selection solution for LEA Connect Series Amplifiers. It features a 3.5" (diagonal) touch screen and a single control dial for easy operation. A single RJ-45 port provides the connection for both control and power via PoE (Power over Ethernet). The CS Touch can be configured from a computer on the same network using its built-in WebUI.

System Overview: The CS Touch lets you control multiple Volume Control Groups and multiple Source Select Groups from a single Connect Series Touch, giving you the ability to control an entire system's volume and sources from one screen. You can also create multiple zones individually from one CS Touch panel.

• Volume Group: This lets you group amplifier channels together for simultaneous volume adjustment from one CS Touch. For example, a restaurant with multiple zones that all need to be raised/lowered from one volume adjustment. You can also control multiple Groups from one CS Touch. Within each Volume Group, you can set the Range and Offset for each channel
  • Range: Lets you set a volume limit, so the end user can't turn the volume up to full.
  • Offset: Individual zones can have their volume adjusted or "offset" from the others, while still being able to raised and lowered with the whole Volume Group.
• Volume Subgroups: This gives you the ability to adjust specific zones within a Volume Group, but still retain the overall Volume Group control.
• Source Groups: Similar to Volume Groups, Source Groups give you the ability to group and name sources so the CS Touch user can easily select the source they want the amplifier to change to.

Panel Controls: The touch panel can display both Volume Group and Volume Subgroup, letting you make quick adjustments as needed. Touching a display icon lets you use the front panel rotary control to make adjustments to that setting. The on-screen display can show both a Volume Group and a Volume Subgroup, each with Volume control, Mute/Unmute buttons, and Select button for changing sources.

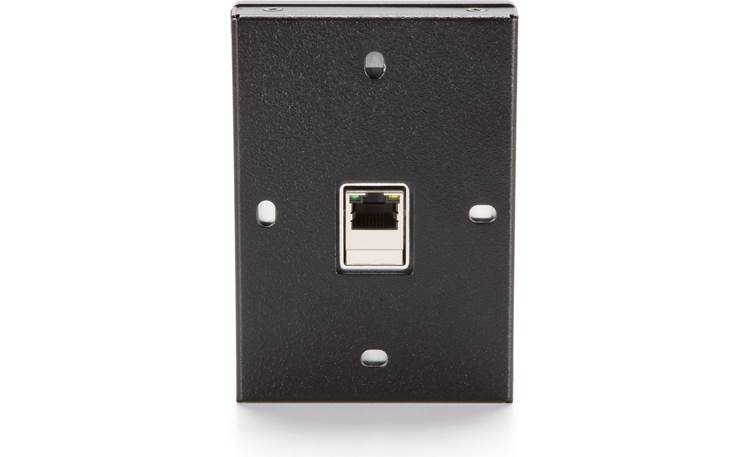

RJ45 LAN Port: Using a standard Ethernet cable (sold separately), connect one end of the Ethernet cable to the CS Touch’s LAN port (RJ45) and the other end to the LAN port of your Ethernet broadband router or switch with Power over Ethernet (PoE).

PoE (Power over Ethernet): The CS Touch is powered by PoE and does not include an AC power connection. Power over Ethernet (PoE) delivers power and data over Ethernet cabling, eliminating the need for additional cables, separate power supplies and outlets.

Mounting Options: The LEA CS Touch is designed to mount flush to a wall using the supplied mounting bracket. The bracket can be removed from the CS Touch, by removing four screws. The bracket can be attached directly to a wall or stud (hardware not provided) or installed in a standard single-gang electrical box (sold separately). The wall-mount touchscreen control panel and bracket measures 3.150" (w) x 4.410" (h) x 1.637" (d).
