Shure BLX24R/SM58 Handheld wireless microphone system — includes BLX4R rack-mount receiver, SM58 microphone with BLX2 transmitter (596 to 616 MHz, J11 Band)

Name: Shure BLX24R/SM58
Brand: Shure
SKU: 183BL24R5J
Price: 469.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

Item # 183BL24R5J

Shure designed their BLX family of wireless systems to set you free.

Front

1/9

2/9

Only at Crutchfield

3/9

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Back

Shure designed their BLX family of wireless systems to set you free.

Item # 183BL24R5J

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$469.00

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Charlie Pastorfield

Roam where you want to

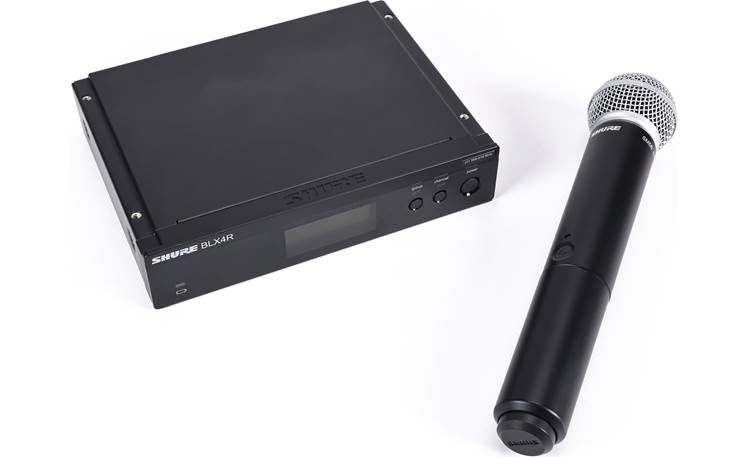

Shure designed their BLX family of wireless systems to set you free. This BLX24R/SM58 system includes the BLX4R rack-mount single-channel receiver and the BLX2/SM58 wireless microphone, a package which gives you the freedom to roam the stage.

Set 'em up

It's simple to set up the BLX24R/SM58's transmitter and receiver. Press the Group button on the receiver and it scans for the clearest group and channel. Then just set the transmitter to the same group and channel settings and you're ready to go. The Group and Channel can also be set manually. You can run up to 12 systems simultaneously depending on channel availability and RF environment.

Simple and free

The BLX2 transmitter and SM58 microphone combo delivers exceptional performance without a cable, while the BLX4R rack-mount receiver offers the simplicity of single-channel setup. You'll enjoy the freedom of a wireless system with Shure sound quality in an easy-to-use package.

When considering a wireless system, you'll want to pick the frequency band with the least interference from local TV stations. Shure's Wireless Frequency Finder will show you the TV stations in your area, along with a list of recommended channels. Choose the frequency band that gives you the most open channels

Product highlights:

wireless system with handheld BLX2/SM58 microphone/transmitter and BLX4R rackmountable receiver
operating range: 300' (line of sight)
powered by two AA alkaline batteries (up to 14 hours battery life)
transmitter LED indicates battery status
simultaneous operation of up to 12 systems (band and RF dependent)
locking transmitter and receiver controls

Electronic Features:

596 to 616 MHz (J11 Band)
receiver: XLR and 1/4" outputs
frequency response: 50-15,000 Hz
gain adjustment range: 10 dB

General Features:

dimensions:
- BLX2: 9.83"L x 2.013" diameter
- BLX4R: 7.791"W x 1.656"H x 7.50"D
weight:
- BLX2: 7.7 oz. (without batteries)
- BLX4R: 2.2 lbs. (without antennas)
warranty: 2 years
MFR # BLX24R/SM58-J11
Item # 183BL24R5J
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Shure BLX24R/SM58 owner's manual

BLX4R Single-channel rackmount receiver (J11 band / 596-616MHz)
SM58 handheld microphone with BLX2 transmitter
Microphone stand adaper

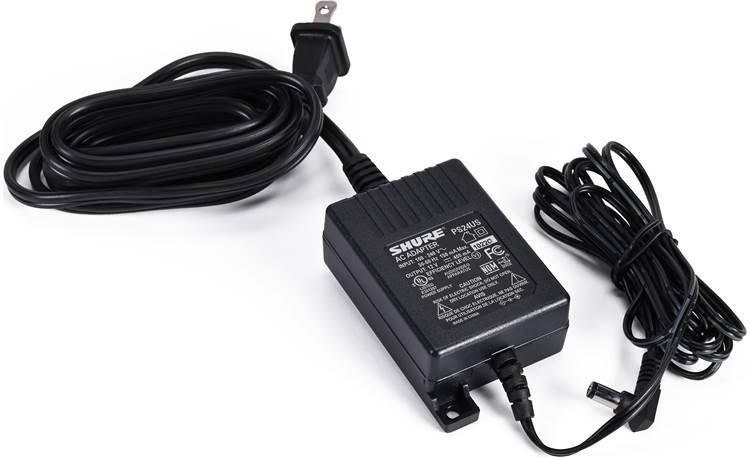

PS24US Power supply (12V/400mA output)

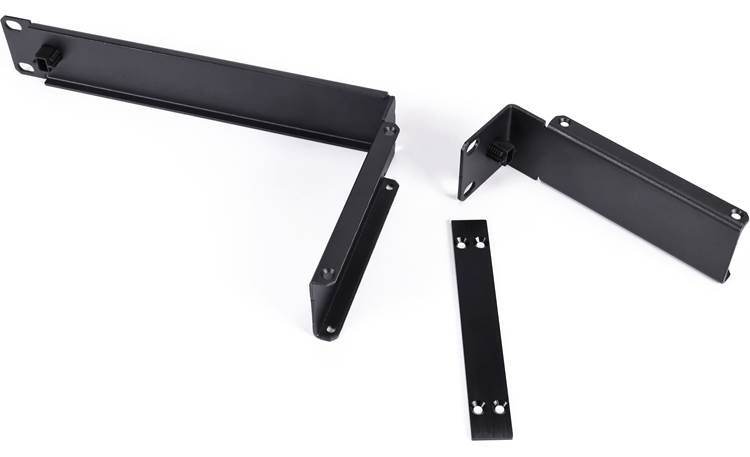

Short rackmount arm
Long rackmount arm
Adjoining plate

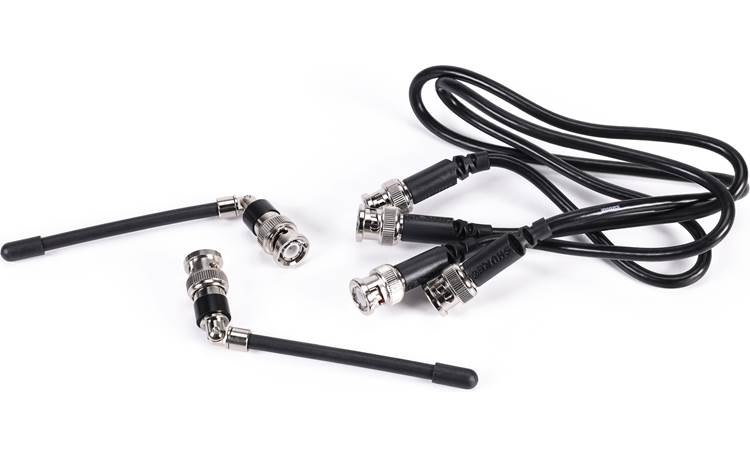

Two 3.45" receiver antennas (w/BNC connectors)
Two 21" antenna cables (BNC connectors on each end)
2 Female BNC couplers w/lock washers
Four 22mm machine screws
Eight 12mm counter-sunk screws
4 Plastic screw bushings
2 Hole caps
4 Rubber washers
2 AA Batteries

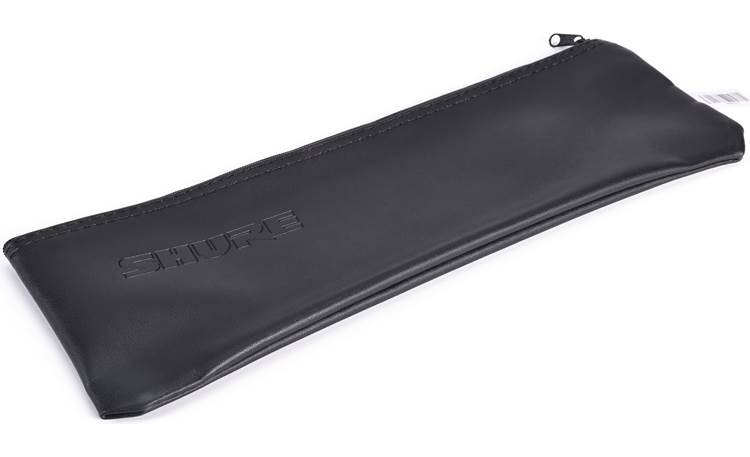

Zippered vinyl microphone bag
User guide
Warranty information
Rack mount instructions

Researched by Crutchfield's Russ B.

Product Research

Features
Specifications

Features

Overview: The Shure BLX24R/SM58 Handheld Wireless Microphone System consists of the BLX4R Rack Mount Wireless Receiver, and the SM58 Handheld Microphone with the BLX2 transmitter. You can operate up to 12 compatible systems per frequency band (depending upon your region). The system operates on the J11 frequency band (596 to 616 MHz), and has a transmitting range of approximately 300 feet.

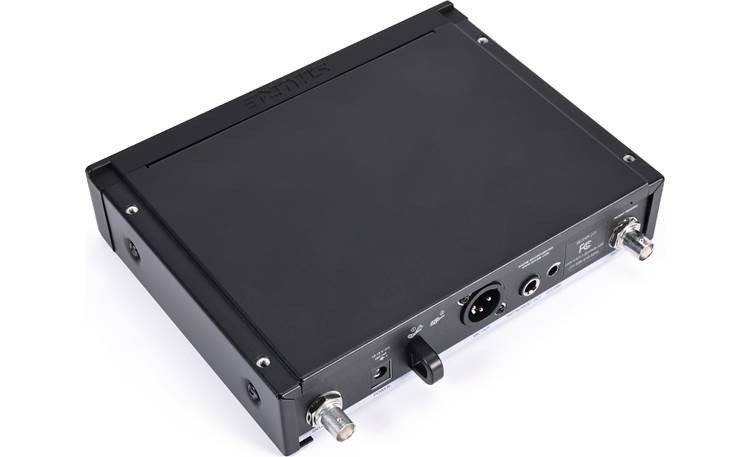

BLX4R: The BLX4R Rack Mount Wireless Receiver features one-touch QuickScan frequency selection to help you find the best open frequency for less interference. You can also manually change the group and channel assignments, if needed. It has an XLR mic output, as well as a 1/4" instrument-level output jack. The BLX4R is simple to set up, and has a microprocessor-controlled internal diversity antenna system with two removable 1/4-wave antennas. It has two LED indicators: an Audio LED to indicate the strength of the incoming signal (glows green for normal and red for overload), and a Ready LED to indicate the system is ready for use and receiving the transmitter signal. The BLX4R has an LCD display with detailed RF and audio metering. It is powered by the supplied 12-volt DC power supply, and comes with hardware to rack mount the receiver in a 1U rack space. For better reception when rack-mounting, hardware and extension cables are included to locate the antennas on the front of the rack-mounting brackets.

BLX2/SM58 Wireless Handheld Mic: The SM58 is the industry standard microphone capsule for lead and backup vocals in a professional sound reinforcement or project studio recording application. The SM58 has a cardioid polar pattern, and delivers warm, clear vocal reproduction. It is designed for close-up vocals, and can be handheld or mounted on a stand (using the supplied adjustable stand adapter). The SM58 can withstand rough handling, featuring a hardened steel mesh grille, and an advanced pneumatic shock mount system that minimizes mechanical noise and vibration. In addition to the stand adapter, the microphone comes with a zippered storage bag. The BLX2 transmitter is powered by 2 "AA" alkaline batteries (included), which provide approximately 14 hours of battery life. The LED indicator turns red to signify low battery with approximately 60 minutes of battery life remain. Optional rechargeable batteries can also be used. The BLX2 has independent group and channel buttons for easy setup. The BLX2 comes with a black identification cap. Optional color ID caps are available from the manufacturer.

Specifications

Frequency Response:

BLX4R Receiver: 50-15,000 Hz
SM58/BLX2: 50-15,000 Hz

Gain Adjustment Range (BLX2): 10dB

Dimensions/Weight:

BLX4R: Width = 7.791", Height = 1.656", Depth = 7.50", Weight = 2.2 pounds
BLX2/SM58: Length = 9.883", Diameter = 2.013", Weight = 7.7 ounces

Loading accessories...

1 question already asked

Does each SM58 wireless mike require its own BLX24R receiver or can multiple SM58's run off the same receiver?

chuck Apr 14, 2018

1 answer

Wireless mic systems like this one can only work with one microphone. We have at least one, maybe more, wireless mic system that has two microphones. I recommend discussing this with one of our Pro Audio advisors and you can call them on 800-555-9369 My Bio: http://www.crutchfield.com/Support/Bio.aspx?bio=101

jason Apr 30, 2018 (Staff)
