Shure NXN5 Nexadyne Amp Mic W/XLR Supercardioid dynamic microphone

Name: Shure NXN5 Nexadyne Amp Mic W/XLR
Brand: Shure
SKU: 183NXN5
Price: 239.0 USD
Availability: InStock

Item # 183NXN5

Shure has engineered the NXN5 Nexadyne 2 mic with their legendary ear for precision.

Front

1/6

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Shure NXN5 Nexadyne Amp Mic W/XLR Only at Crutchfield

Shure has engineered the NXN5 Nexadyne 2 mic with their legendary ear for precision.

Item # 183NXN5

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$239.00

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Ken Nail

Shure's next-gen guitar amp mic

Shure has engineered the NXN5 Nexadyne 2 mic with their legendary ear for precision. Designed for micing guitar amps, it'll bring out all the details you're looking for. It boasts a uniform and precise supercardioid polar pattern that rejects extraneous sounds from the sides so you'll only feed the sound you want to the mixer.

The hardened grille and robust build quality protects the mic from hard knocks.

Better by design

Nexadyne 2's Revonic™ Dual-Engine Transducer Technology design offers some distinct advantages. Capturing the range of sounds a guitar can produce can be tough, but the two internal transducers give the microphone twice the opportunity to capture it all,with crisp reproduction that often eliminates the need for EQ. This dual-motor design also allows the mic to cancel out most of the background noise, eliminating the need for the traditional shock mount in the housing.

If you've been struggling to get the guitar right in the mix, this unique microphone will make your job much easier. You'll enjoy performance that's a cut above other mics — even your old favorites.

Product highlights:

designed for close miking of guitar amps
high-output dynamic microphone
supercardioid pattern for superior noise rejection and high gain before feedback
Revonic Dual-Engine Transducer Technology design for more precise reproduction
integrated tilt-mount stand adapter
hardened steel mesh grille

Specifications:

frequency response: 50-16,000 Hz
sensitivity: -61 dBV/Pa
output impedance: 335 ohms
maximum SPL: NA
weight: 1.18 lbs
male XLR connector

Included accessories:

zippered storage pouch
5/8" to 3/8" thread adapter

Other info:

warranty: 2 years
MFR # NXN5
Item # 183NXN5
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Shure NXN5 Nexadyne Amp Mic W/XLR owner's manual

Supercardioid dynamic guitar amp microphone
Stand adapter
5/8" to 3/8" thread adapter (installed)
Zippered nylon pouch
User guide
Safety & Warranty information

Researched by Crutchfield's Russ B.

Features & specs

General
Application	For live & studio use
PolarPattern	Supercardioid
Specs
Frequency response	50Hz-16kHz
Sensitivity	-61 dBV/Pa
Max SPL	Not given
Diameter	2.25
Length	6.15
Weight	0.65 oz.
Parts Warranty	2 Years
Labor Warranty	2 Years

Product Research

Features

Overview: The Shure Nexadyne 5 (NXN5) microphone is a professional supercardioid dynamic microphone that's designed for miking guitar amp cabinets. It features a low-profile 90°-angled design, and includes an adjustable stand adapter. The NXN5 also includes a 5/8"-to-3/8" thread adapter and a zippered storage pouch.

Dual Transducers: The NXN5 microphone features Shure's Revonic™ dual-engine transducer technology that uses two matched transducers that are electrically out of phase with each other, canceling out unwanted vibrations and mechanical noise while providing vivid sound clarity. The dual transducers feature a supercardioid polar pattern for strong off-axis rejection and reduced stage bleed.

Construction: The microphone has an industrial design with a black metallic finish and grille for an unobtrusive visual presence. The black reinforced mesh grille protects the dual-transducer cartridge from damage, and can be replaced if needed.

Mounting: The Shure NXN5 includes a stand adapter with a 5/8" thread and a 5/8"-to-3/8" thread adapter insert. The stand adapter features a tensioning knob that allows you to quickly and easily position the microphone.

Connector: The NXN5 has a 3-pin male XLR connector integrated into the rear of the microphone. No microphone cable is included.

Specifications:

Type: Dynamic (Moving Coil)
Frequency Response: 20 Hz - 16 kHz
Polar Pattern: Supercardioid
Output Impedance: 335 ohms
Sensitivity: -61 dBV/Pa (0.5 mV/Pa)
Dimensions: 2.250" (w) x 6.150" (h) x 2.550" (d)
Weight: 0.65 lbs.

Loading accessories...

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

Shure NXN5 Nexadyne Amp Mic W/XLR

Supercardioid dynamic microphone

In stock

$239.00
Loading...

Adding...

Shure SM57

Cardioid dynamic microphone

In stock

5.0 out of 5 stars
7 reviews

$109.00
Loading...

Adding...

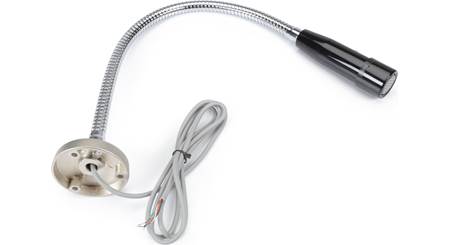

CAD AMC105SNO-19
