Shure SLXD5-G58 Bodypack wireless receiver — works with Shure SLXD3 transmitter

Item # 183SLXD5G5

Shure's SLXD5 wireless receiver packs the features of their SLXD Series receivers into a slim, portable package.

Shure's SLXD5 wireless receiver packs the features of their SLXD Series receivers into a slim, portable package.

California customers:
Please click here for your Proposition 65 warning.

Item # 183SLXD5G5

Ships free today

Low stock
$379.00

Other options

About the Shure SLXD5-G58

Charlie Pastorfield

Portable receiver

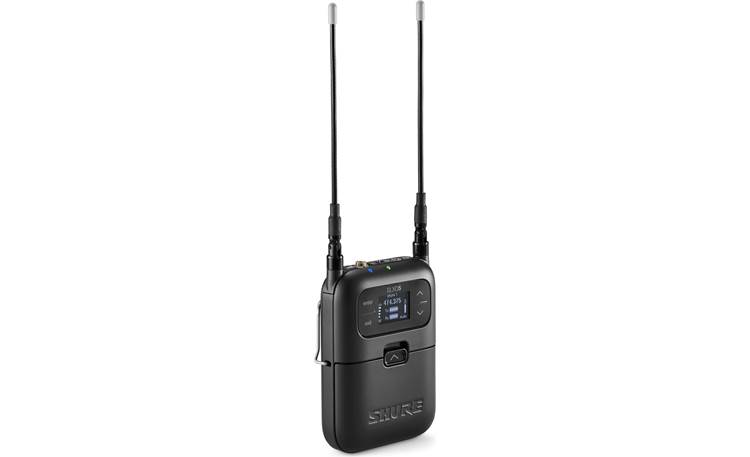

Shure's SLXD5 wireless receiver packs the powerful features of their SLXD Series receivers into a slim, portable package ideal for use with a camera or in any situation where a very small receiver is an asset. Its rugged metal construction stands up to abuse, and its bright OLED screen shows you how many hours and minutes of life you have left in your SB903 rechargeable battery (not included). Pairing the receiver with the compact Shure SLXD3 transmitter is easy.

Portable receiver

Shure's SLXD5 wireless receiver packs the powerful features of their SLXD Series receivers into a slim, portable package ideal for use with a camera or in any situation where a very small receiver is an asset. Its rugged metal construction stands up to abuse, and its bright OLED screen shows you how many hours and minutes of life you have left in your SB903 rechargeable battery (not included). Pairing the receiver with the compact Shure SLXD3 transmitter is easy.

Small yet versatile

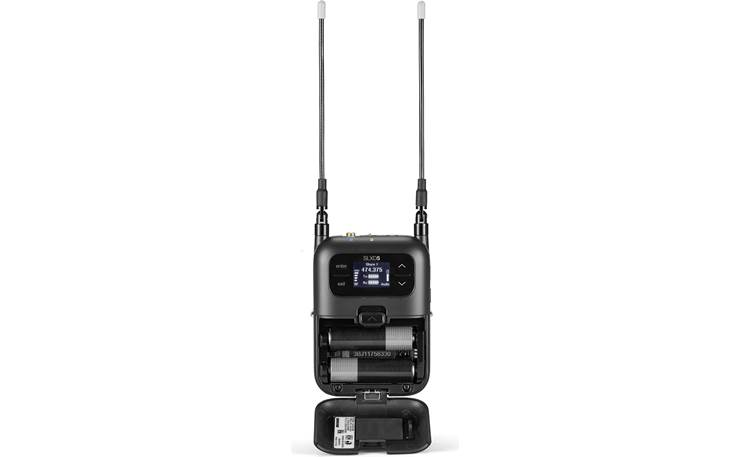

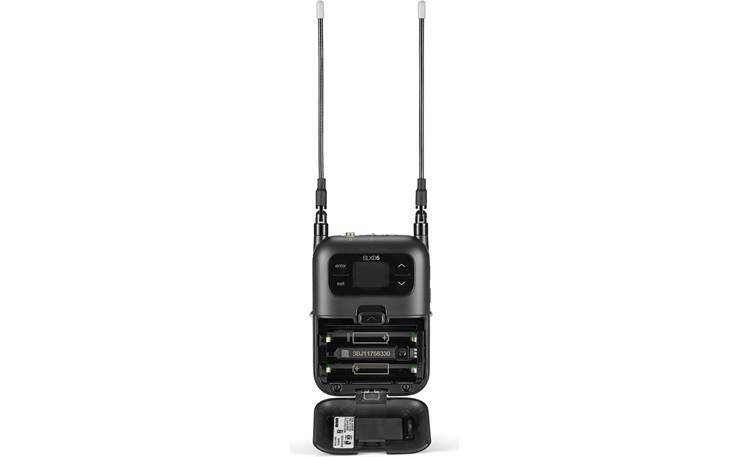

The tiny receiver comes with hardware for mounting it on your camera, and you'll get up to 5-1/2 hours of use from a pair of AA batteries or the Shure battery pack. You can choose between mic- or line-level audio outputs, and you'll also find a handy headphone jack. An optional adapter (not included) can replace the receiver's battery pack if the receiver is staying in one spot for the shoot. The package includes a pair of AA batteries, a cold shoe mount adapter, and a carrying pouch.

READ LESS

Product highlights:

  • bodypack single-channel wireless receiver
  • works with Shure SLXD transmitters
  • package includes zippered nylon bag, 16" locking 3.5mm-to-XLR cable, 16" extender cable (3.5mm-to-3.5mm), two AA batteries, 1/4" thread camera shoe adapter
  • dual antennas, 3.5 mm audio output (switchable mic/line), 3.5 mm headphone output, reception LED, and power LED
  • designed for use with cameras or any situation where portability is required
  • OLED display screen for key feature readouts and battery life
  • up to 5-1/2 hours of life from 2 AA batteries or optional Shure SB903 rechargeable battery
  • rugged aluminum construction
  • dimensions: 4.21"H x 2.85"W x 1.06"D
  • weight: 6.42 ounces (without batteries)
  • warranty: 2 years
  • MFR # SLXD5=-G58

What's in the box:

  • Wireless receiver (G58 / 470-514MHz) with attached belt clip
  • 16" 3.5mm-to-3.5mm cable (w/ locking-collar on one end)
  • 16" XLRM-to-3.5mm cable (locking-collar on 3.5mm connector)
  • Cold shoe mount adapter
  • 2 'AA' batteries
  • Zippered nylon pouch
  • User guide
  • Warranty information
  • Firmware update notice

Customer reviews for Shure SLXD5-G58

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Shure SLXD5-G58

Russ B.

Product Research

Features

Overview: The Shure SLXD5 Single-Channel Portable Digital Wireless Receiver is a portable digital wireless receiver for on-camera cold shoe mounting and audio bag use. It's designed to work in tandem with select Shure SLXD Wireless Transmitters such as the SLXD3 Wireless Transmitter (sold separately). The SLXD5 operates on the G58 band (470-514 MHz) and is housed in a durable and ergonomic aluminum chassis with integrated belt-clip. A 1/4" threaded mounting socket on the back of the Receiver allows it to be mounted on top of a camera using the supplied non-conductive cold shoe mount adapter. The SLXD5 offers 44 MHz tuning bandwidth with 32 available channels per frequency band (region dependent for both). Up to 10 compatible systems can be used per 6 MHz TV band and 12 systems per 8 MHz band.

Transparent Audio: The SLXD5 features transparent 24-bit digital audio processing with an extended 20 Hz to 20 kHz frequency range (microphone dependent) and 118 dB of dynamic range.

Multi-Mic Mode: The Shure SLXD5's IR sync lets you quickly and easily scan and sync with a compatible SLXD wireless transmitter (not included). The Receiver's Mult-Mic Mode lets you configure multiple transmitters for simultaneous audio reception during recording.

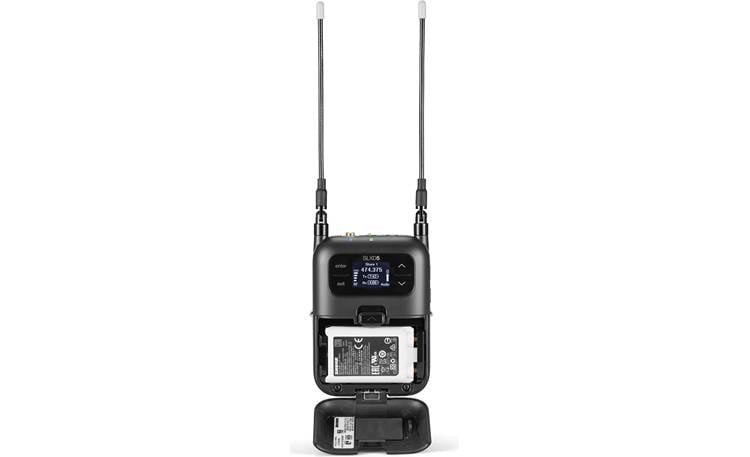

Power: The Shure SLXD5 can be powered by either the included 2 AA batteries or the optional Shure SB903 rechargeable battery, which uses the Shure SBC 10-903 charger (battery and charger sold separately). Either battery type can provide up to 5.5 hours of operation time.

Frequency Setup: Shure wireless systems organize RF bands into predefined Groups and Channels. A Group is a set of compatible frequencies within a frequency band. A single frequency within a Group is a Channel. The Receiver and Transmitter should be tuned to the best available Channel within its Group.

  • Group Scan: The Receiver will automatically scan for the group with the most available channels, if applicable.
  • Channel Scan: Scans for available channels within the selected group.
  • Manual Setup: Lets you manually tune the receiver to a desired frequency.

Controls, Indicators, & Connections:

  • Antennas: Two attached 4.5" 1/4-wave antennas that can be swiveled and rotated for optimum reception.
  • Power: The top panel includes an On/Off slide-switch with corresponding Power LED that will light green when the Receiver is on, red for a low battery, and yellow for charging.
  • RF LED: Lights blue when the Receiver is paired to a Shure SLXD transmitter and is receiving an RF signal.

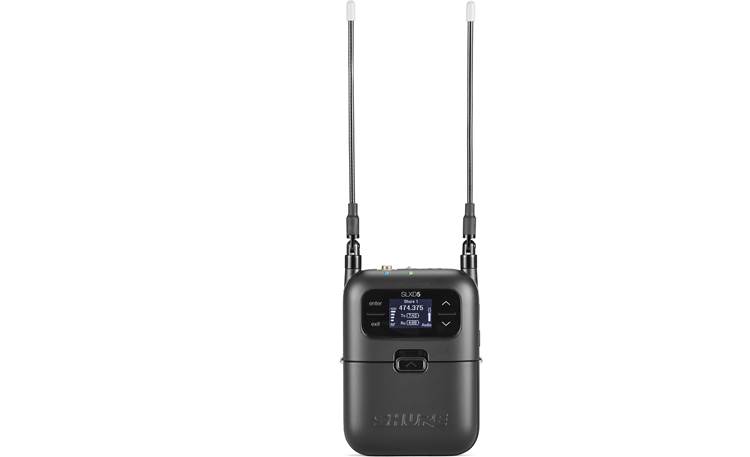

  • Display: A front-panel OLED screen with corresponding navigation Arrows, Enter and Exit buttons lets you clearly navigate through the menu options. If using an optional Shure SB903 rechargeable battery, the OLED screen will display the remaining battery life in hours and minutes.
  • Camera Output: A 3.5mm camera audio output can provide a balanced Mono signal or Dual Mono signals (menu selectable). A Mic/Line option in the menu lets you select the signal type.
  • Headphones: A 3.5mm audio output lets you connect a pair of headphones for audio monitoring.
  • IR Window: The IR Window gets aligned with a compatible transmitter's IR port for IR syncing. It can also be used for sending frequency lists to other portable receivers when using Multi-Mic Mode.
  • Sync Button: Activates IR sync.

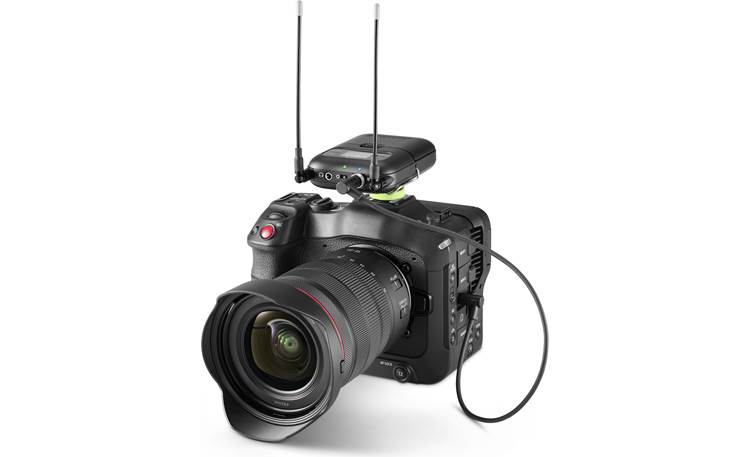

  • Tripod/Camera Mount: A 1/4" internally-threaded socket on the back of the SLXD5 lets you mount it to an optional tripod or to a camera using the included non-conductive cold shoe adapter.

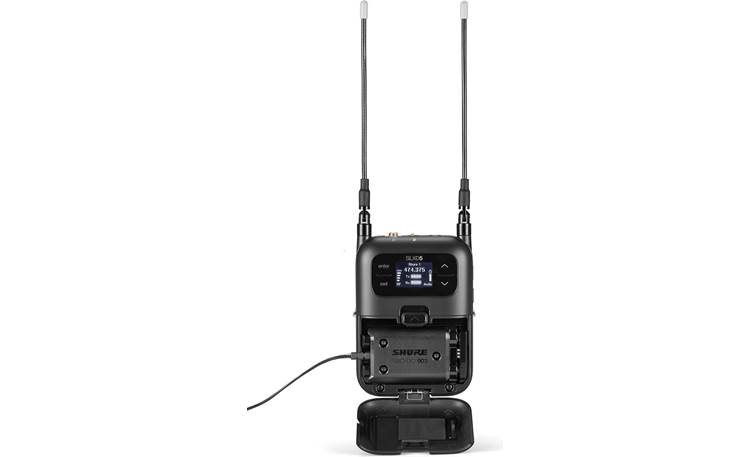

  • USB-C: A USB-C socket on the bottom of the receiver can be used to power the SLXD5, charge the battery (when using an optional Shure SB903 rechargeable battery), and update the firmware.

Compatibility: The Shure SLXD5 Wireless Receiver is designed to work with select Shure SLXD transmitters such as the SLXD3 Transmitter (sold separately).

Specifications:

  • Frequency Band: 470-514 MHz (G58)
  • Audio Frequency Response: 20 Hz to 20 kHz
  • Antennas: (2) 1/4-wave whip
  • Camera Output Impedance:
    • Balanced Mono Line: 450 ohms
    • Balanced Mono Mic: 240 ohms
    • Dual Mono Line: 400 ohms
    • Dual Mono Mic: 200 ohms
  • Battery Type: (2) AA Batteries (1.5A) included, optional Shure SB903 rechargeable
  • Battery Runtime: Up to 5.5 hrs. (Alkaline & SB903)
  • Dimensions: Width = 2.85", Height = 4.21"/8.90" (including antennas), Depth = 1.06"
  • Weight: 6.42 oz. (without batteries)
