Shure UA864US Wall-mounted RF antenna for wireless systems — 470-698MHz (White)

Name: Shure UA864US
Brand: Shure
SKU: 183UA864
Price: 532.0 USD
Availability: InStock

Item # 183UA864

This versatile compact antenna provides wideband RF coverage for select Shure wireless microphone systems.

Front

1/3

2/3

Only at Crutchfield

3/3

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

This versatile compact antenna provides wideband RF coverage for select Shure wireless microphone systems.

Item # 183UA864

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$532.00

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-555-9369

by Crutchfield's Bob Bihlmayer

Strengthen your signal

Shure's UA864US antenna provides wideband RF coverage for select Shure wireless microphone systems, with a coverage pattern of up to 100 feet that greatly extends the range of your system for large stages or rooms. A four-position gain switch with LED indicators lets you dial in the signal level.

Blends into your environment

The antenna mounts to walls or ceilings using the included bracket kit. Its low profile and neutral white housing blend into most environments, and the housing can be painted for a perfect match. Its two built-in BNC connectors are positioned 90 degrees apart for maximum flexibility in aiming the antenna.

Product highlights:

range: 100 feet
four-position RF gain switch with pad/boost and LED indicators
attached BNC cable for surface or through-wall cable routing options
surface-mountable with included bracket
matte white paintable housing
impedance: 50 ohms
dimensions: 6.93"W x 2.04"H x 7.22"D (with bracket)
weight: 17.2 oz.
warranty: 2 years
MFR # UA864US
Item # 183UA864
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Shure UA864US owner's manual

Wideband antenna
Mounting bracket (attached to antenna)
User guide (Eng/Span/Fren/Others)
Warranty information

Researched by Crutchfield's Russ B.

Product Research

Features

Overview: The Shure UA864US antenna is designed to provide wideband RF coverage for select Shure wireless microphone systems operating in the 470-698MHz frequency range. The antenna has a coverage pattern of up to 100˚, and includes a 4-position RF Gain switch that can provide -20dB, -10dB, 0 (default), or +10dB of signal gain. Five corresponding LEDs indicate the signal level, with -20dB, -10dB, 0dB, +10dB, and RF Overload.

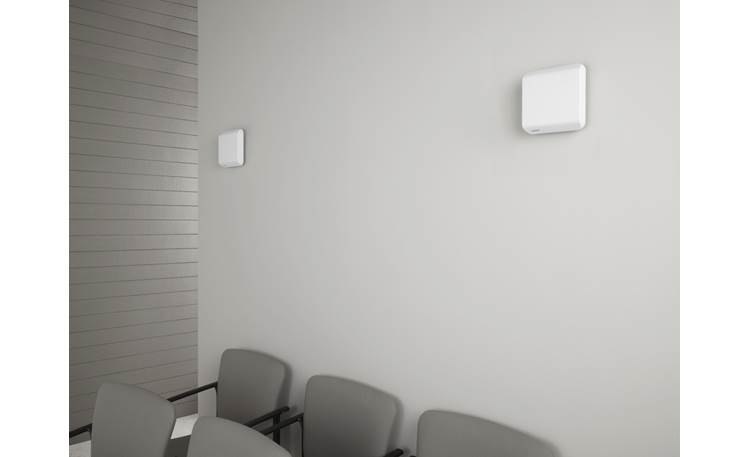

Mounting: The UA864US antenna can be installed on a wall or ceiling, even metal surfaces, using the provided mounting bracket. Its low-profile design and neutral-white chassis allow it to blend in with most conference or board rooms, and can be painted to match the decor.

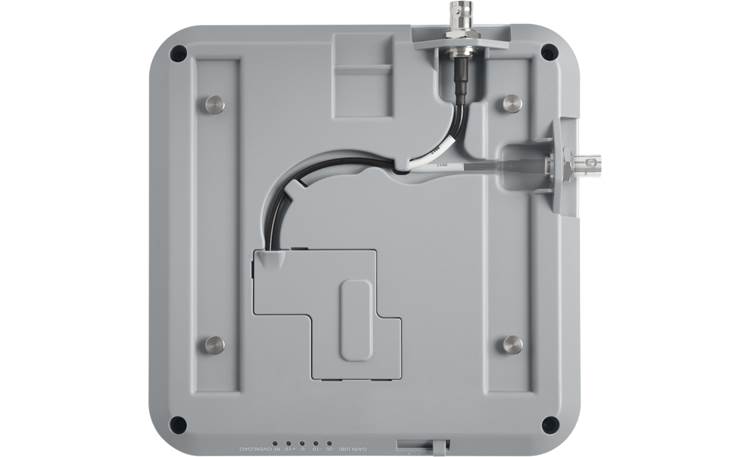

Connection: The UA864US features a built-in BNC connector that can be affixed in either of two locations, 90˚ apart from each other, for optimal antenna aiming and installation.

Specifications:

Frequency Range: 470-698MHz
Connector Type: BNC
Impedance: 50Ω
Power Requirement: 10-15VDC/75mA bias on coaxial connection
Reception Pattern: 100˚
Antenna Gain: 2.5dBi (on axis, 0dB Gain setting)
Switchable Signal Gain: +10dB, 0dB, -10dB, -20dB
RF Overload Threshold (LED): -15dBm
Operating Temperature: 20˚F - 120˚F
Storage Temperature: -20˚F - 165˚F
Dimensions (w/bracket): W = 6.93", H = 2.04", D = 7.22"
Weight: 17.2 oz.
