About the Atlona AT-HDR-EX-100CEA-KIT
Product highlights:
- audio/video signal extender system
- send audio and video over long distances through CAT-6 cable
- includes an HDMI-to-CAT-6 transmitter and a CAT-6-to-HDMI receiver
- supports 4K video transmission up to 100 meters/328 feet at up to 60 frames per second
- also supports 1080p video transmission up to 100 meters/328 feet
- ideal for homes, office meeting spaces, auditoriums, houses of worship, and classrooms
HDMI features:
- HDCP 2.2, HDMI 2.0b, and HDBaseT™ compliant
- supports HDR-encoded content
- supports a broad range of audio formats, including stereo PCM, Dolby Atmos®, and DTS:X™

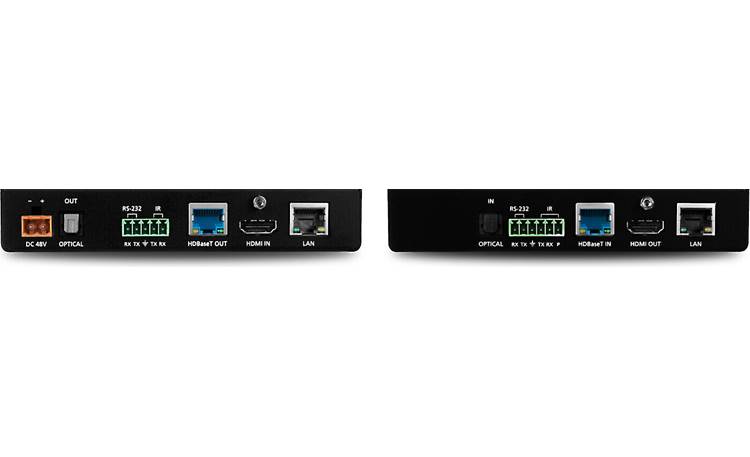

Power and connections:
- bi-directional infrared (IR) pass-through for relaying remote control commands (Phoenix-style connectors)
- IR emitter included
- supports third-party controllers via RS-232 (Phoenix-style connectors)
- Toslink optical connection for sending audio from the TV back to the transmitter
- AC power supply included
- the transmitter provides power for the receiver via Power over Ethernet (PoE)
- eliminates the need for a separate AC power connection at both locations
- each unit has an Ethernet port for connection to a Local Area Network (LAN)
- each unit has a front-panel USB port for firmware updates
Dimensions and other info:
- 5-3/4"W x 1-1/16"H x 3-3/4"D (transmitter)
- 5-3/4"W x 1-1/16"H x 3-13/16"D (receiver)
- weight: 14.1 oz. (each)
- wall/table mounting brackets included
- warranty: 3 years
- MFR # AT-HDR-EX-100CEA-KIT
- Item # 189AHE1CEK
What's in the box:
Atlona AT-HDR-EX-100CEA-KIT owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Transmitter module
- Receiver module
- One 5-pin Euroblock connector
- One 6-pin Euroblock connector
- One IR emitter
- 4 Mounting brackets
- 8 Mounting screws
- +48VDC Power supply
- Installation guide
More details on the Atlona AT-HDR-EX-100CEA-KIT
Product Research
Features
Overview: The Atlona AT-HDR-EX-100CEA-KIT is an HDBaseT extender kit for HDMI, power, and control. It features a transmitter and a receiver module that let you transmit ultra-high-definition 4K/60 video, embedded audio, and IR/RS-232 control information up to 330 feet via HDBaseT signal extension using CAT6a or CAT7 cable (sold separately).
4K HDR: HDR and 4K/60 4:4:4 video content requires data rates up to 18Gbps, presenting a significant challenge for extending over HDBaseT. The HDR-EX-100CEA-KIT can achieve this by applying visually lossless video compression technology with no latency, allowing transmission of HDR and 4K/60 4:4:4 signals over a single category cable while maintaining pristine image quality.
Applications:
- Residential Installations: The AT-HRD-EX-100CEA-KIT is designed for AV systems with the latest UHD and HDR sources, such as Ultra HD Blu-Ray players along with compatible TVs and projectors.
- TV Showrooms: The HDBaseT extender kit can be used to reliably distribute HDR and UHD sources to televisions, properly demonstrating the quality and appeal of 4K and HDR programming.
- Professional AV Applications: The Atlona extender kit is ideal for full-motion, highly detailed 4K graphics presentations, 3D renderings, simulations, and more.
Transmission Distances:
- 4K/UHD:
- CAT5e: Up to 295'
- CAT6/6a/7: Up to 330'
- 1080p:
- CAT5e: Up to 330'
- CAT6/6a/7: Up to 330'
HDMI Specification: The AT-HRD-EX-100CEA-KIT is HDMI 2.0b and HDCP 2.2 compliant.
PoE: The HDBaseT extender kit Transmitter includes a +48VDC power supply that powers the Transmitter, along with providing Power over Ethernet (PoE) to the included Receiver, eliminating the need for a separate power supply for the Receiver.
- Note: Never connect Power over Ethernet (PoE) ports on one device to non-powered Ethernet ports on other devices or damage may occur. PoE ports are designated BLUE, all other color Ethernet ports are non-PoE.
Multi-Channel Audio: The AT-HRD-EX-100CEA-KIT can pass-through multi-channel audio formats, supporting PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X.
HDMI Signal Regeneration: The Atlona extender kit addresses the lack of support for the HDMI clock stretching protocol required in HDBaseT extenders. It also allows legacy HDMI sources such as cable set-top boxes to be used in newer systems.
ARC (Audio Return Channel): The AT-HDR-EX-100CEA-KIT provides easy and convenient integration of television audio for over-the-air broadcasts, OTT (Over-The-Top) media services, and more. The extender kit features an HDBaseT return audio pathway from a television to an AV receiver, and includes a Toslink optical digital input on the Receiver and a Toslink optical digital output on the Transmitter module.
Firmware Update: A mini-B USB port on both the Transmitter and Receiver can be used for firmware updates.
Mounting: Both Transmitter and Receiver modules include mounting brackets, allowing them to be mounted to a vertical or horizontal flat surface.
Specifications:
- Resolution:
- Video: 4096x2160 @24/25/30/50/60Hz, 3840x2160 @24/25/30/50/60Hz, 2048x1080p, 1080p @23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @25/29.97/30Hz, 720p @50/59.94/60Hz, 576p, 576i, 480p, 480i
- VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800, 1280x768, 1152x768, 1024x768, 800x600, and 640x480
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-Bit, 10-bit, and 12-bit
- Audio Specifications:
- Audio Pass-Through: LPCM 2.0, LPCM 5.1, LPCM 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-Master Audio, DTS:X
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Depth: Up to 24-bit
- Dimensions:
- Transmitter: Width = 5.74", Height = 1.02", Depth = 3.74"
- Receiver: Width = 5.74", Height = 1.02", Depth = 3.81"
- Weight:
- Transmitter: 0.886 lbs.
- Receiver: 0.873 lbs.
