Features

Overview: IsoTek EVO3 Syncro power cables are designed to replace the cheap power cables that are included in the box of most audio/video components. Syncro power cables have a unique in-line DC-cancelling circuit that eliminates transformer hum from the mains, as well as double-shielded conductors for enhanced performance. These cables are recommended for CD players, music servers, preamps, DACs, small to medium power amplifiers, and many other home electronics. This EVO3 Syncro power cable is 2.0 meters (6'-7") in length, with a standard US 3-pin plug and an IEC C-15 connector.

Syncro Circuit: The Syncro Circuit located midway between the connectors cancels any DC voltage on the mains that causes an offset on the sine wave. The circuit is housed in an anti-resonant aluminum case. As the sine wave travels through the circuit, it rebalances it on the zero volts line to create a perfectly symmetrical sine wave. The Syncro Circuit dramaticlly reduces or eliminates transformer hum and provides significant improvements in sound quality. It also adds some protection from current peaks up to 300 amps for up to 10msec.

Construction: EVO3 Syncro power cables feature three parallel silver-plated Ohno Continuous Cast (OCC) copper conductors. The conductors are precisely wound inside the jacket with a slight rotational twist to reject RFI and EMI noise. The individual parts of the cable include:

• Conductors: The three conductors (3.0sqmm) are made of silver-plated Ohno Continuous Cast copper with square strands that group closer together in a square configuration to provide exceptional conductivity. The larger conductors provide higher amperage for better power delivery.
• Dielectric: Each conductor has a Teflon FEP (Fluorinated Ethylene Propylene) dialectric. This chemically inert insulation provides an excellent shielding over a wide frequency range. FEP is low in friction, but highly resistant to cracks due to stress, making it a safe insulation from temperature extremes.
• Filler: Spaces around the conductors are filled with multi-strand cotton, which gives the cable internal strength. It also provides additional insulation, and reduces contact noise that may introduce unwanted electrical noise.
• Wrap: The conductors are wrapped with mylar prior to applying the outer jacket. The mylar wrap and cotton filler secure the construction, and form a barrier shield with the PVC jacket to maintain the cable's exceptional dielectric properties.
• Shield: An oxygen free copper braided shield rejects Common Mode (RFI) noise.
• Jacket: The highly flexible PVC outer jacket makes the cable easier to handle, and provides additional strength.

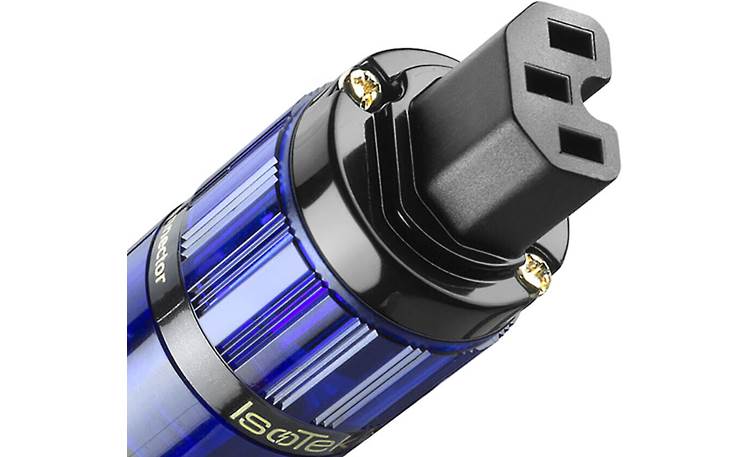

• Terminals: IsoTek power cables are terminated with audiophile-grade molded connectors with solid OFC (99.98% copper) and 24ct gold-plated conductors. Gold-plated conductors provide a high level of conductivity, and are less likely to tarnish over time.

Specifications:

• Conductor Material: Silver-plated Ohno Continuous Cast (OCC) copper conductors
• Dielectric Constance: 2.1
• Power Rating: 16 Amp
• Cable Length: 2.0 meters (6'-7")
• Cable Outer Diameter: 12.5mm (0.49")
• Connectors: Standard US 3-pin plug -- IEC C15 connector
• Connector Diameter: 1.6"
