Features

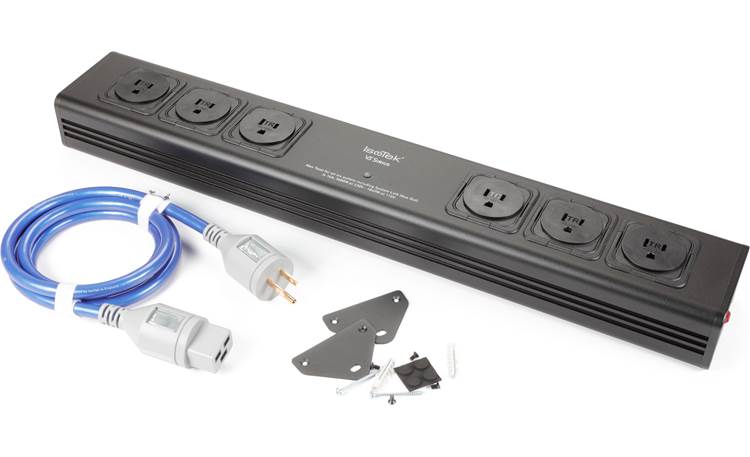

Overview: The IsoTek V5 Sirius power bar helps improve the performance of your audio and video components by significantly removing noise from the AC line. Sirius' high-frequency delta filter eliminates both Differential mode and Common mode interference, and reduces Radio Frequency Interference (RFI) by up to 45dB. It has six 3-pin US power outlets that are connected individually to the central circuit board, so there's no cross-contamination between components. Sirius also provides protection from power surges and voltage spikes. Its dimensions are 3-7/16"W x 2-5/16"H x 21-3/4"L, and it weighs --- pounds. V5 Sirius comes with a 1.5-meter IsoTek EVO3 Premier power cable in the box.

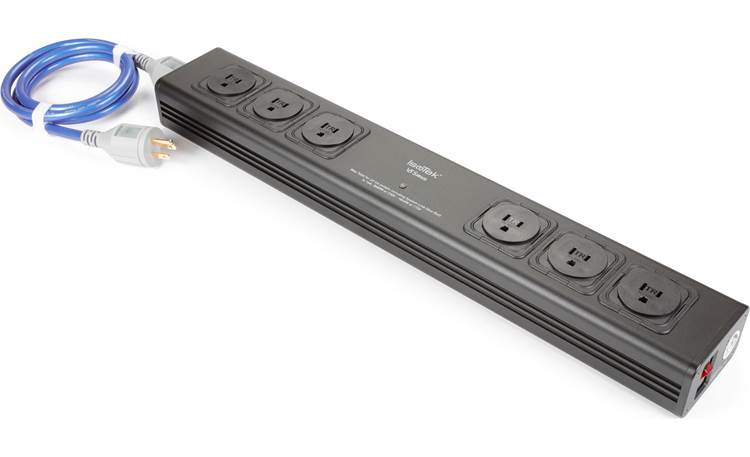

Design: The V5 Sirius power bar is housed in a sleek extruded aluminum chassis for long lasting performance. The unit can be wall mounted behind your equipment cabinet using the included hardware, or simply placed behind your audio rack. It has six top-mounted US 3-prong outlets, and a fused IEC C-20 power inlet for the included Initium power cable. Its Delta Filter topology offers -23dB mains noise reduction at 10kHz, -40dB at 100KHz, and -60dB at 1 MHz. Isotek's KERP© (Kirchoff's Equal Resistance Path) ensures equal power delivery and equal resistance to all outlets. Sirius is internally wired using multiple, but minimal strands of 6N OFC (oxygen-free copper) with 99.9999% purity. The conductors are protected by an FEP (Fluorinated Ethylene Propylene) dielectric.

Noise Filtering: V5 Sirius is designed specifically for connecting home audio and video equipment. It features highly effective noise filtering that eliminates Common Mode and Differential Mode, and reduces RFI by up to 35dB. Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI) are detrimental to audio and video performance. Filtering out noise can enhance the sound of your audio components and improve the picture on your TV or projector.

Isolated Outlets: The six AC outlets are all individually connected back to the power input, rather than in series with the big copper bus bars typically found in lesser power strips. The individual connections eliminate any harmful Differential Mode cross contamination between your connected components. In addition, the V5 Sirius uses a star grounding scheme for each outlet to effectively prevent ground loops.

Protection: V5 Sirius not only reduces noise, it also protects your valuable component from dangerous power surges and voltage spikes. The power bar offers up to 54,000A of instantaneous protection, with IsoTek's unique sequential protection system.

System Link: The V5 Sirius power bar features a System Link outlet (Neutrik powerCON connector) on one end for connecting additional units together in a daisy-chain configuration. When a System Link cable (sold separately) is connected, the entire system maintains a starred-earth reference (grounding), and eliminates the need for multiple wall outlets.

Resettable Fuse: The power bar is equipped with a 16A resettable fusing system, which is a significant upgrade over standard glass fuses due to increased contact area.

Premier Power Cable: The V5 Sirius power bar comes with the IsoTec EVO3 Premier 1.5-meter power cable. Premier power cables use three parallel conductors (2.0 sqcm each) that are precisely wound inside the jacket with a slight rotational twist to reject RFI and EMI noise. The conductors are made of 99.9999% silver-plated, oxygen-free copper for excellent conductivity. The EVO3 Premier power cable is terminated with audiophile-grade molded connectors with solid OFC and 24ct gold-plated conductors (IEC C-19 + US 3-pin plugs).

Specifications:

• Number of Outlets: 6 (US-standard 3-pin)
• Mains Inlet: 16A IEC C-20
• Mains Voltage: 100-240 VAC / 50-60 Hz
• Maximum Current: 16 Amps HRC
• Total Wattage: 1840 watts (@115V); 3680 watts (@230V)
• Surge Protection: 54,000 Amps
• Dimensions: Width 3.462", Height 2.3", Length 21.75" (w/o cables)
• Weight: __ pounds
