About the Kicker 46CSC654

Product highlights:
- Featured in our article: Best car speaker lines for 2025
- 2-way 6-1/2" speakers (pair)
- polypropylene woofer cone with polyester foam surround
- 1/2" polyetherimide (PEI) balanced dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 40-20,000 Hz
- sensitivity: 90 dB
- top-mount depth: 1-13/16"
- grilles included
- warranty: 2 years
- MFR # 46CSC654
- Item # 20646CC654
What's in the box:
Kicker 46CSC654 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Grilles

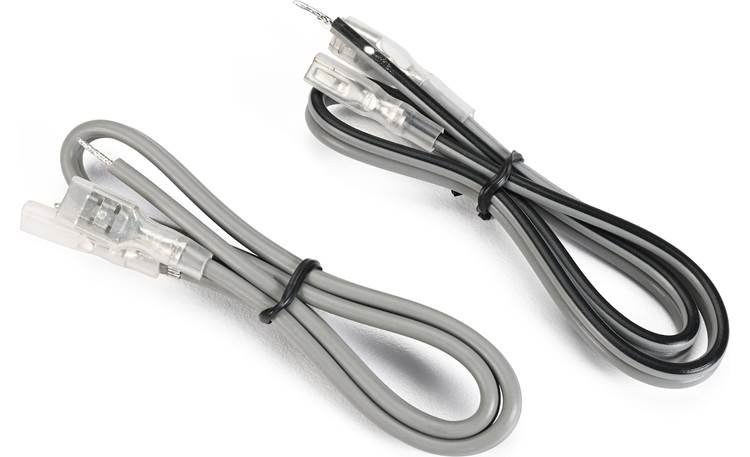

- Two 12" Lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- 4 Red plastic wire caps
- Eight 1-1/8" Screws
- Owner's manual (English/ Spanish/ German/ French)
Featured video:
More details on the Kicker 46CSC654

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Polyester Foam | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 1/2" Balanced Dome | |
Tweeter Material | PEI | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black. Steel mesh, Plastic frame | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 40 - 20k Hz | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 1 13/16 | |
Bottom-mount Depth (Inches) | 2 3/16 | |
Cutout Diameter or Length (inches) | 4 7/8 | |
Mounting Height (Inches) | 0.445 | |
Frame Width | 6.242 | |
Frame Length | 6.242 |
Product Research
Features
Polypropylene Woofer Cones: The Kicker CS-series speakers feature polypropylene woofer cones, resistant to moisture and the temperature extremes found in automotive applications.
Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.
Balanced-Dome Tweeters: Each speaker uses a ½" PEI (polyetherimide) balanced-dome tweeter. A balanced dome tweeter has a dome placed inside a cone, with equal reproduction area given the cone and dome sections.
Mounting Applications: Kicker describes these speakers as 6½. With the extended mounting "ears" around the perimeter of the frame, they also fit many 6¾ locations. Because Kicker also makes a dedicated 6¾ in this series (item number 20646CC674) that is typically a better fit, we don't recommend the CSC65 for those applications.
The Kicker 46CSC654 replaces these items:
- polypropylene woofer cone with polyester foam surround
- 1/2" polyetherimide (PEI) balanced dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
- polypropylene woofer cone with polyester foam surround
- 1/2" polyetherimide (PEI) balanced dome tweeter
- handles up to 100 watts RMS (300 watts peak power)
