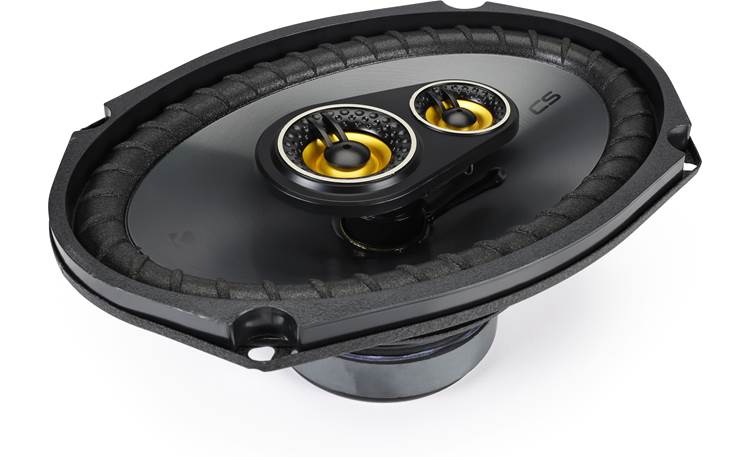

About the Kicker 46CSC6934

Product highlights:
- 3-way 6"x9" speakers (pair)
- polypropylene woofer cone with polyester foam surround
- 2" midrange driver
- 1/2" polyetherimide (PEI) balanced dome tweeter
- handles up to 150 watts RMS (450 watts peak power)
- frequency response: 30-20,000 Hz
- sensitivity: 92 dB
- top-mount depth: 3-3/16"
- grilles included
- warranty: 2 years
- MFR # 46CSC6934
- Item # 20646CC693
What's in the box:
Kicker 46CSC6934 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 3-way speakers
- 2 Grilles

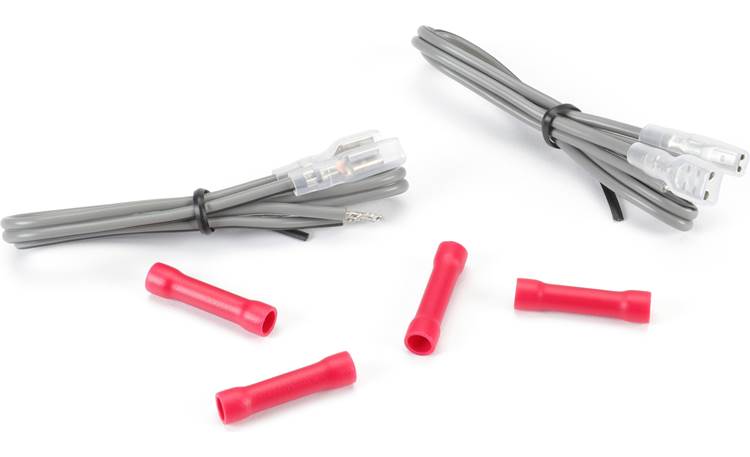

- Two 12" Lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- 4 Red plastic wire caps
- Eight 1" Screws
- Owner's manual (English/ Spanish/ German/ French)
Featured video:
More details on the Kicker 46CSC6934

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 3-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Polyester Foam | |
Midrange Design | 2" Balanced Dome | |
Midrange Material | PEI | |
Tweeter Design | 1/2" Balanced Dome | |
Tweeter Material | PEI | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black, Steel mesh, Plastic frame | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 92 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 30 - 20k Hz | |
Maximum RMS Wattage | 150 | |
Peak Power Handling (Watts) | 450 | |
Top-mount Depth (Inches) | 3 3/16 | |
Bottom-mount Depth (Inches) | 3 11/16 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.493 | |
Frame Width | 6.654 | |
Frame Length | 9.189 |
Product Research
Features
Polypropylene Woofer Cones: The Kicker CS-series speakers feature polypropylene woofer cones, resistant to moisture and the temperature extremes found in automotive applications.
Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.
Balanced-Dome Tweeters and Midrange: Each speaker uses ½" and 2" PEI (polyetherimide) balanced-dome drivers for the tweeter and midrange. A balanced dome has a dome placed inside a cone, with equal reproduction area given the cone and dome sections.
The Kicker 46CSC6934 replaces these items:
- 6"x9" polypropylene woofer with ribbed polyester foam surround
- 1/2" PEI balanced dome tweeter and supertweeter
- handles up to 90 watts RMS (360 watts peak power)
- polypropylene woofer cone with polyester foam surround
- polypropylene midrange driver and 1/2" polyetherimide (PEI) balanced dome tweeter
- handles up to 150 watts RMS (450 watts peak power)
Loading...
Loading accessories...
Customer Q&A
37 questions already asked
Loading...
Loading articles...
'21 Subaru Outback These replaced the Front door speakers and I couldn't be more happy! The stock speakers were pretty trash, even driving these with the stock head unit they sound amazing. They have nice crisp highs and rounded out the missing bass from factory.
Corey from Malvern, PA
