About the Kicker 46HDBL69
Bag lids with a bonus
Bag lids with a bonus

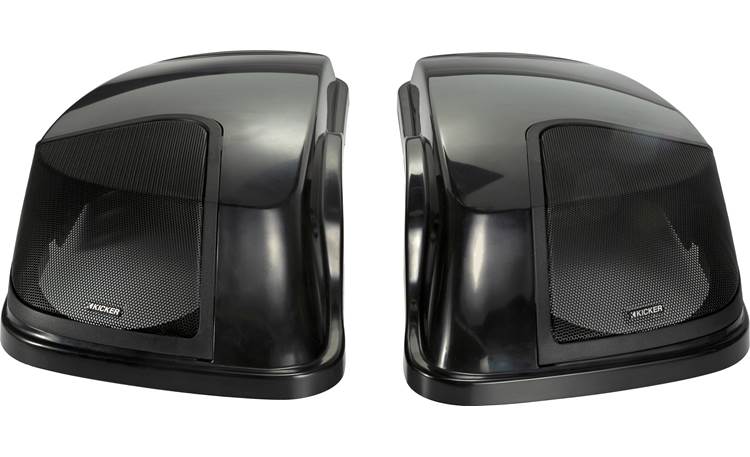

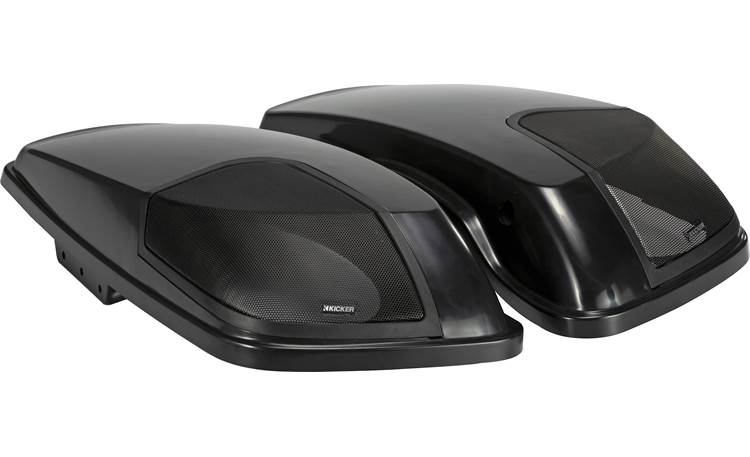

These rugged, great-looking bag lids will add sound and style to your 2014-up Harley-Davidson. Available unloaded or loaded with Kicker PS Series 6”x9” speakers, they're custom-design for your motorcycle and they're built to last.
Choose loaded or unloaded
Whether you add your own speakers to the unloaded models or go with the all-Kicker models, the top-mount speaker design will stay stable with help from the custom-tooled speaker nuts. A water drain is incorporated into the lid, so you won't have to worry about a little rain when you're rockin' down the highway. The lids install using your existing bag hardware and locks, and while the gloss black finish looks great, you can also paint them to match the look of your bike.
Product highlights:
- loaded bag lids for 2014-up Harley-Davidson motorcycles
- includes Kicker PS-Series 6"x9" speakers
- top-mount speaker location
- custom-tooled speaker nuts hold speaker in place
- pre-terminated and loomed speaker wire included
- designed with built-in water drain
- surface can be painted to match your motorcycle
- underhung bracketing joins bag and speaker mount
- works with existing bag hardware and locks
- warranty: 2 years
- MFR # 46HDBL69
What's in the box:
Kicker 46HDBL69 owner's manual
- This package contains 3 individually boxed items along with installation instructions in the main box:
- Left Baglid Cover:
- 1 Baglid enclosure cover
- 1 Grille
- 1 Mounting bracket
- One 62" rubber gasket
- 2 Speaker nuts
- 1 Rubber hole-plug
- Two 3/4" machine-screws
- Two 3/4" screws
- Three 1/2" screws
- 5.5' Speaker harness (4-pin Molex on one end / female slip-on terminals on other end)
- 2 Rubber grommets
- 6 Adhesive wire-tie mounts
- Ten 6" wire ties
- Right Baglid Cover:
- 1 Baglid enclosure cover
- 1 Grille
- 1 Mounting bracket
- One 62" rubber gasket
- 2 Speaker nuts
- 1 Rubber hole-plug
- Two 3/4" machine-screws
- Two 3/4" screws
- Three 1/2" screws
- PS69 Speakers:
- Two 2-way speakers
- 2 Grilles
- 2 Kicker logo grille badges
- Two 12" Lengths of speaker wire (tinned bare wire on one end and female quick slides on the other)
- 4 Red plastic butt connectors
- Eight 1-1/8" Self-tapping screws
- 8 Speed clips
- Manual (English/ Spanish/ German/ French)
Featured video:
Customer reviews for Kicker 46HDBL69
Loading...
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker 46HDBL69
Product Research
Features
Baglids: The Kicker 46HDBL69 Harley-Davidson Bag Lid kit lets you add a pair of Kicker PS69 6x9" speakers to your 2014-up Harley-Davidson saddle bags. The 46HDBL69 has been engineered for superior durability and sound quality, and includes gasket material, metal-mesh grilles, along with mounting hardware. The bag lids feature a smooth, black primered finish that can be used as is, or can be painted to match your bike. The 46HDBL69 lets you use your existing bag hardware and locks (if present).

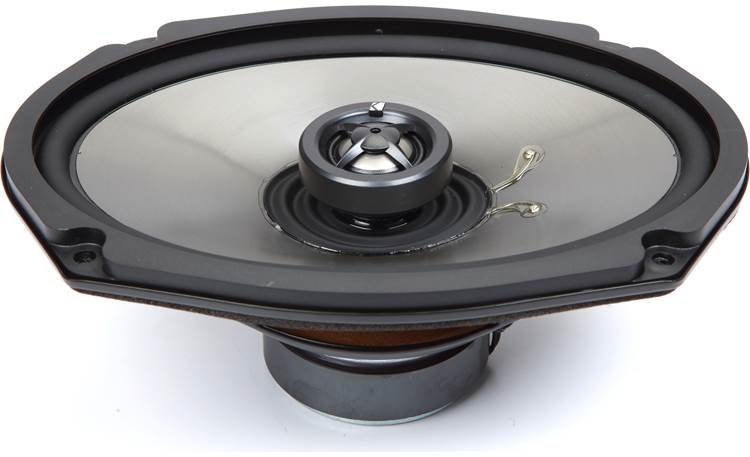

PS69 Speakers (40PS692): The Kicker PS69 (PowerSports Series) speakers are designed to be thoroughly weather-proof, making them ideal for motorcycle bag-lid installation. As the largest speakers in the Powersports line, the PS69s use heavy-duty ceramic magnets to handle more power and reproduce clear music at loud volumes to overcome the noise generated at highway speeds. The PS69 speakers are 2Ω, so they are compatible with upgraded amps and offer maximum power output. Designed as high-efficiency speakers, the PS69s provide sound quality without over taxing the vehicle's electrical system.
- Note: The factory radio will need to be "flashed" by an authorized Harley-Davidson dealer or with the optional TRHDP programmer (sold separately) to recognize the new rear speakers, if none were present originally.
Compatibility: 2014-up Harley-Davidson with factory saddle bags.
Wiring: The Kicker 46HDBL69 Bag Lid kit includes a 5.5' speaker harness that plugs into the factory 4-pin harness underneath the seat. Pre-loomed left and right speaker wires get run to each saddle bag and include pre-crimped female slip-on terminals for attaching to each speaker. Included wire ties and adhesive wire-tie mounts let you secure each speaker wire in place.
