About the Kicker 46CWTB102
Compact enclosure, powerful bass
Compact enclosure, powerful bass

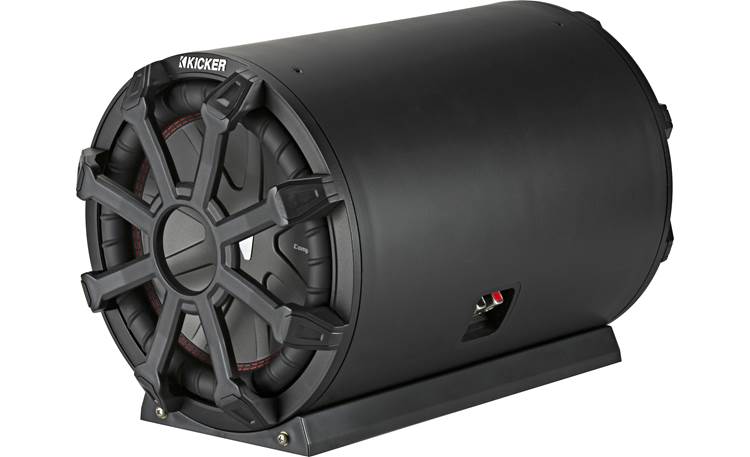

Whatever kind of music you like, you need a good subwoofer to make it sound great. When you also need to keep your cargo space, you need a powerful, compact solution. Kicker's 45CWTB102 tube subwoofer gives you window-rattling bass and impressive power handling in a surprisingly small package. The enclosure includes a 10" subwoofer and a second passive sub (called a "passive radiator") which reacts to the air pressure produced by the active sub, creating lots more bass without any port noise.
10" bass cannon
Kicker built the 46CWTB102 tube-shaped enclosure out of tough ABS plastic that'll stand up to the stresses of car life. The tubular shape pushes bass frequencies into the air like a cannon, pumping deep, resonant sound into your vehicle and your ears. You can mount the enclosure vertically or horizontally, letting it tuck neatly into a corner of your trunk or cargo area. Spring-loaded wiring terminals make it easy to connect the wiring from your amp.
Kicker speaker quality
You need a high-quality speaker to maximize the sound and impact of your music, and Kicker loads this enclosure with a 10" CompR sub that's ready to step up and bring the boom. Its polypropylene cone and Santoprene rubber surround maintain their shape to give you the serious bass you expect from Kicker. The speaker handles up to 400 watts RMS so you're sure to get the impact you want, while its 2-ohm impedance gets max power from your mono amp. The package includes mounting hardware and brackets for easy installation.
Product highlights:
- sealed enclosure with one 10" CompR subwoofer and 10" passive radiator
- tube-shaped ABS plastic enclosure
- vertical or horizontal mounting
- mounting brackets, grilles, and hardware included
- passive radiator augments bass response without port noise
- 2-ohm impedance
- power handling: 400 watts RMS (800 watts peak)
- frequency response: 25-500 Hz
- sensitivity: 85.7 dB
- dimensions: 10-5/8"W x 16-9/16"D
- enclosure height: 10-3/4" (horizontal), 17-1/16" (vertical)
- warranty: 1 year
- MFR # 46CWTB102

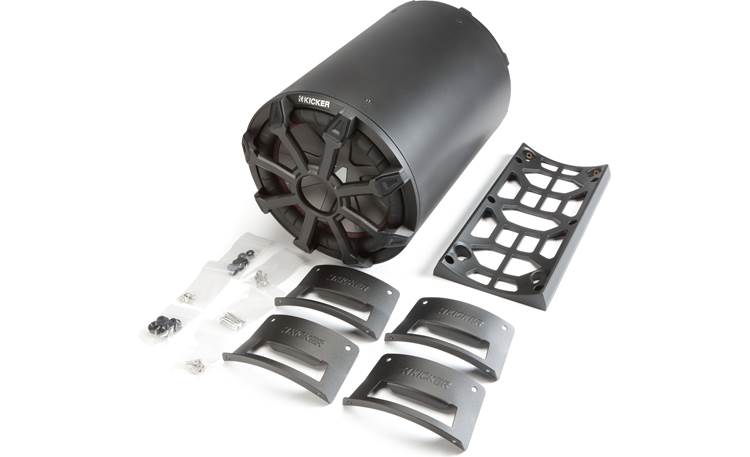

What's in the box:
Kicker 46CWTB102 owner's manual
- Bass tube
- 2 Vertical mounting brackets
- 1 Horizontal mounting base
- 1 Horizontal mount hook
- 1 Horizontal mount plate
- Six 1" Phillips-head screws
- Three 1/2" Socket-head screws
- Four 3/8" Socket-head screws
- 13 Nylon flat-washers
- 8 Stick-on hole-covers
- Owner's manual
Reviews (30)
Customer reviews for Kicker 46CWTB102
Loading...
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Kicker 46CWTB102
Features & specs
| General | ||
|---|---|---|
| Woofer Size (inches) | 10 | |
| Speakers Per Box | 1 | |
| Woofer Material | Polypropylene | |
| Enclosure Type | Passive Radiator | |
| Color | Black | |
| Pieces in System | 1 | |
| Width (inches) | 10-5/8 | |
| Height (inches) | 10-5/8 | |
| Depth (inches) | 15-3/4 | |
| Connector Type | --- | |
| Frequency Response | 25-500 Hz | |
| Power Range (Watts RMS) | 400 | |
| Maximum Wattage | 800 | |
| Sensitivity | 85.7 dB | |
| Impedance | 2 ohms | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Overview: The Kicker CWTB102 is a weather-proof passive subwoofer featuring a CompR driver and a passive Reflex woofer designed to be installed on Jeeps, boats, and UTVs. The 2 ohm subwoofer can handle 400 watts RMS/800 watts peak power and can be mounted either vertically or horizontally.
Enclosure: The CWTB102 is housed in a thick ABS enclosure with heavy-duty grills for a weather-proof subwoofer solution that's at home in the outdoors. Connection to the sub is done with two recessed spring-loaded terminals, providing a positive electrical connection while being protected from the elements. The sub also includes all hardware for mounting it either vertically, with 17-1/16" of mounting height, or horizontally, with 10-3/4" of height.
CompR: The Kicker sub enclosure includes a CompR mounted on one end and a passive Reflex Subwoofer on the other end. The CompR features a powerful ceramic magnet, an advanced suspension, and superior heat management for long life. Kicker uses its signature red stitching on the woofer for an outstanding bond between the driver's Santoprene surround and Polypropylene cone, providing reliable performance under extreme conditions. Kicker's SoloKon technology joins the cone to the vented back brace, both cooling the motor and eliminating distortion, for clean smooth bass. The built-in Reflex Subwoofer uses the same cone and surround materials as the active sub and is mounted on the opposite end, providing even deeper louder bass than with just the active driver.
Specifications:
- Enclosure Type: Reflex
- Driver: 10" CompR
- Power (RMS/Peak): 400/800 Watts
- Impedance: 2Ω
- Sensitivity (dB 1w/1m): 85.7
- Dimensions: Length - 15.750", Diameter - 10.625"
The Kicker 46CWTB102 replaces these items
Kicker 45CWTB102
- sealed enclosure with one 10" CompR subwoofer and passive radiator
- mounting brackets, grilles, and hardware included
- power handling: 400 watts RMS (800 watts peak power
