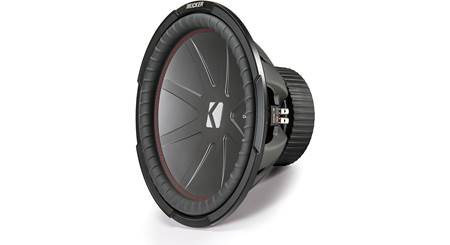

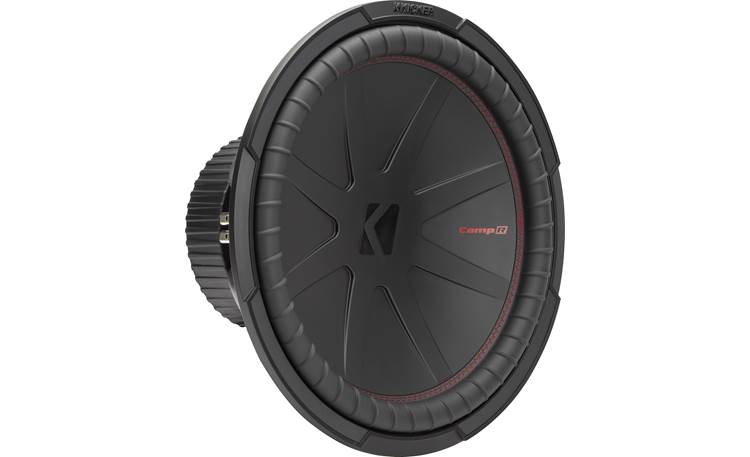

About the Kicker 48CWR154

Product highlights:
- 15" subwoofer with dual 4-ohm voice coils
- injection-molded polypropylene cone
- double-stitched Santoprene rubber surround
- steel basket
- power handling: 800 watts RMS (400 watts per coil)
- peak power handling: 1600 watts
- frequency response: 25-500 Hz
- sensitivity: 89.4 dB
- top-mount depth: 7.9125"
- sealed box volume: 1.8 - 3.0 cu. ft.
- ported box volume: 3.0 - 5.0 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 48CWR154
- Item # 20648CR154
What's in the box:
Kicker 48CWR154 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 15" Dual 4-ohm voice coil subwoofer
- Kicker logo sticker
- 4 Adhesive backed screw covers
- Manual (English/ Spanish/ German/ French)
- Screw cover installation instructions
- Template on box
More details on the Kicker 48CWR154

Features & specs
Features and Specs | ||
---|---|---|
Size | 15-inch | |
Impedance (Ohms) | 2, 8 | |
Cone Material | Polypropylene | |
Surround Material | Santoprene Rubber | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
89.4 dB at 1 watt | |
Frequency Response | 25 - 500 Hz | |
Max RMS Power Handling | 800 | |
Peak Power Handling (Watts) | 1600 | |
Top Mount Depth (inches) | 7 15/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 13 3/4 | |
Frame Width | 15.375 | |
Frame Length | 15.375 | |
Vas (liters) | --- | |
Fs (Hz) | --- | |
Qts | --- | |
Xmax (millimeters) | --- | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 1.57 | |
Maximum Sealed Box Volume (cubic feet) | 3 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 3 | |
Maximum Ported Box Volume (cubic feet) | 5 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Dual Voice Coils: This woofer features dual 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.
Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 25% cooler than the previous model.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 1.8 ft³ to 3.0 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends the following ported enclosures:
- Minimum Enclosure Volume: 3.0 ft³ with a 15½" x 2¾" x 25¾" slot port
- Maximum Enclosure Volume: 5.0 ft³ with a 15½" x 3" x 22" slot port
The Kicker 48CWR154 replaces these items:
- injection-molded polypropylene cone with rubber surround
- power handling: 800 watts RMS
- frequency response: 25-500 Hz
