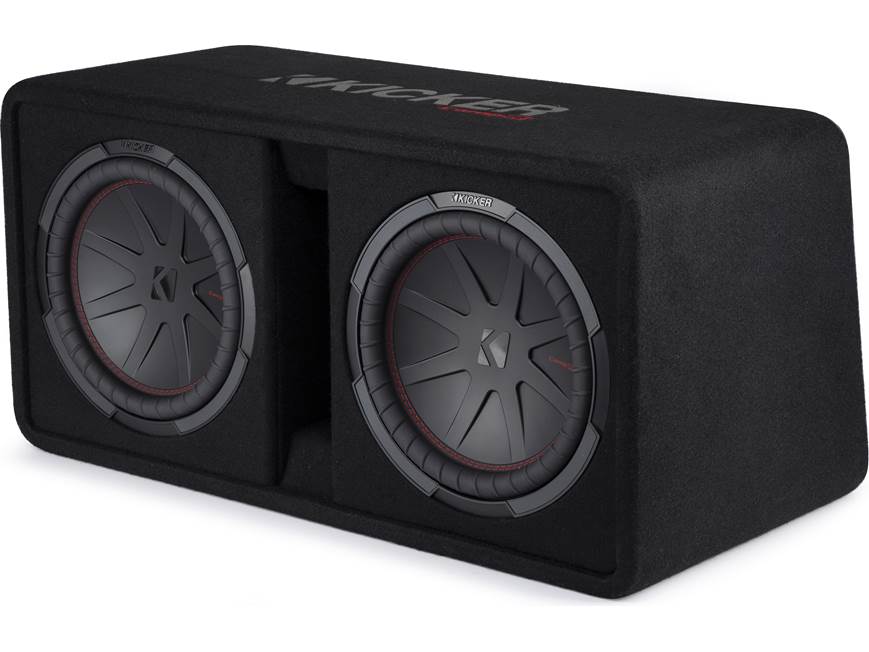

About the Kicker 48DCWR122

Product highlights:
- ported enclosure with two 12" CompR subwoofers
- MDF construction covered with carpet
- 2-ohm total impedance
- power handling: 1000 watts RMS (2000 watts peak)
- frequency response: 25-500 Hz
- sensitivity: 95.8 dB
- dimensions: 32.5"W x 16"H x 17"D1 x 13.75"D2
- warranty: 1 year
- MFR # 48DCWR122
- Item # 20648DR122
What's in the box:
Kicker 48DCWR122 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Ported enclosure loaded with two 12" CompR subwoofers
- 4 Mounting brackets
- Four 1" Pan head screws
- Eight 3/4" Flat head screws
- Specification chart
More details on the Kicker 48DCWR122

Features & specs
General | ||
---|---|---|
Woofer Size (inches) | 12 | |
Speakers Per Box | 2 | |
Woofer Material | IMPP | |
Enclosure Type | Ported | |
Color | Black | |
Pieces in System | 1 | |
Width (inches) | 32-1/2 | |
Height (inches) | 16 | |
Depth (inches) | 17 | |
Connector Type | Spring post | |
Frequency Response | 25-500 Hz | |
Power Handling (Watts RMS) | 1000 | |
Power Handling (Watts Peak) | 2000 | |
Sensitivity | 95.8 dB | |
Impedance | 2 ohms | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features
Woofers: The Kicker 48DCWR122 enclosure uses two 12" CompR series subwoofers. Each Kicker subwoofer features a polypropylene cone with a Santoprene surround. The surround and cone are attached using Kicker's signature red double stitching, providing an outstanding bond.
Enclosure: The ported enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look.
Forced Air Cooling: Kicker uses their SoloKon technology to join the cone to the vented back brace, creating a single integrated unit. This forces air through the motor assembly allowing it to run 25% cooler and helping eliminate distortion.
Speaker Terminals: A single pair of spring posts are mounted on the back of the enclosure (toward the right side) and will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
Power: The dual CompR subwoofers can handle up to 1000W RMS (2000W peak), and are wired for a 2Ω load at the single pair of spring posts.
Break-in Period: Due to the complex nature of Kicker CompR speakers, they require a break-in period in order to produce optimum low-bass response. The suspension system is very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. Once broken-in, the subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
The Kicker 48DCWR122 replaces these items:
- solid wood construction covered with carpet
- 2-ohm total impedance
- power handling: 400-1000 watts RMS (2000 watts peak power)
