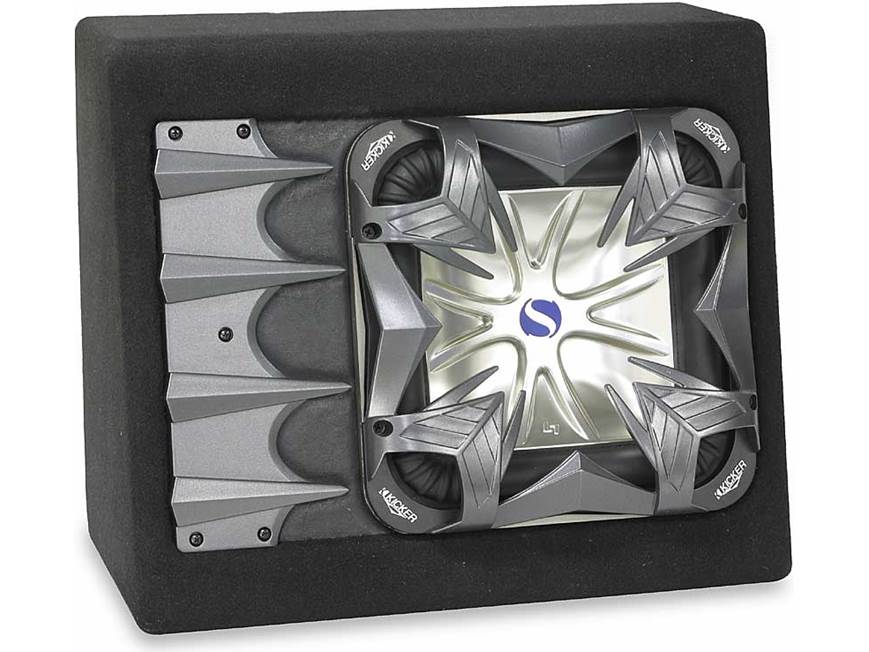

Kicker Solo-Baric 04TS10L7 Sealed truck enclosure
with 10" Solo-Baric L7 subwoofer

Item # 2064TS10L7

Do the math — add one 10" Solo-Baric L7 sub plus one slim-profile sealed truck enclosure.

Find what Fits your vehicle


Checking fit...

Do the math — add one 10" Solo-Baric L7 sub plus one slim-profile sealed truck enclosure.

Item # 2064TS10L7

Shop all Kicker Sub Boxes (Loaded)

About the Kicker Solo-Baric 04TS10L7

Steven Johnson
Do the math — add one 10" Solo-Baric L7 sub plus one slim-profile sealed truck enclosure. The total is the TS10L7, a high-performance bass machine that's perfect for behind-the-seat installation in your truck.

Got enough juice? Get an amp for your new sub Do the math — add one 10" Solo-Baric L7 sub plus one slim-profile sealed truck enclosure. The total is the TS10L7, a high-performance bass machine that's perfect for behind-the-seat installation in your truck.

The TS10L7 enclosure delivers big performance with its square 10" Solo-Baric L7 subwoofer. The L7 incorporates an aluminum-deposit polypropylene cone and Santoprene rubber surround in a massive aluminum frame for synapse-frying low-frequency impact.

The rock-solid, 3/4"-MDF truck box with its extra-thick baffle takes everything the L7 sub can dish out — your bass stays accurate and true even at the highest sound pressure levels. The enclosure is coated with black catalyzed polyurethane to protect against damage. Hook up some healthy amplification, and let this box take you to Bass City!

  • 10" Solo-Baric L7 subwoofer
  • sealed truck enclosure — 3/4" Medium Density Fiberboard (MDF) covered with rough-textured, black catalyzed polyurethane
  • frequency response 24-100 Hz
  • recommended power range 75-600 watts RMS
  • peak power handling 1,200 watts
  • two 2-ohm voice coils are wired in series to one set of 5-way binding posts (4-ohm mono impedance) — will accept banana plugs, dual banana plugs, spade lugs, bare wire or pin connectors
  • sensitivity 85 dB
  • 17-9/16"W x 14-3/4"H x 8"D (at top) to 10-1/4"D (at bottom)
  • warranty: 1 year

What's in the box:

  • 1 Truck-style enclosure loaded with one S10L7 square Solo-Baric 10" subwoofer
  • 4 Metal mounting brackets
  • Four 1-1/8" self-tapping screws
  • Eight 3/4" self-tapping screws
  • Installation Instructions
MFR #04TS10L7

Customer reviews for Kicker Solo-Baric 04TS10L7

Loading reviews...

Average review:

5.0 out of 5 stars
2 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Kicker Solo-Baric 04TS10L7

Pat M.

Features & specs

Woofer Size (inches) 10
Speakers Per Box ---
Woofer Material Mica-filled poly
Enclosure Type Sealed
Color Black
Pieces in System 1
Width (inches) 17-5/8
Height (inches) 14-3/4
Depth (inches) 10-1/4
Connector Type Spring posts
Frequency Response 24-100 Hz
Power Range (Watts RMS) 600
Maximum Wattage 1200
Sensitivity 86 dB
Impedance 4 ohms
Parts Warranty 1 Year
Labor Warranty 1 Year

Product Research

Specifications Note


Enclosure: The enclosure is constructed from non-resonant 3/4" Medium Density Fiberboard (MDF) and protected by a layer of rugged catalyzed polyurethane.

Dual Voice Coils: The woofer has two 2-ohm voice coils that are wired in series, presenting a 4-ohm mono load.

Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (or Sd) for a given size baffle, 16% to 20% more area than a conventional subwoofer. More cone area means the Solo-Baric L7 moves more air, resulting in louder, deeper bass.

Cone Materials: An aluminum deposit impregnated cone is used resulting in greater rigidity for less cone flex and less distortion. In addition, the cone is also very resistant to environmental extremes. A rear cone brace provides added strength and reduces cone flex under stress.

Surround: The tough, flexible santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is highly tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge, making separation between them virtually impossible.

Inverted Structural Dome: The Inverted Structural Dome replaces a conventional dustcap and locks into the cone for unmatched structural integrity and greatly reduced cone flexing/resonance.

Patented Enhanced BAM (Basket And Motor) Assembly: The cast aluminum basket features a low profile, open design to provide a solid anti-resonant foundation for the motor assembly.

Spider: The durable resin-impregnated poly-cotton spider provides precise coil alignment and critical cone motion control.

Voice Coil: The multi-layer voice coil and Kapton former create a superior magnetic field and effectively dissipate heat.

Chromed UniPlate Construction: The UniPlate construction combines the backplate and extended pole piece into a single unit to maximize magnetic efficiency and minimize alignment problems often caused by two-piece construction. The bottom of the UniPlate is chromed to provide enhanced heat transfer for cool operation and maximum power handling.

Bumped Back Plate: The deep bumped back plate lets the voice coil reach maximum excursion without bottoming-out.

Perimeter Venting: The perimeter venting cooling system continuously pumps hot air away from the voice coil, replacing it with cool outside air.

Gaskets: The one piece front beauty ring and separate one-piece rear gasket insure an airtight seal and provide enhanced cosmetics.

Tinsel Leads: The speaker features sleeved high-power tinsel lead wires to resist breakage and power-robbing resistance losses.

Spring Posts: The spring posts will accept bare wire and pin connectors.

Specifications Note

Sensitivity: In the features and specs section, the sensitivity is automatically rounded up to 86 dB. The enclosure actually has a sensitivity rating of 85.6 dB.



  • Overall: W=17.563", H=14.75", D1=10.209", D2=7.959"
    • Depth Note: The depth measurements include the protrusion of the grille on the front, and the speaker terminals on the back. The enclosure by itself has the following depth measurements: D1=9.25", D2=6.25".
