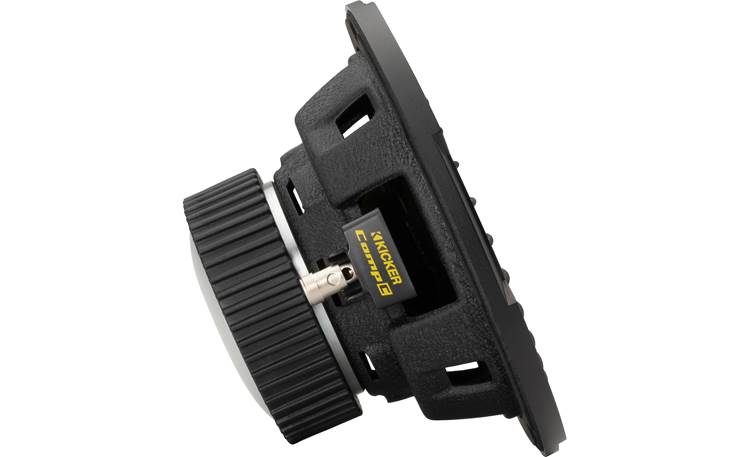

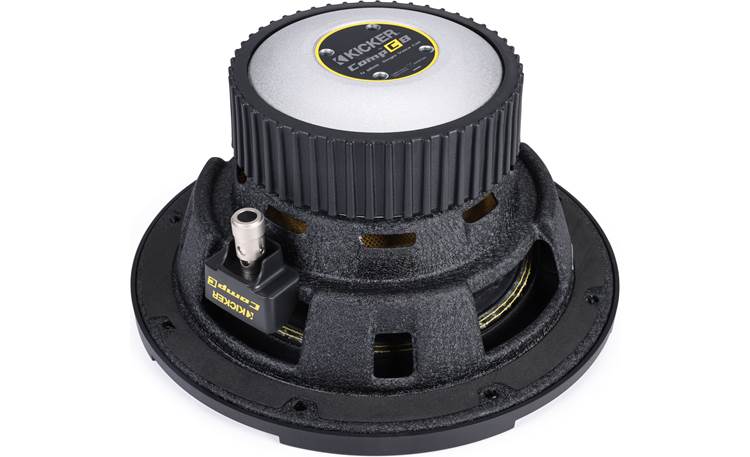

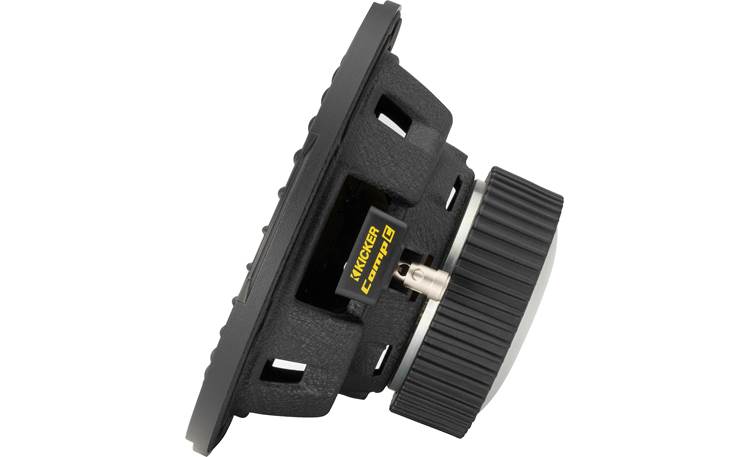

About the Kicker 50CWCS84

Product highlights:
- 8" 4-ohm subwoofer
- injection-molded polypropylene cone
- ribbed foam surround
- power handling: 200 watts RMS
- peak power handling: 400 watts
- frequency response: 30-500 Hz
- sensitivity: 85.6 dB
- top-mount depth: 3.86"
- sealed box volume: 0.50 - 1.20 cu. ft.
- ported box volume: 0.66 - 1.20 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 50CWCS84
- Item # 20650CWS8
What's in the box:
Kicker 50CWCS84 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 8" 4-ohm single voice coil subwoofer
- Information sheet with QR code to owner's manual
- 2 Kicker decals
- Template on box lid
Featured video:
More details on the Kicker 50CWCS84

Features & specs
Features and Specs | ||
---|---|---|
Size | 8-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Injection Molded Polypropylene | |
Surround Material | Polyurethane | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
85.6 dB at 1 watt | |
Frequency Response | 30 - 500 Hz | |
Max RMS Power Handling | 200 | |
Peak Power Handling (Watts) | 400 | |
Top Mount Depth (inches) | 4 1/4 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 6 15/16 | |
Frame Width | 8.55 | |
Frame Length | 8.55 | |
Vas (liters) | 13.3223 | |
Fs (Hz) | 42.8 | |
Qts | 0.7275 | |
Xmax (millimeters) | 11.125 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 0.5 | |
Maximum Sealed Box Volume (cubic feet) | 1.2 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 0.66 | |
Maximum Ported Box Volume (cubic feet) | 1.2 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Speaker Terminals: The terminals are spring loaded for solid connections with speaker wire up to 10-gauge.
Recommended Sealed Box Volume:
- Minimum Volume: 0.5 ft³
- Maximum Volume: 1.2 ft³
Recommended Vented Box Volume:
- Minimum: 0.66 ft³; 1½" x 8" port opening; 18" port length
- Maximum: 1.2 ft³; 1½" x 8" port opening; 12¼" port length
The Kicker 50CWCS84 replaces these items:
- injection-molded polypropylene cone with ribbed foam surround
- power handling: 200 watts RMS (400 watts peak)
- top-mount depth: 3-7/8"
