About the Kicker KSS690
Product highlights:
- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6"x9" polypropylene woofer cone with rubber surround
- 1" silk dome tweeter with four mounting options
- external crossover network with 3 tweeter levels (0, +4.5, +9 dB)
- handles up to 150 watts RMS (300 watts peak power)
- can be installed as separate components or as 2-way speakers
- frequency range: 30-21,000 Hz
- sensitivity: 92 dB
- woofer top-mount depth: 2-15/16"
- impedance: 4 ohms
- grilles included
- warranty: 2 years
- MFR # 51KSS6904
- Item # 20651KSS69
What's in the box:
- Two KSS690 Woofers
- Two phase plugs (installed)

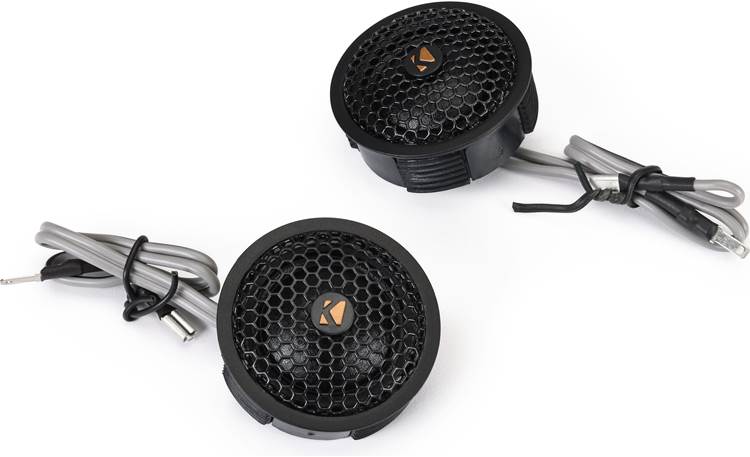

- Two 1" Tweeters (each with 6" Wire attached)
- 2 Woofer mounting brackets

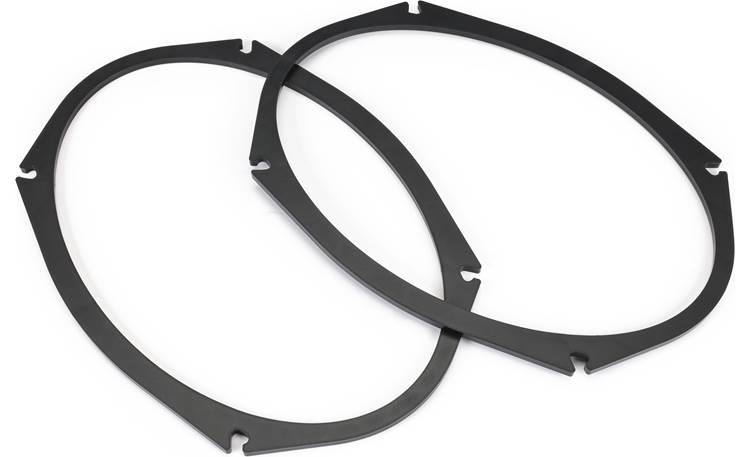

- 2 Woofer bottom mount spacers

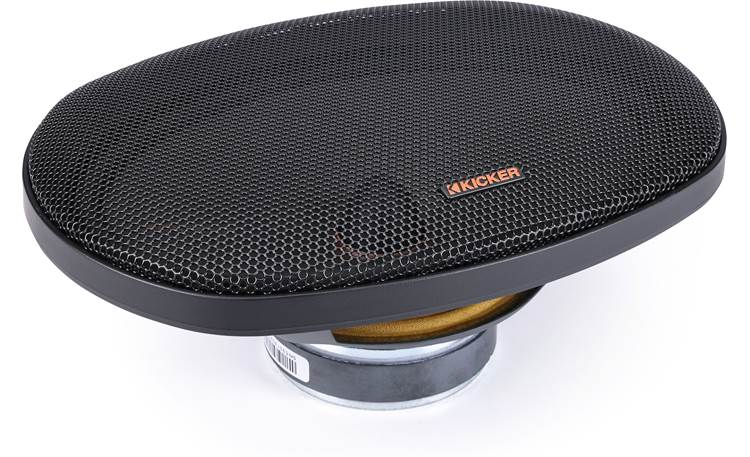

- Two woofer grilles
- Two grille mounting rings
- Two crossovers
- Two upper tweeter mounting posts
- Two lower tweeter mounting posts
- Two tweeter housings
- Two tweeter housing washers

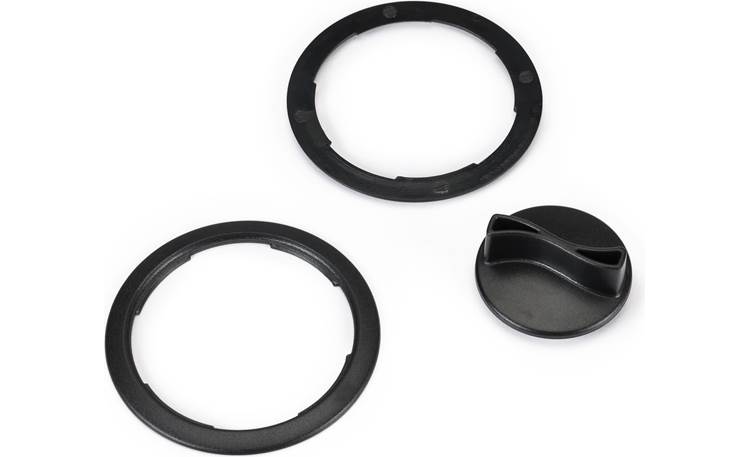

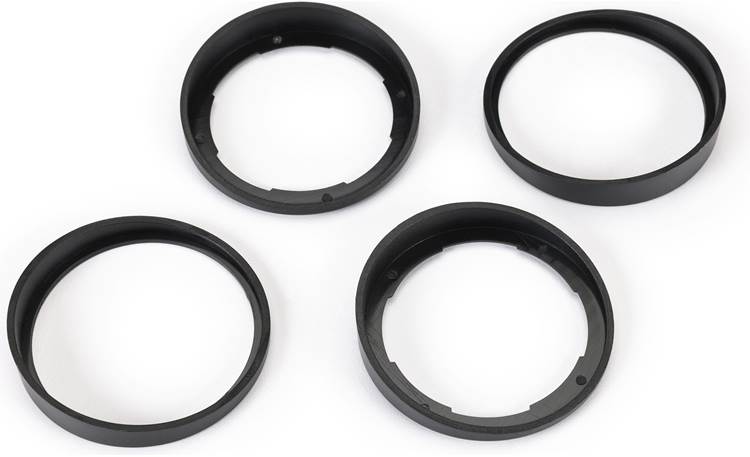

- Two flush mount rings (tweeter)

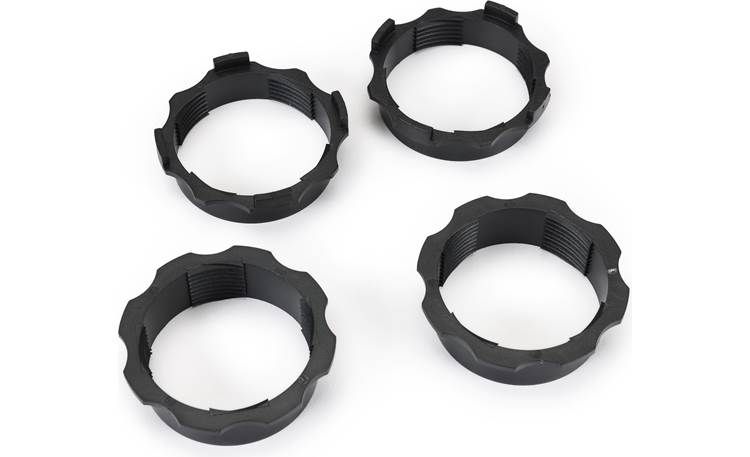

- Two front angle rings (tweeter)
- Two back angle rings (tweeter)
- Two short mounting nuts (tweeter)
- Two long mounting nuts (tweeter)

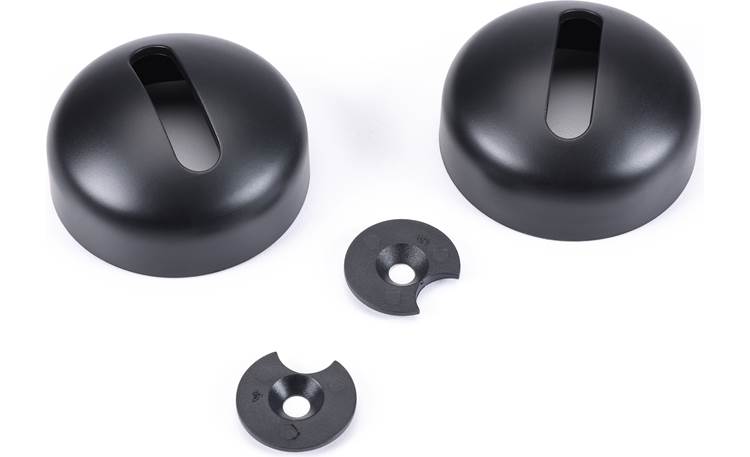

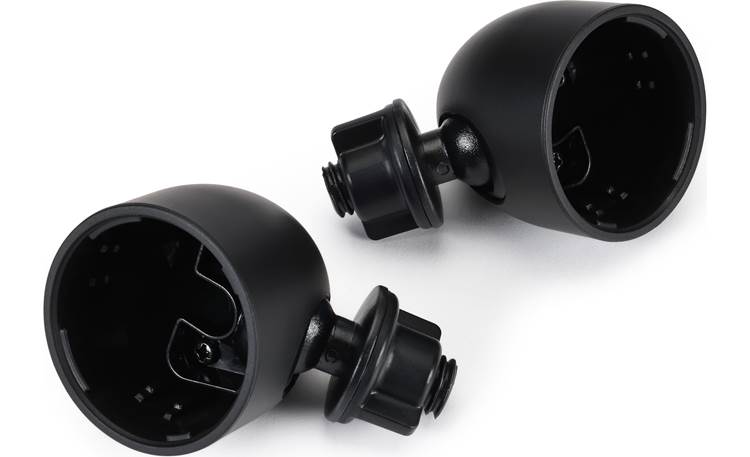

- Two surface mount pods
- Two pod nuts
- Tweeter tool
- Two 10" Zip ties
- 2 Adhesive backed foam pads
- Grille putty

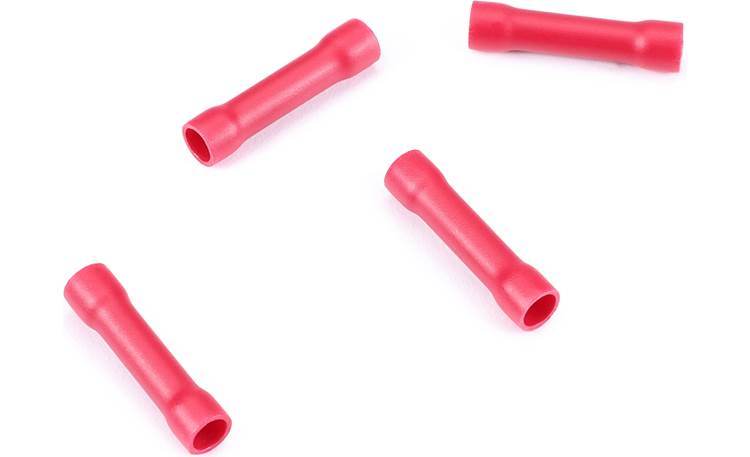

- Four red plastic wire caps
- Two M4x7mm Machine screws
- Twelve 1-1/8" Screws
- Quick-Start guide (English/ Spanish/ German/ French)
- Woofer template
More details on the Kicker KSS690
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Polypropylene | |
| Woofer Surround | Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | 1" Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black, Steel mesh, Plastic frame | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 92 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 30 - 21k Hz | |
| Maximum RMS Wattage | 150 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 2 15/16 | |
| Bottom-mount Depth (Inches) | 3 3/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.268 | |
| Frame Width | 6.652 | |
| Frame Length | 9.217 | |
Product Research
Features

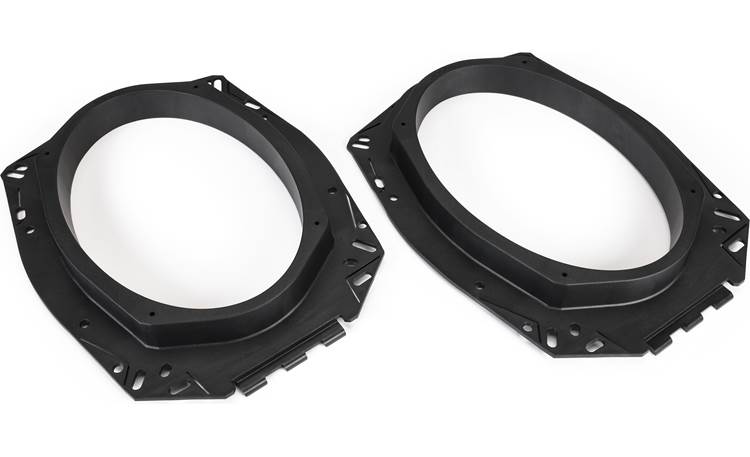

Multipurpose Brackets: In addition to fitting standard 6x9 applications, Kicker includes a pair of mounting brackets to install the woofers in several vehicle-specific applications. Please enter your vehicle information to confirm fit.
Spacers: The included 6x9 spacers can be used to adjust the woofers' depth when top or bottom mounting. The adjusted measurements become:
- Top Mount:
- Depth: 2.744"
- Height: 0.429"
- Bottom Mount:
- Depth: 3.293"
- Tweeter Protrusion: 0.0"
Tweeter Mounting Options: The tweeters include brackets to allow multiple mounting configurations; flush-mount, angle-mount, and surface-mount. The surface mount pods are mounted to a threaded, hollow shaft and have a ball-and-socket joint, so they can be turned in any direction, and angled to approximately 40˚.
Tweeter Dimensions:
| Flush | Angle | Surface | |
|---|---|---|---|
| Mounting Height | 0.25" | 0.625" | 3.15" |
| Mounting Depth | 0.6" | 0.65" | 0.75" |
| Frame Diameter | 2.045" | 2.1" | 2.3" x 1.9" |
| Cutout Diameter | 1.662" | 1.787" | 0.475" |
Coaxial Tweeter Mount: In addition to standard tweeter mounting options, the included tweeter mounting posts let you mount the tweeters directly to the center of the woofers, giving you a standard coaxial speaker. The tweeter can be angled up to 12° when coaxially mounted. When the tweeter is attached to the woofer the mounting height increases to 0.597" (top mount) and the tweeter protrusion increases to 0.37" (bottom mount).

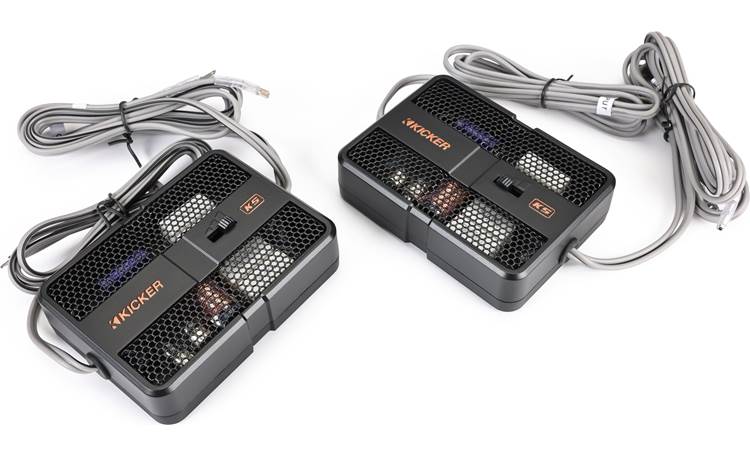

Crossovers: The component system includes 12 dB/octave passive crossovers for the tweeters. (Both the woofers and tweeters are wired through the crossovers, but only the tweeters are filtered.) The crossover point is 4,000 Hz. A switch on each crossover allows you to adjust the tweeter output; 0 dB, +4.5 dB, or +9 dB. Each crossover has input and output wires are attached; the 34" woofer outputs have quick slides that connect directly to the woofer terminals and the 32" tweeter outputs have quick slides that mate to the terminals on the wire attached to the tweeters. The 34" input wires are not terminated. The crossovers' dimensions are:
- Length: 4"
- Width: 2⅞"
- Height: 1⅛"
The Kicker KSS690 replaces these items:
- 1" silk dome tweeter with four mounting options
- handles up to 150 watts RMS (300 watts peak power)
- can be installed as separate components or as 2-way speakers
Loading...
Loading accessories...
Customer Q&A
3 questions already asked
Loading...
Loading articles...
. The by 9s are getting 65w rms from a CXA360.4 and the tweets are getting 50w rms from a Key 200.4. Crisp, clean, loud highs with a LR HP crossover at 4K. The 6x9s are crossed over at 71 and 314. The mid bass just thumps.
Brady from CHARLOTTE, MI
