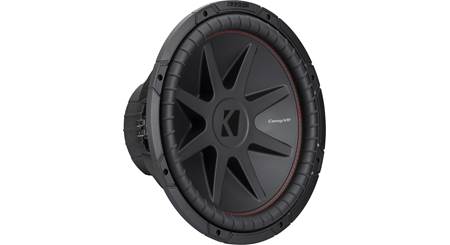

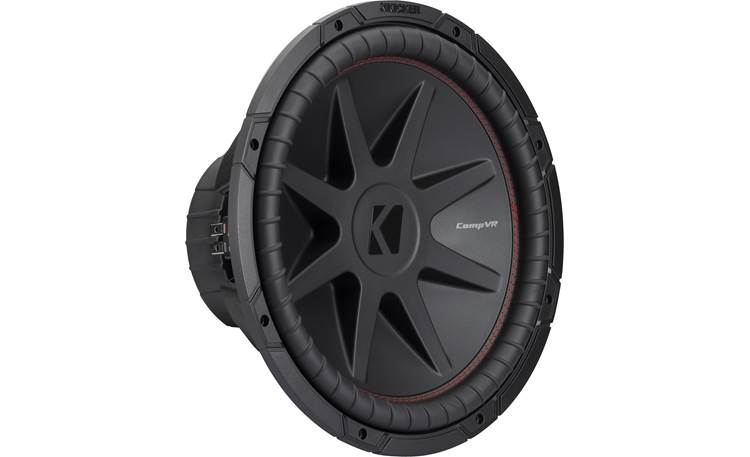

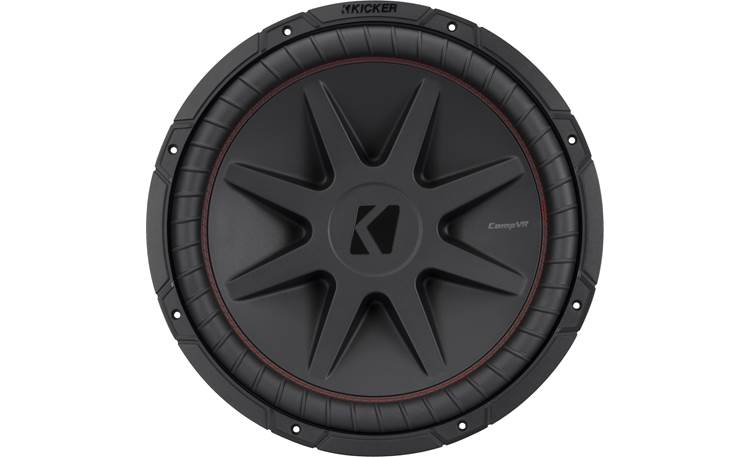

About the Kicker CompVR 52CVR154
Product highlights:
- 15" subwoofer with dual 4-ohm voice coils
- injection-molded polypropylene cone
- ribbed Santoprene rubber surround
- power handling: 700 watts RMS (350 watts per coil)
- 1,400 watts peak power handling
- frequency response: 25-500 Hz
- sensitivity: 89.2 dB
- top-mount depth: 8-3/16"
- sealed box volume: 1.8-5.2 cu. ft.
- ported box volume: 3.0-5.0 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 52CVR154
- Item # 20652CR154
What's in the box:
Kicker CompVR 52CVR154 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 15" Dual 4-ohm voice coil subwoofer
- Kicker logo stickers
- Dimensions sheet with manual QR Code
- Template on box lid
More details on the Kicker CompVR 52CVR154
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 15-inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | Polypropylene | |
| Surround Material | Rubber | |
| Basket Material | Steel | |
| Grille | None included | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
89.2 dB at 1 watt | |
| Frequency Response | 25 - 500 Hz | |
| Max RMS Power Handling | 700 | |
| Peak Power Handling (Watts) | 1400 | |
| Top Mount Depth (inches) | 8 1/4 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 13 3/4 | |
| Frame Width | 15.438 | |
| Frame Length | 15.438 | |
| Vas (liters) | --- | |
| Fs (Hz) | --- | |
| Qts | --- | |
| Xmax (millimeters) | --- | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | 1.8 | |
| Maximum Sealed Box Volume (cubic feet) | 5.2 | |
| Ideal Ported Box Volume (cubic feet) | N/A | |
| Minimum Ported Box Volume (cubic feet) | 3 | |
| Maximum Ported Box Volume (cubic feet) | 5 | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
Product Research
Features
Dual Voice Coils: This woofer features dual 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.
Rubber Magnet Boot: A black rubber boot covers the outside edge of the magnet structure to improve the cosmetics of the woofer and protect the magnet during installation. The boot is removable if needed for tight installations.
Break-in Period: The high-performance suspension system makes the speaker very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.
Sealed Enclosures: Sealed enclosures provide the most control over a woofer and provide accurate sonic reproduction, making them suitable to all types of music. Kicker recommends sealed enclosures from 1.8 ft³ to 5.2 ft³.
Vented Enclosures: Vented (or ported) enclosures typically provide better overall efficiency than sealed so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. Kicker recommends ported enclosures in the following range:
- Minimum Enclosure Volume: 3 ft³ with a 15½" x 2¾" x 25¾" slot port
- Maximum Enclosure Volume: 5 ft³ with a 15½" x 3" x 22" slot port
The Kicker CompVR 52CVR154 replaces these items:
- polypropylene cone with ribbed Santoprene rubber surround
- power handling: 500 watts RMS (1000 watts peak)
- top-mount depth: 8-3/16"
