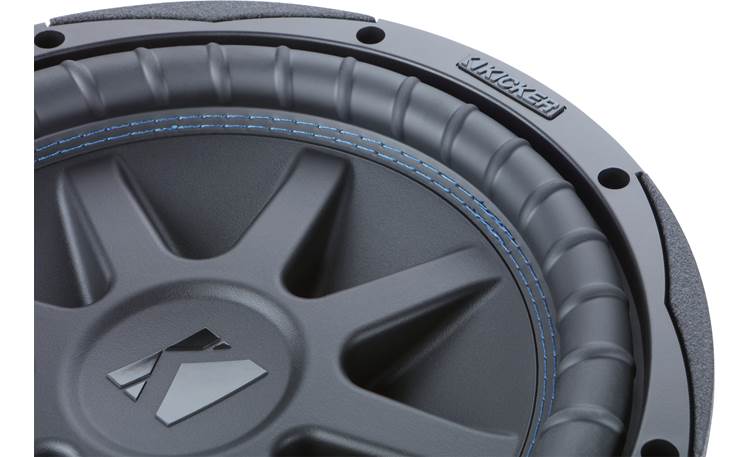

About the Kicker 50CVX104

Product highlights:
- 10" subwoofer with dual 4-ohm voice coils
- injection-molded polypropylene cone
- ribbed Santoprene rubber surround
- cast-aluminum basket
- power handling: 600 watts RMS (300 watts per coil)
- peak power handling: 1200 watts
- frequency response: 24-500 Hz
- sensitivity: 85.7 dB
- top-mount depth: 5.9"
- sealed box volume: 0.8 - 1.25 cu. ft.
- ported box volume: 1.25 - 1.75 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 50CVX104
- Item # 2065CVX104
What's in the box:
Kicker 50CVX104 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" Round dual 4-ohm voice coil woofer
- Information sheet (inclues QR code for manual)
- Template on the box lid
More details on the Kicker 50CVX104

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 2, 8 | |
Cone Material | Polypropylene | |
Surround Material | Santoprene Rubber | |
Basket Material | Aluminum | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
85.7 dB at 1 watt | |
Frequency Response | 24 - 500 Hz | |
Max RMS Power Handling | 600 | |
Peak Power Handling (Watts) | 1200 | |
Top Mount Depth (inches) | 5 15/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 9 1/4 | |
Frame Width | 10.675 | |
Frame Length | 10.675 | |
Vas (liters) | 15.8949 | |
Fs (Hz) | 43.85 | |
Qts | 0.4805 | |
Xmax (millimeters) | 16.25 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 0.8 | |
Maximum Sealed Box Volume (cubic feet) | 1.25 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 1.25 | |
Maximum Ported Box Volume (cubic feet) | 1.78 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features

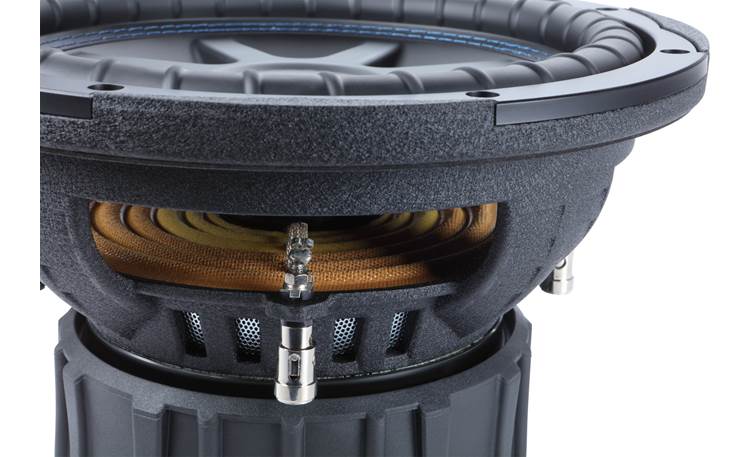

Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.
Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.
Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).
- Minimum Volume: 0.8 ft³
- Maximum Volume: 1.25 ft³
Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.
- Minimum Volume: 1.25 ft³ with a 2" x 10.5" x 20" slot port
- Maximum Volume: 1.75 ft³ with a 2.5" x 10.5" x 20" slot port
The Kicker 50CVX104 replaces these items:
- injection-molded polypropylene cone with Santoprene rubber surround
- power handling: 600 watts RMS (1200 watts peak)
- top-mount depth: 5-15/16"
