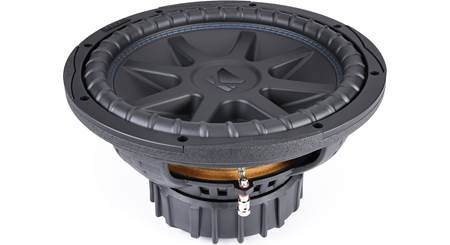

About the Kicker 50CVX122

Product highlights:
- 12" subwoofer with dual 2-ohm voice coils
- injection-molded polypropylene cone
- ribbed Santoprene rubber surround
- cast-aluminum basket
- power handling: 750 watts RMS (375 watts per coil)
- peak power handling: 1500 watts
- frequency response: 20-500 Hz
- sensitivity: 87.1 dB
- top-mount depth: 6.65"
- cutout diameter: 10.966
- sealed box volume: 1.0 - 2.0 cu. ft.
- ported box volume: 1.75 - 2.25 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 50CVX122
- Item # 2065CVX122
What's in the box:
Kicker 50CVX122 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 12" Dual 2-ohm voice coil woofer
- Information sheet (inclues QR code for manual)
- Template on the box lid
More details on the Kicker 50CVX122

Features & specs
Features and Specs | ||
---|---|---|
Size | 12-inch | |
Impedance (Ohms) | 1, 4 | |
Cone Material | Polypropylene | |
Surround Material | Santoprene Rubber | |
Basket Material | Cast Aluminum | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
87.1 dB at 1 watt | |
Frequency Response | 20 - 500 Hz | |
Max RMS Power Handling | 750 | |
Peak Power Handling (Watts) | 1500 | |
Top Mount Depth (inches) | 6 11/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 11 | |
Frame Width | 12.54 | |
Frame Length | 12.54 | |
Vas (liters) | 38.9551 | |
Fs (Hz) | 32.2 | |
Qts | 0.391 | |
Xmax (millimeters) | 19.25 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 1 | |
Maximum Sealed Box Volume (cubic feet) | 2 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 1.75 | |
Maximum Ported Box Volume (cubic feet) | 2.25 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.
Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.
Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).
- Minimum Volume: 1.0 ft³
- Maximum Volume: 2.0 ft³
Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.
- Minimum Volume: 1.75 ft³ with a 12½" x 2½" x 20" slot port
- Maximum Volume: 2.75 ft³ with a 12½" x 3" x 20½" slot port
The Kicker 50CVX122 replaces these items:
- injection-molded polypropylene cone with Santoprene rubber surround
- power handling: 750 watts RMS (1500 watts peak)
- top-mount depth: 6-11/16"
