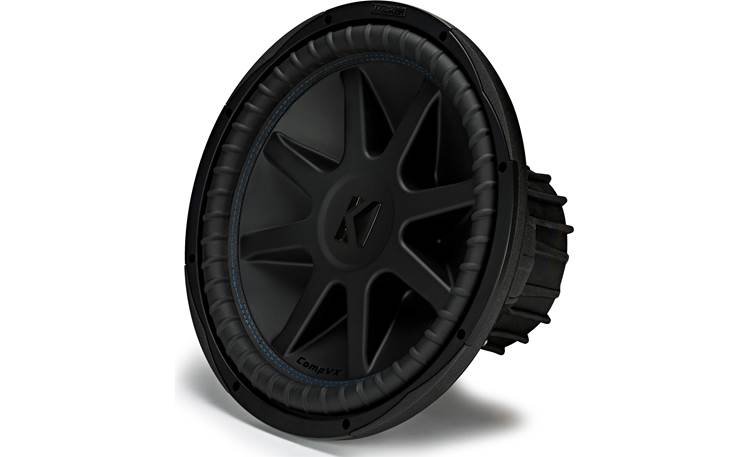

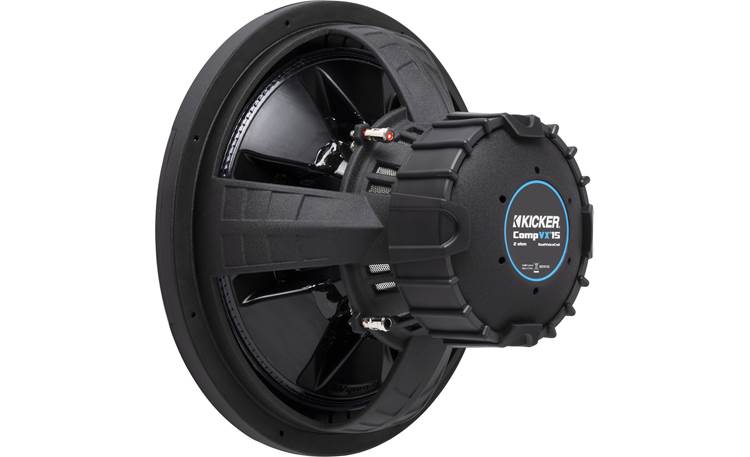

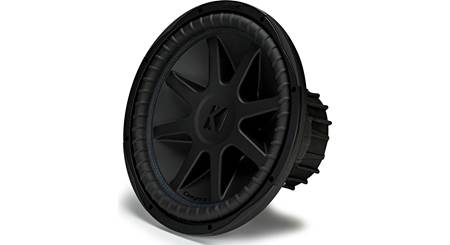

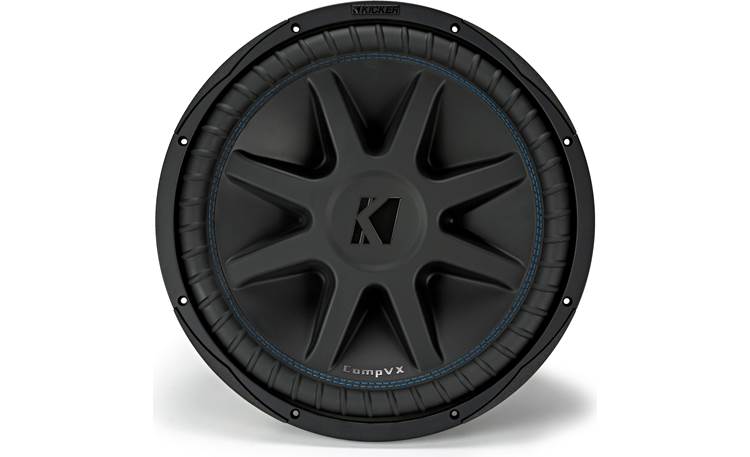

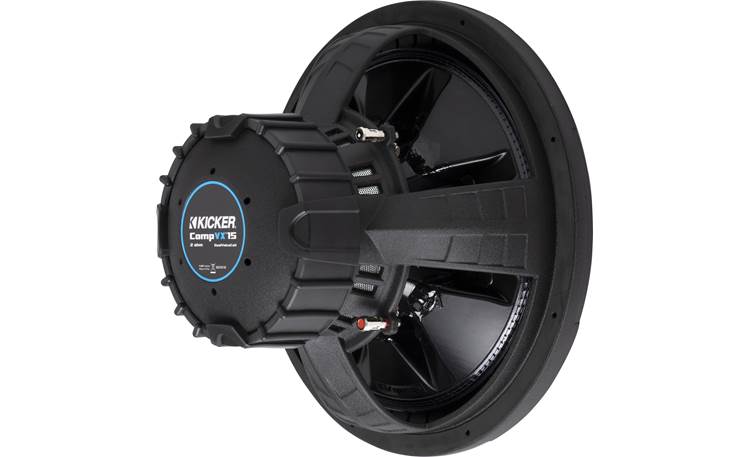

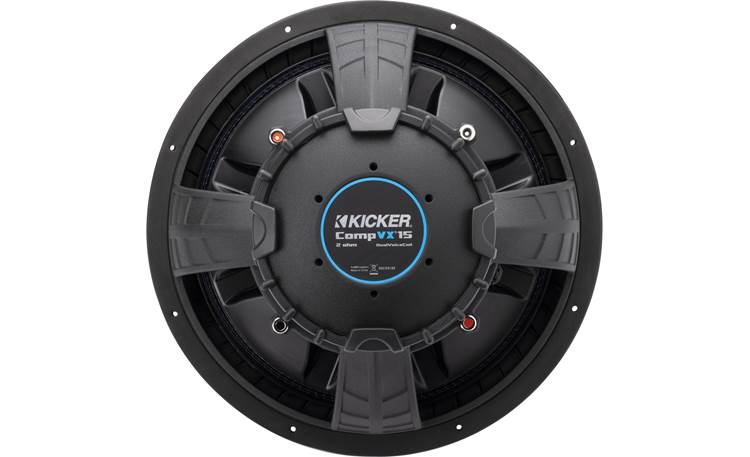

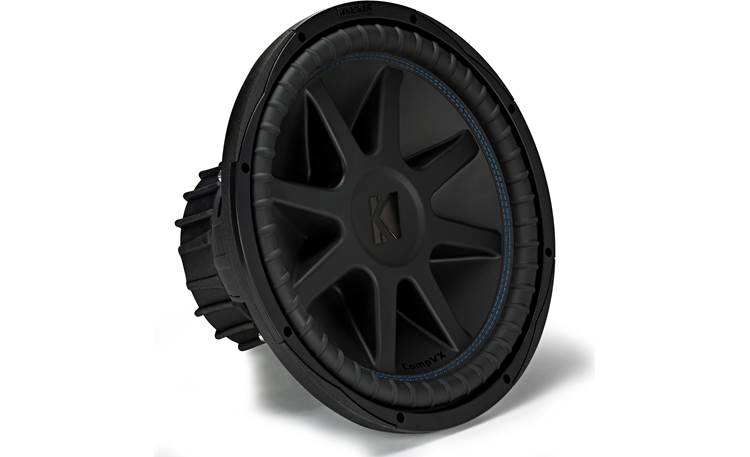

About the Kicker 50CVX152

Product highlights:
- 15" subwoofer with dual 2-ohm voice coils
- injection-molded polypropylene cone
- ribbed Santoprene rubber surround
- cast-aluminum basket
- power handling: 1000 watts RMS (500 watts per coil)
- peak power handling: 2000 watts
- frequency response: 18-500 Hz
- sensitivity: 91.6 dB
- top-mount depth: 8.5"
- cutout diameter: 13.8125"
- sealed box volume: 1.8 - 3.0 cu. ft.
- ported box volume: 3.0 - 5.0 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 50CVX152
- Item # 2065CVX152
What's in the box:
Kicker 50CVX152 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 15" Dual 2-ohm voice coil woofer
- Information sheet (inclues QR code for manual)
- Template on the box lid
More details on the Kicker 50CVX152

Features & specs
Features and Specs | ||
---|---|---|
Size | 15-inch | |
Impedance (Ohms) | 1, 4 | |
Cone Material | Polypropylene | |
Surround Material | Santoprene Rubber | |
Basket Material | Cast Aluminum | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | Yes | |
Sensitivity |
91.6 dB at 1 watt | |
Frequency Response | 18 - 500 Hz | |
Max RMS Power Handling | 1000 | |
Peak Power Handling (Watts) | 2000 | |
Top Mount Depth (inches) | 8 1/2 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 13 13/16 | |
Frame Width | 15.4375 | |
Frame Length | 15.4375 | |
Vas (liters) | 156.71 | |
Fs (Hz) | 23.7 | |
Qts | 0.216 | |
Xmax (millimeters) | 19 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 1.8 | |
Maximum Sealed Box Volume (cubic feet) | 3 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 3 | |
Maximum Ported Box Volume (cubic feet) | 5 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Cooling: Kicker engineers developed a Forced Air Cooling system, using the motor structure to pull air across the voice coils, helping the sub run up to 20% cooler than the previous model.
Dual Voice Coils: For increased system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.
Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 20 and 30 Hz).
- Minimum Volume: 1.8 ft³
- Maximum Volume: 3.0 ft³
Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.
- Minimum Volume: 3.0 ft³ with a 15½" x 2¾" x 25¾" slot port
- Maximum Volume: 5.0 ft³ with a 15½" x 3" x 22" slot port
The Kicker 50CVX152 replaces these items:
- injection-molded polypropylene cone with ribbed Santoprene rubber surround
- power handling: 1000 watts RMS (2000 watts peak)
- top-mount depth: 8-1/2"
