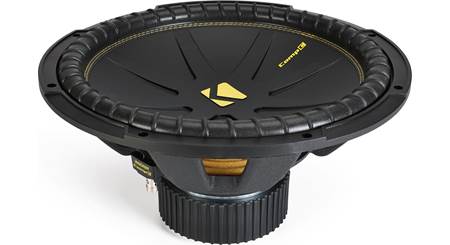

About the Kicker 43C154

Product highlights:
- 4-ohm 15" subwoofer
- injection-molded polypropylene cone
- ribbed foam surround
- power handling: 120-250 watts RMS
- peak power handling: 500 watts
- frequency response: 25-500 Hz
- sensitivity: 90.3 dB
- top-mount depth: 7-7/16"
- sealed box volume: 2.25 - 5.0 cu. ft.
- ported box volume: 3.0 - 4.0 cu. ft.
- grille not included
- warranty: 1 year
- MFR # 43C154
- Item # 206C154
What's in the box:
- One 4-ohm 15" subwoofer
- Rubber magnet boot (installed)
- Owner's Manual
- 2 Kicker decals
- Template on box lid
More details on the Kicker 43C154

Features & specs
Features and Specs | ||
---|---|---|
Size | 15-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Polypropylene | |
Surround Material | Foam | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
90.3 dB at 1 watt | |
Frequency Response | 25 - 500 Hz | |
Max RMS Power Handling | 250 | |
Peak Power Handling (Watts) | 500 | |
Top Mount Depth (inches) | 7 3/8 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 13 3/4 | |
Frame Width | 15.453 | |
Frame Length | 15.453 | |
Vas (liters) | 226.14 | |
Fs (Hz) | 23 | |
Qts | 0.404 | |
Xmax (millimeters) | 13.5 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 2.25 | |
Maximum Sealed Box Volume (cubic feet) | 5 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 3 | |
Maximum Ported Box Volume (cubic feet) | 4 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Speaker Terminals: The spring-loaded, nickel-plated terminals provide solid connections for speaker wire up to 10-gauge. Single banana plugs and pin connectors will also fit.
Rubber Magnet Boot: A black rubber boot covers the outside edge of the magnet structure to improve the cosmetics of the woofer and protect the magnet during installation.
Sealed Enclosure Applications: Kicker recommends sealed enclosure volumes from 2.25 ft³ to 5 ft³. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Enclosure Applications: Kicker recommends ported enclosure volumes from 3 ft³ to 4 ft³. Slot port dimensions are given in the manual for the minimum enclosure volume (15-1/2" x 2-1/2" x 17") and the maximum enclosure volume (15-1/2" x 3" x 16-1/4"). Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from less power. However, this efficiency comes at the expense of very low frequency output.
The Kicker 43C154 replaces these items:
- injection-molded polypropylene cone with ribbed foam surround
- power range: 50-300 watts RMS
- frequency response: 25-500 Hz
