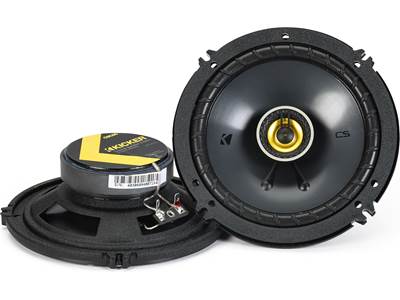

About the Kicker 43DSC6504

Highlights:
- 2-way car speakers (pair)
- 6-1/2" polypropylene woofer with ribbed polyester foam surround
- 1/2" PEI balanced dome tweeter
- power range: handles up to 60 watts RMS (240 watts peak power)
- frequency range: 40-20,000 Hz
- sensitivity: 90 dB
- top-mount depth: 1-13/16"
- impedance: 4 ohms
- grilles included
- warranty: 2 years
- MFR # 43DSC6504
- Item # 206DSC6504
What's in the box:
Kicker 43DSC6504 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Grilles
- Two 11" lengths of speaker wire (tinned wire on one end and female quick slides on the other)
- 4 Red plastic butt connectors
- Eight 1-1/8" Self-tapping screws
- Owner's manual (English/ Spanish/ German/ French)
Featured video:
More details on the Kicker 43DSC6504

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Polyester Foam | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 1/2" Balanced Dome | |
Tweeter Material | PEI | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black plastic, Spoke style | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 40 - 20k Hz | |
Maximum RMS Wattage | 60 | |
Peak Power Handling (Watts) | 240 | |
Top-mount Depth (Inches) | 1 13/16 | |
Bottom-mount Depth (Inches) | 2 3/16 | |
Cutout Diameter or Length (inches) | 4 7/8 | |
Mounting Height (Inches) | 0.419 | |
Frame Width | 6.245 | |
Frame Length | 6.245 |
Product Research
Features
Polypropylene Woofer Cones: The Kicker DS-series speakers feature durable polypropylene woofer cones for their rigidity and light weight. Polypropylene is also resistant to moisture and high temperature extremes found in automotive applications.
Ribbed Polyester Foam Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.
Balanced-Dome Tweeters: The 1/2" PEI (Poly-Ether-Imide, polymer film) balanced-dome tweeters provide a smooth high frequency response with quick, detailed and spatially-correct imaging. A semi-dome tweeter has a dome placed inside a cone; balanced dome tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter.
Mounting: The speaker baskets have multiple mounting holes and are designed to fit standard 3-hole 6-1/2" applications and Ford's 4-hole 6-1/2" applications. They will also fit many 6-3/4" applications, but a speaker baffle should be used to seal the inner ring of screw holes.
The Kicker 43DSC6504 replaces these items:
- 6-1/2" polypropylene woofer with ribbed polyester foam surround
- 1/2" PEI domed tweeter
- power range: 2-60 watts RMS (240 watts peak power)
