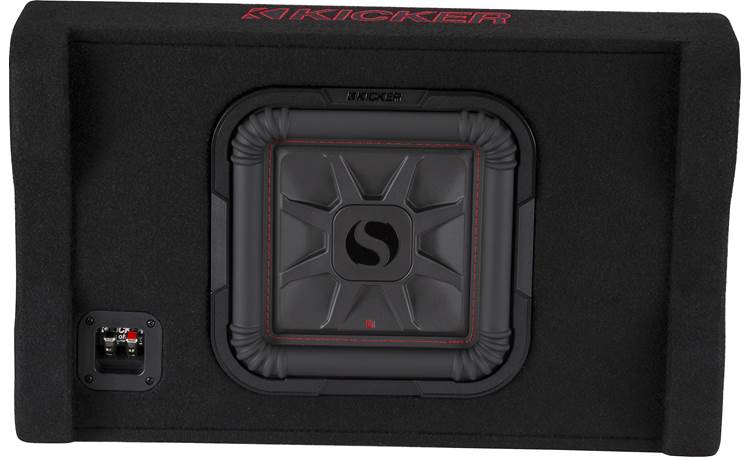

Kicker 49L7TDF102 Sealed downward-firing enclosure with L7T 10" 2-ohm shallow-mount square subwoofer

Item # 206L7TDF10

For over 20 years Kicker's signature Solo-Baric® subwoofers have been renowned for their innovative engineering...

For over 20 years Kicker's signature Solo-Baric® subwoofers have been renowned for their innovative engineering...

5 questions - 5 answers

Item # 206L7TDF10

In stock
$329.99 -$66.03 Instant savings
$263.96

About the Kicker 49L7TDF102

Bob Bihlmayer

Small space, big bass

For over 20 years Kicker's signature Solo-Baric® subwoofers have been renowned for their innovative engineering and big bass impact. Now they've taken this signature sub and paired it with a sealed down-firing enclosure to fit the L7 sound into smaller spaces than ever.

Small space, big bass

For over 20 years Kicker's signature Solo-Baric® subwoofers have been renowned for their innovative engineering and big bass impact. Now they've taken this signature sub and paired it with a sealed down-firing enclosure to fit the L7 sound into smaller spaces than ever.

Move more air

The package features a 10" L7T subwoofer wired for 2-ohm impedance. The sub's square cone gives you up to 20% more surface area than a conventional round sub, moving more air for greater bass response. The injection-molded polypropylene cone and rubber surround handle up to 500 watts RMS output (1000 watts peak).

Tough enclosure

The rugged medium-density fiberboard enclosure is covered in black carpet that looks good and stands up to the car environment. With a height of only 6.125 inches, the 49L7TDF102 tucks neatly under many truck seats. When you're looking for maximum bass from minimum space, this enclosure is ready to kick out the jams.

READ LESS

Product highlights:

  • sealed downward-firing enclosure with one L7T 10" subwoofer
  • 3/4" medium-density fiberboard construction covered with carpet
  • 2-ohm total impedance
  • power handling: 500 watts RMS (1000 watts peak power)
  • sensitivity: 84.1 dB
  • dimensions: 23.5"W x 6.38"H x 14.5"D
  • warranty: 1 year
  • MFR # 49L7TDF102

What's in the box:

  • Down-firing enclosure loaded with one 10" L7T 2-ohm subwoofer
  • 4 Mounting brackets
  • Four 1" screws
  • Eight 3/4" screws
  • Information sheet

Customer reviews for Kicker 49L7TDF102

Loading reviews...

Average review:

5.0 out of 5 stars
12 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Kicker 49L7TDF102

Pat M.

Features & specs

General
Woofer Size (inches) 10
Speakers Per Box 1
Woofer Material Polypropylene
Enclosure Type Sealed
Color Black
Pieces in System 1
Width (inches) 23-1/2
Height (inches) 6-7/16
Depth (inches) 14-1/2
Connector Type Spring posts
Frequency Response 25-100Hz Hz
Power Range (Watts RMS) 500
Maximum Wattage 1000
Sensitivity 84.1 dB
Impedance 2 ohms
Parts Warranty 1 Year
Labor Warranty 1 Year

Product Research

Features

Overview: The Kicker 49L7TDF102 down-firing subwoofer enclosure is loaded with one 10" L7T Solo-Baric subwoofer. The L7T (Thin) subwoofer can provide deep powerful bass in a compact enclosure, while taking up minimal mounting space.

Down-Firing Enclosure: The sealed down-firing enclosure is made of heavy-duty MDF (Medium Density Fiberboard) with extensive internal bracing, providing exceptional acoustic efficiency and deep powerful bass. The enclosure is covered in sleek black carpeting for added protection and a refined look. Its compact, down-firing form allows it to be mounted in cargo areas, or under seats.

Speaker Terminals: A single pair of spring-posts are mounted on the underside of the enclosure in a recessed terminal cup, accepting pin connectors, single banana plugs, or bare wire up to 10 gauge. The subwoofer's dual voice coils are internally wired to present a 2Ω load at the spring posts.

Power: The Kicker 10" L7T subwoofer can handle 250W-500W RMS (1000W peak).

Square Design: By making the Solo-Baric square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the Solo-Baric L7T moves more air, resulting in louder, deeper bass.

Cone Material: The square SoloKon design, with 360-degree back bracing, is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. The cone remains rigid, minimizing cone flex and distortion. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.

Cooling: Kicker's unique Forced Air Cooling provides airflow around the voice coil based on cone motion, drawing cool air in and forcing hot air out. A UniPlate™ solid pole piece and backplate also provide excellent heat dissipation around the voice coil and magnet.

Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is highly tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge, making separation between them virtually impossible, even in the harshest conditions.

Loading accessories...

Customer Q&A

5 questions already asked

Q
Will it fit in a 2017 tundra crewmax?
steve  Jul 29, 2023
1 answer
A
We do not have fit information for this subwoofer going into your truck. We recommend checking your truck using the measurements of this subwoofer/enclosure (23.5"W x 6.38"H x 14.5"D).
zachary  Jul 30, 2023 (Staff)
Q
Will this fit under the seat of a 2013 Silverado Crew Cab?
jose_  Jun 25, 2023
1 answer
A
Unfortunately, we do not have official measurements of the underseat space in your truck. However, we do have measurements for this sub enclosure that you can reference to measure under your truck seat. These measurements are 23.5"W x 6.38"H x 14.5"D.
zachary  Jun 25, 2023 (Staff)
Q
Does this have to be facing down? or can it stand behind the rear seat of my Tundra?
mando  Jun 23, 2023
1 answer
A
Thank you for your question, Mando. This model is recommended to be used as downward firing. I recommend reaching out to an Advisor at 1-800-324-9695 or by online chat so they can discuss other options for your Tundra.
andrea  Jun 23, 2023 (Staff)
Q
Will this fit behind the back seat of a 2019 toyota tacoma double cab?
bryan j.  Feb 15, 2023
1 answer
A
Greetings Bryan, and thank you for your question. our vehicle research team has found that there is no room behind or under the back seat for an aftermarket subwoofer. If you have 3 inches of distance from the floor, to the bottom of the front seat, you can squeeze an under seat powered sub there.
hogan  Feb 15, 2023 (Staff)
Q
Will the factory amp in 2010 f150 king ranch work with this speaker?
bucky  Jan 12, 2023
1 answer
A
This would not be compatible with the factory amplifier. The factory subwoofer has two voicecoils and four wires feeding into it. This subwoofer enclosure only has one set of terminals. It would not be advisable to attempt connecting this subwoofer to those wires in any fashion. If you're going to use this subwoofer in your vehicle, and aftermarket amplifier would be required.
zachary  Jan 12, 2023 (Staff)
