Morel Elate Carbon Pro 53A Elate Carbon Pro Series 5-1/4" 3-way component speaker system

Name: Morel Elate Carbon Pro 53A
Brand: Morel
SKU: 210ECP534
Price: 3199.0 USD
Availability: InStock

Item # 210ECP534

Morel draws on cavity-back technology developed for their flagship Supremo Piccolo tweeter for astounding highs.

Does it Fit your car?

Find what Fits your vehicle

Remove

Checking fit...

Front

1/8

2/8

Only at Crutchfield

3/8

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Morel Elate Carbon Pro 53A Only at Crutchfield

Morel draws on cavity-back technology developed for their flagship Supremo Piccolo tweeter for astounding highs.

Item # 210ECP534

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

Deeply discounted installation gear

$3,199.00

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

Add a special tweeter

Just the style of Morel's iconic Lotus-design speaker grilles takes your breath away, and then there's the sound... The Elate Carbon Pro 53A 3-way component system includes a 5-1/4" woofer, a 3" midrange driver, and the Elate Alto 1.1" tweeter, not included with the "non-Pro" Elate Carbon systems. Both the midrange and the woofer use a carbon-fiber/Rohacell cone that minimizes distortion for the most accurate sound possible. And for the Elate Alto tweeter, Morel draws on cavity-back technology developed for their flagship Supremo Piccolo tweeter for astounding highs.

Elate Carbon tweeter

Morel enhances the performance of the silk dome tweeter with a coating of Acuflex™ compound, which helps damping for a natural sound. By cancelling break-up that can happen at high-frequencies, this special tweeter soars with a frequency response that reaches up to 25,000 Hz. Additionally, Morel allows for a very low crossover point, which means this tweeter can achieve powerfully realistic performance and a highly accurate soundstage with even the most complex music.

Build an active system

Passive crossover systems are not included. Morel designed these Elate Carbon speakers to be neutral, without coloration, so that you can use your active crossover to craft exactly the right sound for you and your vehicle. You'll need an active crossover to use these speakers. If you would like to use passive crossovers with this system, optional Morel MXT380C crossovers are available

Why choose Morel?

It's hard to not feel overwhelmed by your choices when deciding which component system is worthy of your car... and your ears. But if you're looking for the best, Morel's component speakers soar. Every bit of that excellence is due to their passion for sound and their insistence that every hand-made Morel driver be tested to meet their premium standards.

Installation note: You'll need a pair of our universal backstraps to install the tweeters in most factory locations.

Product highlights:

3-way component speaker system
includes two woofers, two midrange drivers, and two tweeters
5-1/4" 3-layer carbon fiber/Rohacell woofer cone with butyl rubber surround
3" 3-layer carbon fiber/Rohacell midrange driver and 1.1" Elate Carbon Alto Acuflex-coated silk dome tweeter
cast aluminum basket
handles up to 160 watts RMS (1000 watts peak power)
frequency response: 40-25,000 Hz
sensitivity: 85 dB at 2.83 V
woofer mounting depth: 2-3/8"
woofer cutout diameter: 4-13/16"
midrange mounting depth: 1-9/16"
midrange cutout diameter: 3-1/4"
grilles included
warranty: 2 years
MFR # 350462-205A
Item # 210ECP534

What's in the box:

Morel Elate Carbon Pro 53A owner's manual

2 MW5 Woofers
2 MM3 Midrange
2 Alto Tweeters (with attached 7" length of speaker wire)
2 Woofer grilles
2 Midrange grilles
2 Midrange grille frames
2 Tweeter grilles (installed)
Eight 1-1/4" Screws
Fourteen 3/4" Screws
18 Speed clips
Grille putty
Eight 0.25" Crimp-on female quick slides
Four 0.110" Crimp-on female quick slides
Installation guide
Warranty card
Genuine product verification instructions

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	5 1/4
Driver Design	3-way
Woofer Design	Cone
Woofer Material	Carbon Fiber Composite
Woofer Surround	Rubber
Midrange Design	Cone
Midrange Material	Carbon Fiber Composite
Tweeter Design	1.1" Dome
Tweeter Material	Silk
Super Tweeter Design	---
Super Tweeter Material	---
Impedance (Ohms)	4
Weather-resistant	No
Grilles Included	Black steel
Parts Warranty	2 Years
Labor Warranty	2 Years
Specifications
Sensitivity (1W at 1 meter)	N/A
Sensitivity at 2.83 volts	85
Frequency Response	40 - 25k Hz
Maximum RMS Wattage	160
Peak Power Handling (Watts)	1000
Top-mount Depth (Inches)	2 7/16
Bottom-mount Depth (Inches)	2 9/16
Cutout Diameter or Length (inches)	4 13/16
Mounting Height (Inches)	0.413
Frame Width	5.21
Frame Length	5.21

Product Research

Features

Woofer Cone: Morel describes the woofer as having a Triple Layer Cone design; two exterior carbon fiber layers sandwiching a layer of Rohacell (a high strength, lightweight foam).

Midrange Size: The midrange drivers are not a standard size, approximately 3" diameter. They can be top or bottom mounted, and have these dimensions:

Top mount depth: 1.523"
Mounting height: 0.255"
Flange height: 0.185"
Bottom mount depth: 1.708"
Tweeter Protrusion: 0.07"
Cutout diameter: 3.254"
Frame diameter: 3.944"

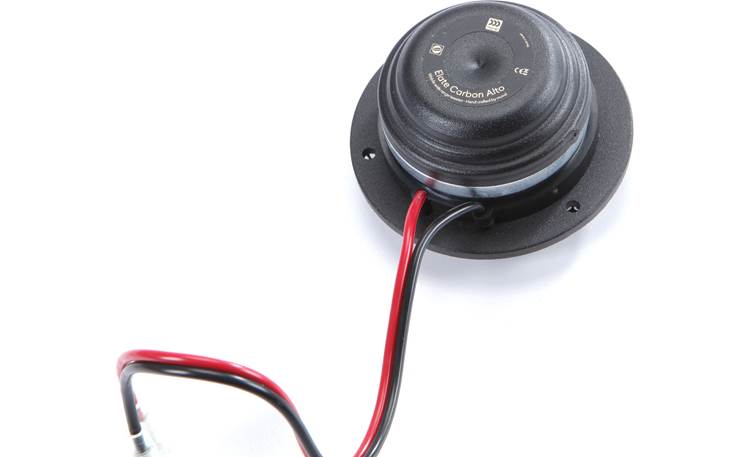

Tweeters: The silk dome tweeters are coated with Acuflex, a damping compound designed to minimize distortion. The tweeter is designed to be flush mounted; it is built on a flush mount frame. The dome is very delicate, so the mesh grille should always be used.

Tweeter Dimensions:

	Flush Mount
Mounting Height	0.465"
Mounting Depth	1.175"
Cutout Diameter	2.095"
Frame Diameter	2.722"

Crossover: No crossovers are included with these speakers; the system is designed to be actively crossed over using a DSP (digital signal processor), an active crossover, or the crossovers in your amplifier. (A crossover of some type MUST be used.) The best crossover settings will vary depending on the driver placement and the vehicle's interior acoustics. Morel's recommendations are listed below. If you prefer a passive crossover, use the optional Morel MXT380C (sold separately).

Recommended Range:

Tweeter High-Pass: 1.8 kHz to 4 kHz crossover point, 12 dB/octave slope
Midrange Low-Pass: 1.8 kHz to 4 kHz crossover point, 12 dB/octave slope (6 dB/octave minimum)
Midrange High-Pass: 300 Hz to 750 Hz crossover point, 12 dB/octave slope
Woofer Low-Pass: 350 Hz to 750 Hz crossover point, 12 dB/octave slope (6 dB/octave minimum)
Woofer High-Pass: 40 Hz to 80 Hz crossover point, 12 dB/octave slope (when used with a subwoofer)

Optimal Settings (typical installation):

Tweeter High-Pass: 3.3 kHz crossover point, 12 dB/octave slope
Midrange Low-Pass: 3.3 kHz crossover point, 12 dB/octave slope
Midrange High-Pass: 450 Hz crossover point, 12 dB/octave slope
Woofer Low-Pass: 450 Hz crossover point, 12 dB/octave slope
Woofer High-Pass: 40 Hz crossover point, 12 dB/octave slope (when used with a subwoofer)

Optional Passive Crossover Specs:

Crossover Points: 450 Hz and 2.7 kHz
Slope: 12 dB/octave
