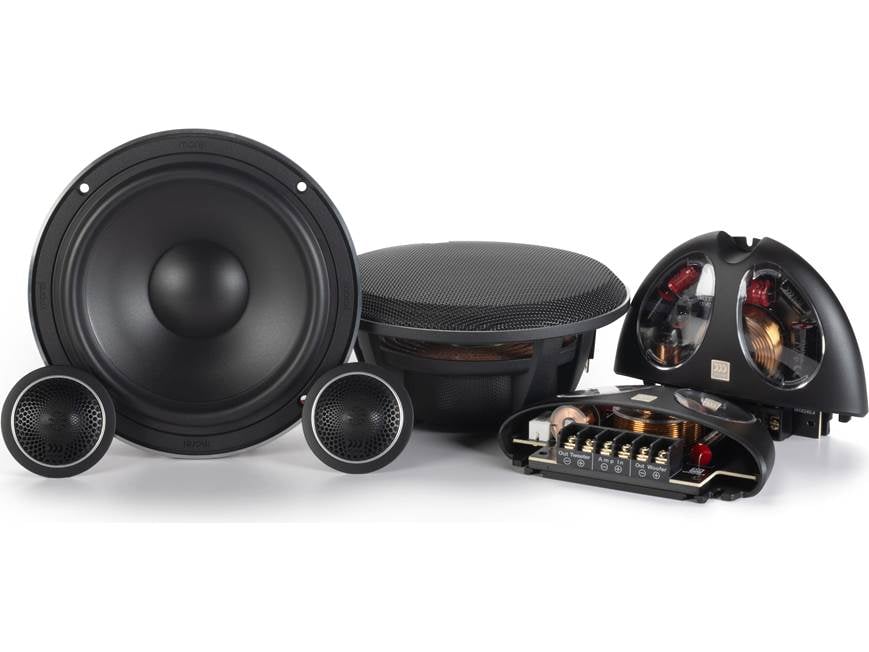

About the Morel Hybrid 62
Product highlights:
- 6-1/2" component speaker system
- includes two tweeters, two woofers, two crossovers
- one-piece Damped Polymer Cone (DPC)
- cast aluminum basket
- Acuflex coated silk dome tweeter
- external crossover with two tweeter level settings
- handles up to 140 watts RMS (600 watts peak power)
- frequency response: 35-25,000 Hz
- sensitivity: 91 dB at 2.83 V
- tweeter mounting depth: 1/2"
- woofer mounting depth: 2-7/16"
- woofer cutout diameter: 5-9/16"
- grilles included
- warranty: 1 year
- MFR # 350396-105
- Item # 210HYB62
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Morel Hybrid 62 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two MW6mkII Woofers
- Two MT300 Tweeters (with attached 7" length of speaker wire)
- 2 MXR240.4 Crossovers
- 2 Woofer grilles (installed)
- 2 Tweeter grilles (installed)
- 2 Flush mount tweeter housings (with tweeters installed)
- 2 Flush mount brackets
- 2 Angled surface mount tweeter housings
- 2 Rubber bases for surface mount housings
- Six 3/4" Screws
- Four 1" Screws
- Eight 1-1/4" Screws
- 8 Speed clips
- Grille putty
- Four 0.25" Crimp-on female quick slides
- Two 0.187" Crimp-on female quick slides
- Two 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Two 0.110" Quick slide insulating covers
- Installation guide
- Warranty card
- Genuine product verification instructions
More details on the Morel Hybrid 62
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Damped Polymer | |
| Woofer Surround | Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | 28mm Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black steel | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | N/A | |
| Sensitivity at 2.83 volts | 91 | |
| Frequency Response | 35 - 25k Hz | |
| Maximum RMS Wattage | 140 | |
| Peak Power Handling (Watts) | 600 | |
| Top-mount Depth (Inches) | 2 7/16 | |
| Bottom-mount Depth (Inches) | 2 11/16 | |
| Cutout Diameter or Length (inches) | 5 1/2 | |
| Mounting Height (Inches) | 0.403 | |
| Frame Width | 6.523 | |
| Frame Length | 6.523 | |
Product Research
Features
Woofer Size Classification Note: Some manufacturers, including Morel, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size woofer as 6¾". Please enter your vehicle information to confirm fit.
Controlled Acoustic Resistance: Car speakers are typically installed in free-air applications, providing minimal acoustic loading. Controlled Acoustic Resistance (C.A.R. Filter) improves the acoustic loading by controlling airflow within the driver, mimicking the effects of an enclosure. This provides greater control over the woofer's cone movement for improved bass dynamics.
Tweeter Mounting Options: The tweeter can be surface or flush mounted using the included adapters. The surface mount housing angles the tweeters at approximately 45°.
Tweeter Dimensions:
| Flush Mount | Angled Surface Mount | |
|---|---|---|
| Mounting Height | 0.315" | 1.31" |
| Mounting Depth | 0.75" | screw depth |
| Cutout Diameter | 1.82" | N/A |
| Frame Diameter | 2.2" | N/A |
| Frame Width | N/A | 2.13" |
| Frame Depth | N/A | 2.69" |
Crossover: The outboard crossovers have screw terminal inputs and outputs (0.315" wide). The crossover point is 2.2 kHz; the low pass slope is 18 dB/octave and the high pass slope is 12 dB/octave. A jumper inside each crossover allows you to adjust the tweeter output level; choose -2 dB, 0 dB, or +2 dB.
Crossover Dimensions:
- Width: 5.55"
- Height: 1.42"
- Depth: 4.19"
The Morel Hybrid 62 replaces these items:
- one-piece Damped Polymer Cone (DPC)
- 1-1/8" Acuflex coated silk dome tweeter
- handles up to 140 watts RMS (600 watts peak power)
