About the Morel Hybrid Integra 52

Product highlights:
- 2-way 5-1/4" speakers (pair)

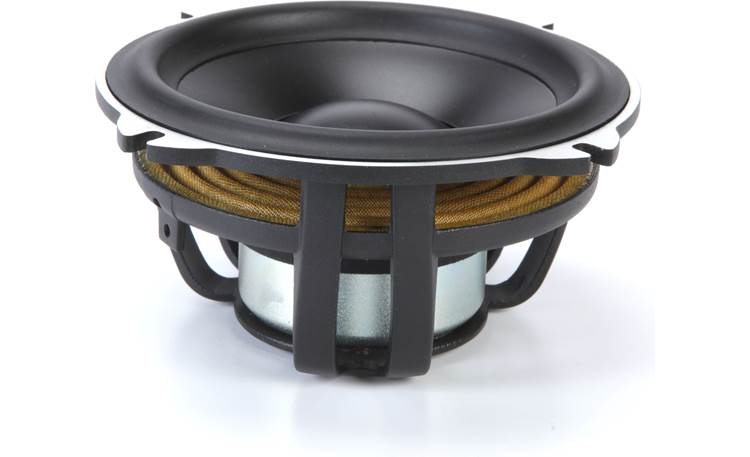

- paper composite woofer cone with butyl rubber surround
- cast aluminum basket
- Acuflex coated soft dome tweeter
- 2-way external crossover with 3 tweeter level settings
- 4-ohm impedance
- handles up to 90 watts RMS (250 watts peak power)
- frequency response: 70-25,000 Hz
- sensitivity: 90 dB at 2.83 V
- mounting depth: 2-7/16"
- grilles included
- warranty: 2 years
- MFR # 350375-225
- Item # 210HYBIN52

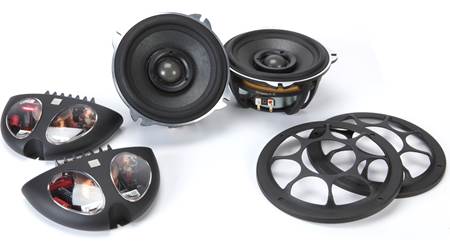

What's in the box:
Morel Hybrid Integra 52 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 MXR250in Crossovers
- 2 Grilles
- Six 3/4" Screws
- Eight 1-1/4" Screws
- 8 Speed clips
- Four 0.25" Crimp-on female quick slides
- Four 0.110" Crimp-on female quick slides
- Installation guide
More details on the Morel Hybrid Integra 52

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Paper Composite | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Silk | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel, Octopus style | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 90 | |
Frequency Response | 70 - 25k Hz | |
Maximum RMS Wattage | 90 | |
Peak Power Handling (Watts) | 250 | |
Top-mount Depth (Inches) | 2 7/16 | |
Bottom-mount Depth (Inches) | 2 9/16 | |
Cutout Diameter or Length (inches) | 4 13/16 | |
Mounting Height (Inches) | 0.345 | |
Frame Width | 5.218 | |
Frame Length | 5.218 |
Product Research
Features
Time Aligned Structure: The recessed tweeter is concentrically aligned with the woofer cone, so sound radiates from the same point for both. This minimizes phase error and allows the sound field to be constant in all directions, improving time alignment.
Crossover: The outboard crossovers have screw terminal inputs and outputs (0.315" wide). The crossover point is 2.2 kHz and the slope is 12 dB/octave. A jumper inside each crossover allows you to adjust the tweeter output level; choose -2 dB, 0 dB, or +2 dB. Because the woofer and tweeter have separate inputs on the speakers, they can be bi-amped using an electronic crossover. (2.5 kHz is the crossover point Morel recommends in this configuration.)
Crossover Dimensions:
- Width: 5.54"
- Height: 1.45"
- Depth: 4.17"
Speaker Terminals: The speaker terminals are male quick slide lugs:
- Woofer:
- Positive: 0.25"
- Negative: 0.25"
- Tweeter:
- Positive: 0.110"
- Negative: 0.110"
The Morel Hybrid Integra 52 replaces these items:
- paper composite woofer cone with butyl rubber surround
- 1-1/8" Acuflex coated silk dome tweeter
- handles up to 90 watts RMS (250 watts peak power)
