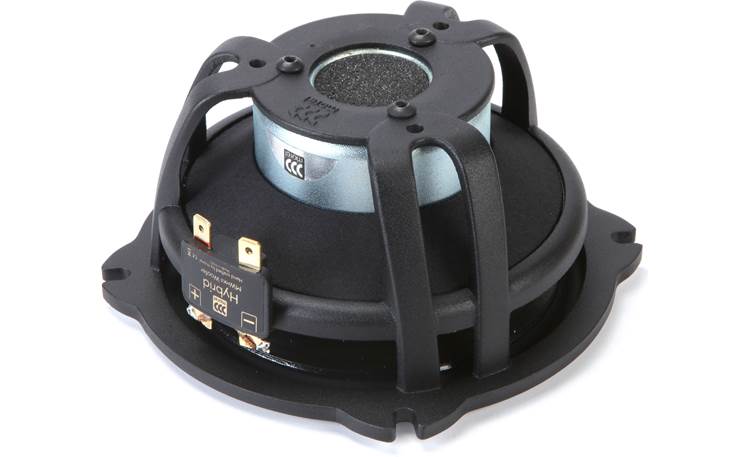

About the Morel Hybrid MW5 MKII

Product highlights:
- 5-1/4" car woofers (pair)
- one-piece damped polymer woofer cone (DPC) with butyl rubber surround
- handles up to 120 watts RMS (500 watts peak power)
- frequency range: 45-3,000 Hz
- sensitivity: 90 dB
- impedance: 4 ohms
- top-mount depth: 2-7/16"
- cutout diameter: 4-13/16"
- warranty: 2 years
- MFR # 321125-425
- Item # 210HYBMW5M
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Morel Hybrid MW5 MKII owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two MW5mkII Woofers
- 2 Grilles
- Eight 1-1/4" Screws
- 8 Speed clips
- Installation guide
More details on the Morel Hybrid MW5 MKII

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Driver Design | 1-way | |
Woofer Design | Cone | |
Woofer Material | Damped Polymer | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel, Octopus style | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 90 | |
Frequency Response | 45 - 3k Hz | |
Maximum RMS Wattage | 120 | |
Peak Power Handling (Watts) | 500 | |
Top-mount Depth (Inches) | 2 7/16 | |
Bottom-mount Depth (Inches) | 2 9/16 | |
Cutout Diameter or Length (inches) | 4 13/16 | |
Mounting Height (Inches) | 0.337 | |
Frame Width | 5.212 | |
Frame Length | 5.212 |
Product Research
Features
Controlled Acoustic Resistance: Car speakers are typically installed in free-air applications, providing minimal acoustic loading. Controlled Acoustic Resistance (C.A.R. Filter) improves the acoustic loading by controlling airflow within the driver, mimicking the effects of an enclosure. This provides greater control over the woofer's cone movement for improved bass dynamics.
Crossover: These drivers do not include a crossover, so you'll need to add one to the system if it's not built into your amplifier.
The Morel Hybrid MW5 MKII replaces these items:
- one-piece damped polymer woofer cone (DPC) with butyl rubber surround
- handles up to 120 watts RMS (500 watts peak power)
- frequency range: 45-3,000 Hz
