About the Morel IR-BMW42

Product highlights:
- component system includes two woofers, two tweeters, and two crossovers
- 4" DPC woofer with rubber surround
- 1" silk dome tweeter
- designed specifically for select BMW models
- works with factory radio, aftermarket receiver, or outboard amp
- handles up to 100 watts RMS power range (300 watts peak)
- frequency response: 50-20,000 Hz
- impedance: 4 ohms
- sensitivity: 92 dB
- grilles not included
- warranty: 1 year
- MFR # 350181-100
- Item # 210IRBMW42
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- 2 IR-42W Woofers

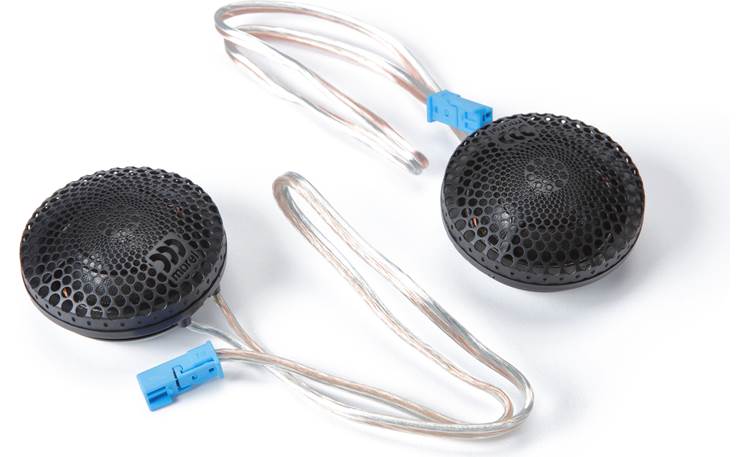

- 2 IR MT 250 Tweeters (12" wire attached/terminated with a BMW plug)

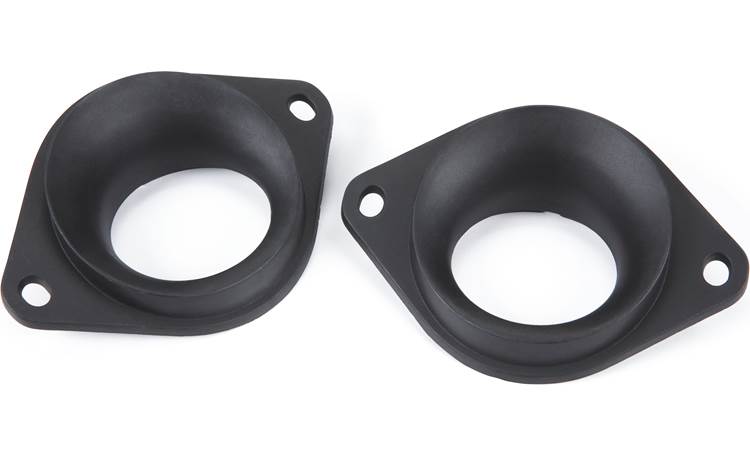

- 2 Type 1 woofer mounting adapters (with woofers installed)
- 2 Type 2 woofer mounting adapters
- 2 Type 3 woofer mounting adapters
- 2 Woofer gaskets
- 2 Tweeter mounting brackets

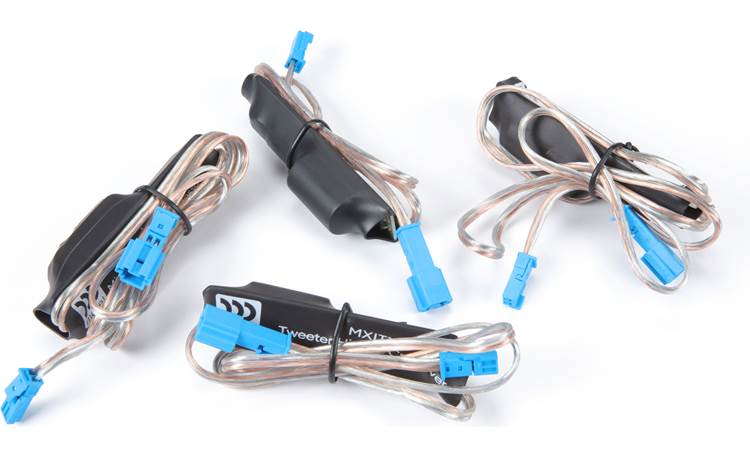

- 2 MXIT1 in-line high pass crossovers
- 2 MXIW1 in-line low pass crossovers

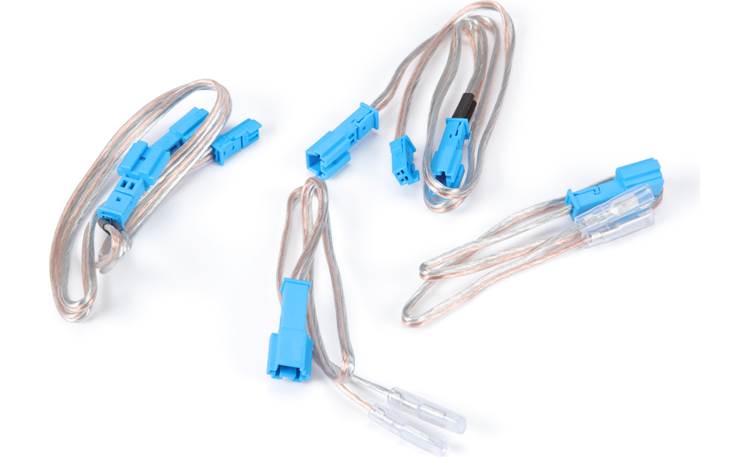

- Two 12" Woofer wires (BMW plug on one end and quick slides on the other)
- Two 12" Wire splitters (BMW plugs on both ends)
- Six 1/2" Screws
- Installation guide
- Warranty card
More details on the Morel IR-BMW42

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Damped Polymer | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Silk | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 92 | |
Frequency Response | 50 - 20k Hz | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 1 | |
Bottom-mount Depth (Inches) | 1 5/8 | |
Cutout Diameter or Length (inches) | 3 1/2 | |
Mounting Height (Inches) | 0.625 | |
Frame Width | 4.654 | |
Frame Length | 4.654 |
Product Research
Features
Mounting: The IR-BMW4-2W is a direct replacement for the factory speakers in select BMW models. Please enter your vehicle information to confirm fit.
Tweeters: The silk dome tweeters are coated with Acuflex, a damping compound designed to minimize distortion.
Wiring: The system includes wire with factory style plugs to connect the woofers and tweeters without any modification.
Crossovers: The high pass and low pass crossovers are in-line on the included wire; both the inputs and outputs have factory style plugs so no modification is necessary. Both crossovers are 12 dB/octave at 2.7 kHz.
