Morel Maximo 6 MK II Maximo Series 6-1/2" component speaker system

Item # 210MAXIM6X

These Morel speakers work effectively with either radio or amplifier power.

Find what Fits your vehicle

Remove

Checking fit...

These Morel speakers work effectively with either radio or amplifier power.

Item # 210MAXIM6X

Ships free

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
Temporarily out of stock
Ship date unknown

Deeply discounted installation gear

$169.00

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Morel Maximo 6 MK II

Dave Delamere

Product highlights:

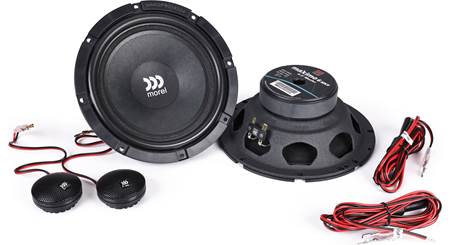

  • 6-1/2" component speaker system
  • treated paper composite woofer cone with butyl rubber surround
  • steel woofer basket
  • 1" soft dome textile tweeter
  • inline crossovers for tweeters (4000 Hz)
  • handles up to 90 watts RMS (180 watts peak power)
  • frequency response: 60-22,000 Hz
  • sensitivity: 92 dB at 2.83 V
  • woofer top mounting depth: 2.301"
  • flush- and angled surface-mount tweeter solutions included
  • mesh tweeter grilles included
  • warranty: 1 year
  • MFR # 350166-200
  • Item # 210MAXIM6X

What's in the box:

Morel Maximo 6 MK II owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • Two Woofers
  • Two Tweeters (with attached 9" length of speaker wire)
  • Two in-line tweeter crossovers (76" wire)
  • 2 Mesh tweeter grilles (installed)
  • 2 Flush mount tweeter housings
  • 2 Flush mount brackets
  • 2 Angled surface mount tweeter housings
  • Twelve 1" Screws
  • 8 Speed clips
  • Two 0.187" Crimp-on female quick slides
  • Two 0.110" Crimp-on female quick slides
  • Two 0.187" Quick slide insulating covers
  • Two 0.110" Quick slide insulating covers
  • Installation guide
  • Morel window sticker

More details on the Morel Maximo 6 MK II

Pat M.

Features & specs

General
Speaker Size 6 1/2
Driver Design 2-way
Woofer Design Cone
Woofer Material Treated Paper
Woofer Surround Rubber
Midrange Design ---
Midrange Material ---
Tweeter Design 25mm Dome
Tweeter Material Textile
Super Tweeter Design ---
Super Tweeter Material ---
Impedance (Ohms) 4
Weather-resistant No
Grilles Included No
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) N/A
Sensitivity at 2.83 volts 92
Frequency Response 60 - 22k Hz
Maximum RMS Wattage 90
Peak Power Handling (Watts) 180
Top-mount Depth (Inches) 2 5/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 5/8
Mounting Height (Inches) 0.275
Frame Width 6.53
Frame Length 6.53
The Morel Maximo 6 MK II replaces these items:

Product Research

Features

Woofer Size Classification Note: Some manufacturers, including Morel, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size woofer as a 6¾". Please enter your vehicle information to confirm fit.

Tweeter Mounting Options: The tweeter can be surface or flush mounted using the included adapters. The surface mount housing tilts the tweeters at approximately 25°.

Tweeter Dimensions:

  Frame Diameter Cutout Diameter Mounting Height Mounting Depth
Flush Mount 2.215" 1.94" 0.423" 0.875"
Surface Mount 1.92" Screw Holes Only 1.325" (Screw Depth)

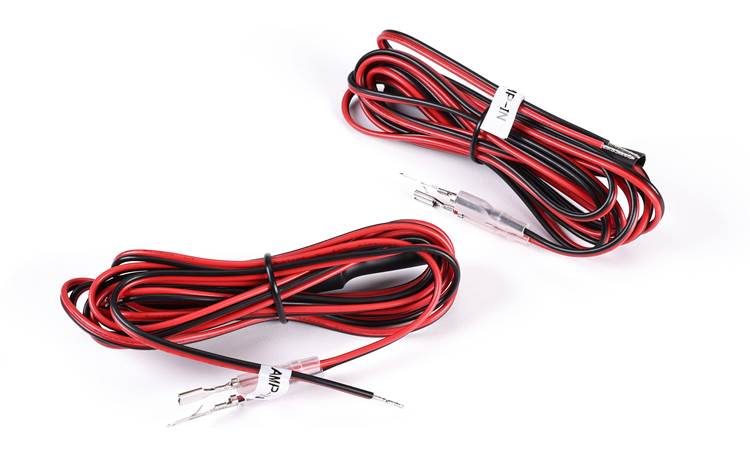

Tweeter Crossovers: The tweeter crossovers are wired in-line with the included 76" speaker wires. The crossovers are 1st order (6 dB/octave slope) and the crossover point is 4 kHz. The output end of the crossover wire is terminated with quick slides that plug into the terminals on the wire attached to each tweeter, and the input end is tinned bare wire. The crossovers measure approximately ½" in diameter and 1⅜" long. The woofers are unfiltered, using their engineered roll-off characteristics to blend with the tweeters.

The Morel Maximo 6 MK II replaces these items:


Adding...
Morel Maximo 6

Morel Maximo 6

Maximo Series 6-1/2" component speaker system
  • treated paper composite woofer cone with butyl rubber surround
  • 1" soft dome textile tweeter
  • handles up to 90 watts RMS (180 watts peak power)

Loading accessories...

Customer Q&A

1 question already asked

Q
would i use a 3ohm amp or 4 ohm amp?
caiden  Dec 26, 2024
1 answer
A
You would use a standard 4-ohm amp as the impedance on these Morels are 4-ohm as well.
red  Dec 26, 2024 (Staff)
