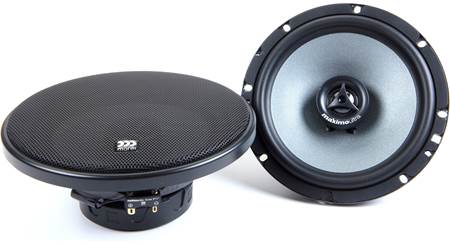

About the Morel Maximo Ultra Coax 602 MKII

Product highlights:
- 2-way 6-1/2" speakers (pair)
- treated paper composite woofer cone with butyl rubber surround
- soft dome textile tweeter
- built-in Morel Crossover Resolution (MXR) crossover
- handles up to 90 watts RMS (160 watts peak power)
- frequency response: 55-20,000 Hz
- sensitivity: 91 dB at 2.83 V
- mounting depth: 2-3/8"
- grilles included
- warranty: 1 year
- MFR # 350146-220
- Item # 210MU602X
What's in the box:
Morel Maximo Ultra Coax 602 MKII owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Grilles
- 2 Grille frames
- Grille putty
- Eight 1" Screws
- 8 Speed clips
- Two 0.187" Crimp-on female quick slides
- Two 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Two 0.110" Quick slide insulating covers
- Installation instructions
- Morel window sticker
Featured video:
More details on the Morel Maximo Ultra Coax 602 MKII

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Treated Paper | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Textile | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black, Steel mesh, Plastic frame | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 91 | |
Frequency Response | 55 - 20k Hz | |
Maximum RMS Wattage | 90 | |
Peak Power Handling (Watts) | 160 | |
Top-mount Depth (Inches) | 2 3/8 | |
Bottom-mount Depth (Inches) | 2 1/2 | |
Cutout Diameter or Length (inches) | 5 11/16 | |
Mounting Height (Inches) | 0.277 | |
Frame Width | 6.488 | |
Frame Length | 6.488 |
Product Research
Note
Size Classification: Some manufacturers, including Morel, call this size speaker a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size as a 6¾". Please enter your vehicle information to confirm fit.

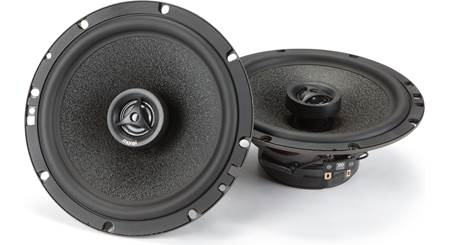

The Morel Maximo Ultra Coax 602 MKII replaces these items:
- treated paper composite woofer cone with butyl rubber surround
- soft dome textile tweeter
- handles up to 80 watts RMS (160 watts peak power)
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
Way better than the factory speakers that came in my 2021 Bronco with the B&O sound system. The B&O sound system doesn't have enough power to fully take advantage of the speakers, but I plan on replacing the factory amp soon.
Mark from SAN ANGELO, TX
