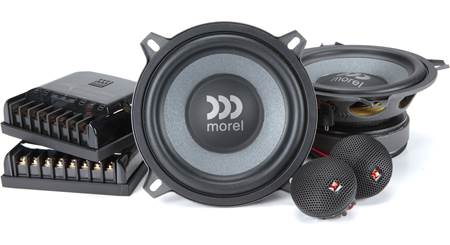

About the Morel Tempo Ultra 502 MKII

Product highlights:
- 5-1/4" component speaker system

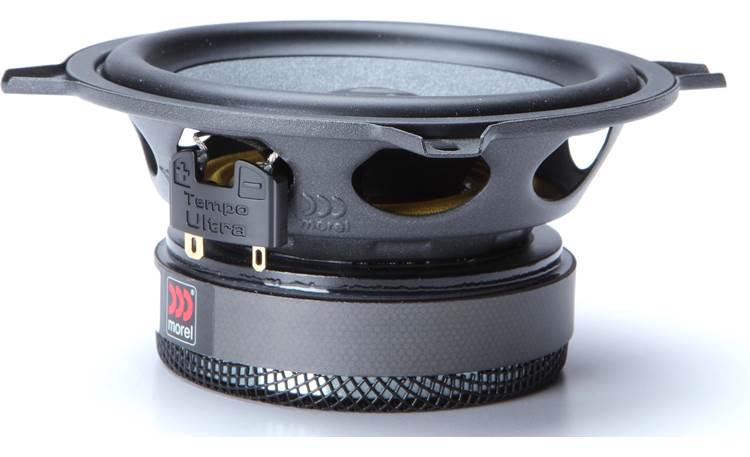

- treated paper composite woofer cone with butyl rubber surround
- 1-1/8" soft dome silk tweeter
- external crossover
- handles up to 110 watts RMS (250 watts peak power)
- frequency response: 65-22,000 Hz
- sensitivity: 89 dB at 2.83 V
- woofer mounting depth: 2-3/8"
- tweeter mounting solutions included
- grilles not included
- warranty: 1 year
- MFR # 350175-200
- Item # 210TU5022
What's in the box:
Morel Tempo Ultra 502 MKII owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two Woofers
- Two Tweeters (with attached 7" length of speaker wire)
- 2 Crossovers
- 2 Mesh tweeter grilles (installed)
- 2 Oval flush mount tweeter housings (with tweeters installed)
- 2 Round flush mount tweeter housings
- 2 Flush mount brackets
- 2 Large angled surface mount tweeter housings
- 2 Small angled surface mount tweeter housings
- Twelve 1" Screws
- 8 Speed clips
- Two 0.187" Crimp-on female quick slides
- Two 0.110" Crimp-on female quick slides
- Two 0.187" Quick slide insulating covers
- Two 0.110" Quick slide insulating covers
- Installation guide
- Morel window sticker
Featured video:
More details on the Morel Tempo Ultra 502 MKII

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Treated Paper | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Silk | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 89 | |
Frequency Response | 65 - 22k Hz | |
Maximum RMS Wattage | 110 | |
Peak Power Handling (Watts) | 250 | |
Top-mount Depth (Inches) | 2 3/8 | |
Bottom-mount Depth (Inches) | 2 1/2 | |
Cutout Diameter or Length (inches) | 4 7/16 | |
Mounting Height (Inches) | 0.272 | |
Frame Width | 5.075 | |
Frame Length | 5.075 |
Product Research
Features
Tweeter Mounting Options: The tweeter can be surface or flush mounted using the included adapters. The large surface mount housing also uses the oval flush mount housing and angles the tweeters at approximately 45°. The small surface mounting housing angles the tweeters at approximately 20°.
Tweeter Dimensions:
Round Flush Mount | Oval Flush Mount | Large Surface Mount | Small Surface Mount | |
---|---|---|---|---|
Mounting Height | 0.5" | 0.5" | 1.95" | 1.41" |
Mounting Depth | 0.9" | 0.9" | screw depth | screw depth |
Cutout Diameter | 1.94" | 1.94" | N/A | N/A |
Frame Width | 2.46" | 2.20" | 2.34" | 1.92" |
Frame Depth | 2.46" | 2.70" | 2.625" | 1.95" |
Crossover: The outboard crossovers have screw terminal inputs and outputs (0.3" wide). The slope is 6 dB/octave and the tweeter output level can set to -2 dB, 0 dB, or +2 dB.
Crossover Dimensions:
- Width: 3⅞"
- Height: 1¼"
- Depth: 3¼"
The Morel Tempo Ultra 502 MKII replaces these items:
- treated paper composite woofer cone with butyl rubber surround
- soft dome silk tweeter
- handles up to 100 watts RMS (250 watts peak power)
