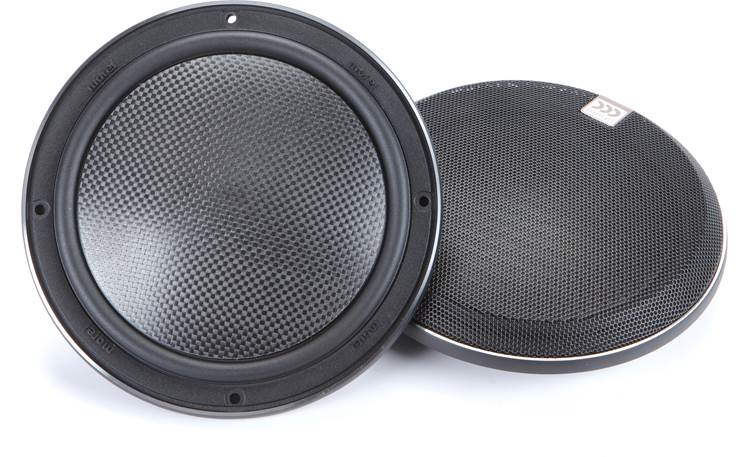

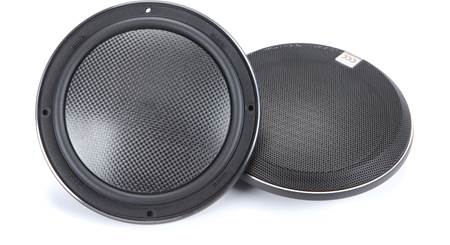

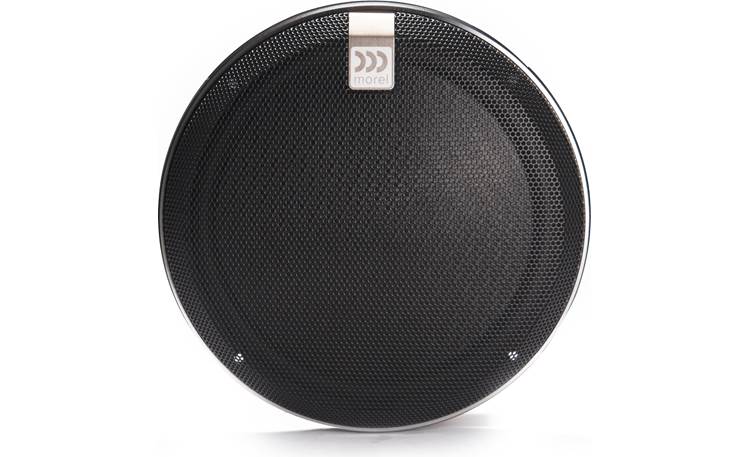

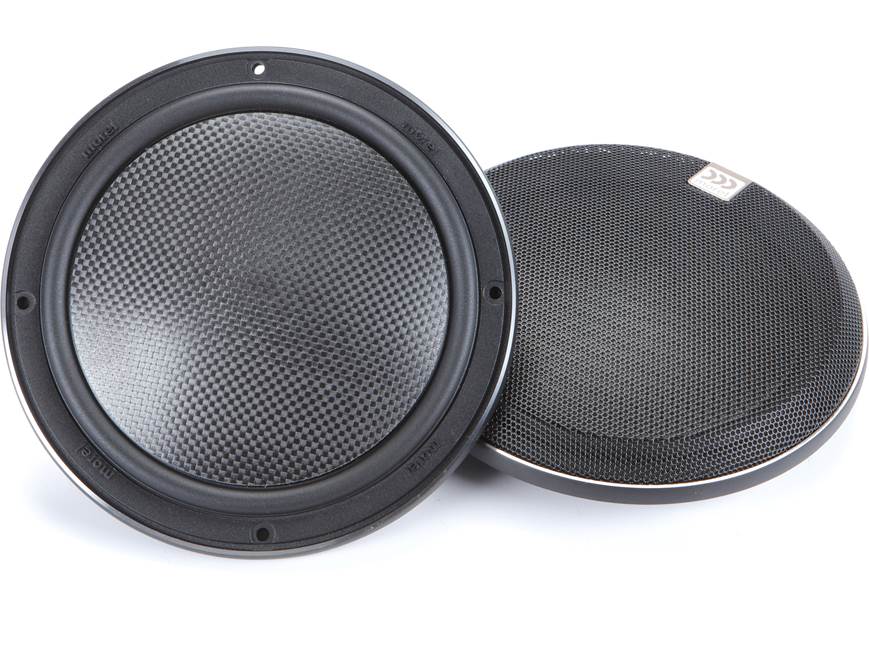

About the Morel Virtus Nano Carbon MW6

Product highlights:
- 6-1/2" woofers (pair)
- sandwiched carbon fiber convex woofer cone with butyl rubber surround
- handles up to 100 watts RMS (300 watts peak power)
- frequency range: 50-5,500 Hz
- sensitivity: 88 dB
- impedance: 4 ohms
- top-mount depth: 11/16"
- cutout diameter: 5-3/8"
- warranty: 2 years
- MFR # 321116-225
- Item # 210VNCMW6
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Morel Virtus Nano Carbon MW6 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two Nano MW6 Woofers
- 2 Grilles (installed)
- Eight 1-1/4" Screws
- 8 Speed clips
- Four 0.25" Crimp-on female quick slides
- Grille putty
- Installation guide
- Warranty card
- Genuine product verification instructions
Featured video:
More details on the Morel Virtus Nano Carbon MW6

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 1-way | |
Woofer Design | Dome | |
Woofer Material | Carbon/Foam Core | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | N/A | |
Sensitivity at 2.83 volts | 88 | |
Frequency Response | 50 - 5.5k Hz | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 0 11/16 | |
Bottom-mount Depth (Inches) | 0 15/16 | |
Cutout Diameter or Length (inches) | 5 3/8 | |
Mounting Height (Inches) | 0.7 | |
Frame Width | 6.609 | |
Frame Length | 6.609 |
Product Research
Features
Size Classification: Some manufacturers, including Morel, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size woofer as a 6¾". Please enter your vehicle information to confirm fit.
Dome: Morel describes the woofer as a Grand Dome, having a Triple Layer design; two exterior carbon fiber layers sandwiching a layer of Rohacell (a high strength, lightweight foam).
Controlled Acoustic Resistance: Car speakers are typically installed in free-air applications, providing minimal acoustic loading. Controlled Acoustic Resistance (C.A.R. Filter) improves the acoustic loading by controlling airflow within the driver, mimicking the effects of an enclosure. This provides greater control over the cone movement for improved bass dynamics.
Crossover: These drivers do not include a crossover, so you'll need to add one to the system if it's not built into your amplifier.
