Brandmotion AHDS-7810v2 7" HD monitor and wireless camera

Name: Brandmotion AHDS-7810v2
Brand: Brandmotion
SKU: 2127810V2
Price: 526.2 USD
Availability: InStock
Rating: 4.0 (6 reviews)

Item # 2127810V2

This camera and monitor combo is perfect for RVs or commercial trucks.

Front

1/12

What's in the box

2/12

Only at Crutchfield

3/12

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Brandmotion AHDS-7810v2 What's in the box

Brandmotion AHDS-7810v2 Only at Crutchfield

This camera and monitor combo is perfect for RVs or commercial trucks.

Item # 2127810V2

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$526.20

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

Get your wireless video system started

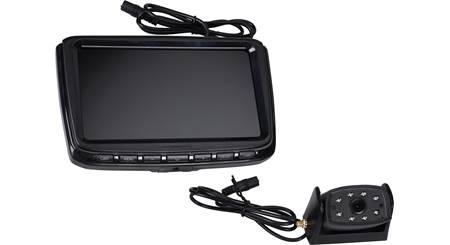

Ideal for large vehicles like RVs and commercial trucks, Brandmotion's AHDS-7810v2 wireless video system includes a 7" universal HD monitor to mount on your dash and one weather-proof, universal wireless camera which provides an HD-quality 120° view. Use the included cam as a rear-view camera or make it part of a larger wireless video system. The included monitor allows you to incorporate a total up to four optional, wireless Brandmotion cams.

DVR capability

With video storage up to 128 GB, the Brandmotion monitor automatically records and saves any video captured by a connected camera. That's handy on the road and when you're parked.

Important Note: The camera in this package is only compatible with the included monitor. It will not work with car stereo receivers or other monitors.

Product highlights:

wireless camera system with 7" HD monitor

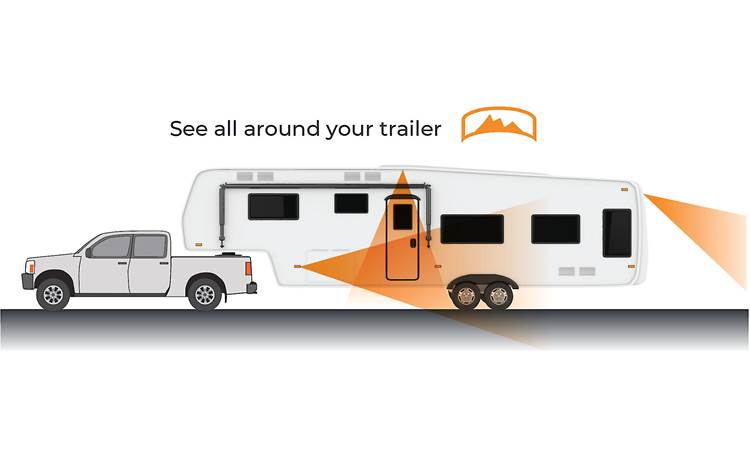

incorporate up to 4 wireless cameras
wireless connection up to 80'
DVR capability up to 128 GB storage
Monitor:
- HD 7" display
- resolution up to 1080p with auto adjustment
- removable sunshade
- universal suction cup mount and 12-volt power plug
Camera:
- universal fit with adjustable, rugged mount
- resolution up to 1080p

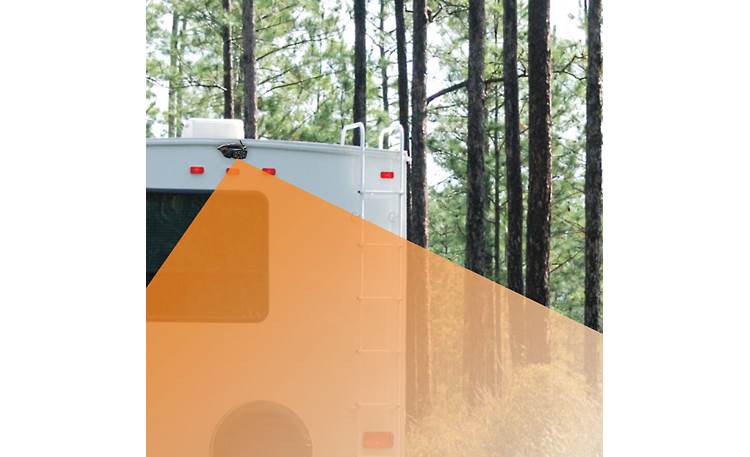

- 120° wide angle
- IP68 dust and water resistant rating
warranty: 3 years
MFR # AHDS-7810V2
Item # 2127810V2

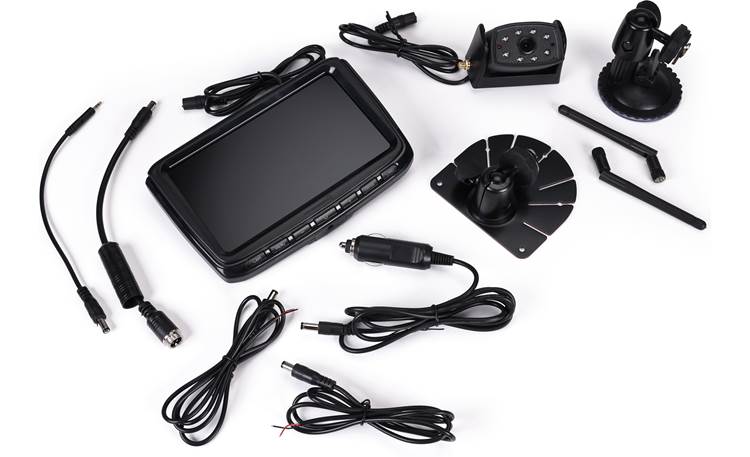

What's in the box:

Brandmotion AHDS-7810v2 owner's manual

Rear-view IR camera (attached tilt bracket and 34" DC power input cable)
7" Wireless color TFT LCD monitor (attached 34" DC power input cable)
2 Optional camera mounting brackets

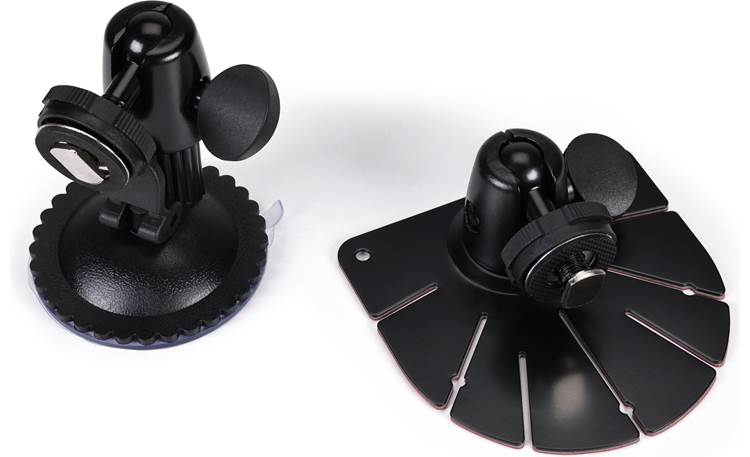

Monitor mount with suction cup
Monitor mount with adhesive base

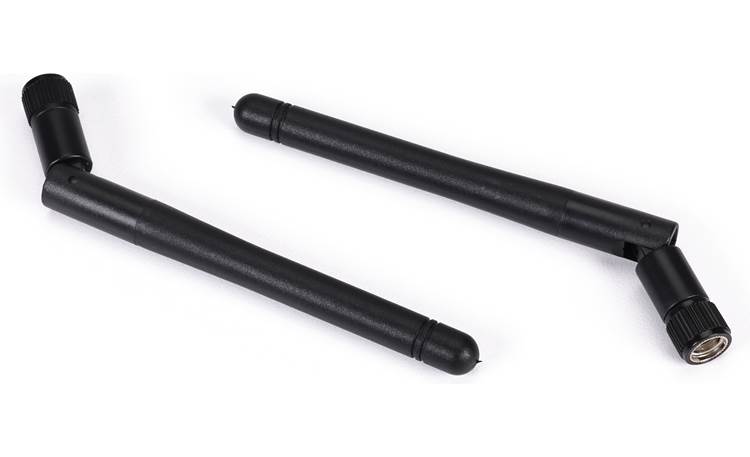

Two 3.5" antennas

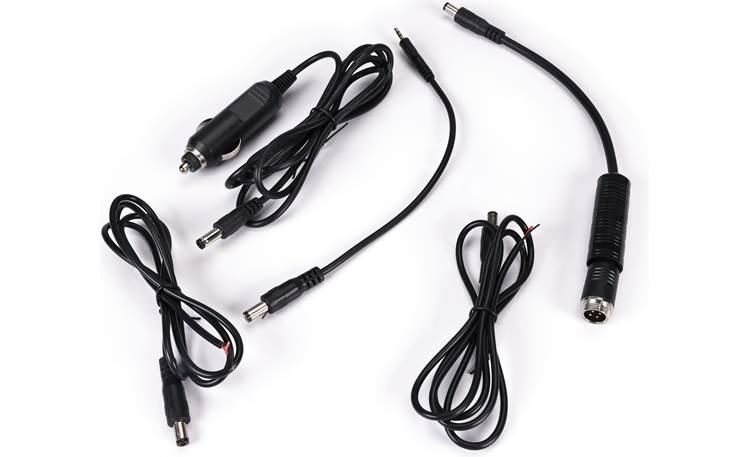

Lighter adapter with attached 57" DC cable
Two DC barrel plugs with attached 3' bare-ended wires
7" DC to 3.5mm cable (male DC plug on one end / male 3.5mm TRS on other end)
7" 4-Pin to DC barrel plug adapter
Four 5/8" screws
Four 1/4" screws
User Manual
QR Code for downloading installation manual

Researched by Crutchfield's Russ B.

Features & specs

Features and Specs
Camera Type	Rear
Resolution	1936x1096
Parking Guidelines	No
Lux Rating	0.2
Selectable Views	Optional
Reversed Image	Normal
Horizontal Viewing Angle	110 degrees
Vertical Viewing Angle	80 degrees
Wireless	Yes
Plug type	N/A

Product Research

Features

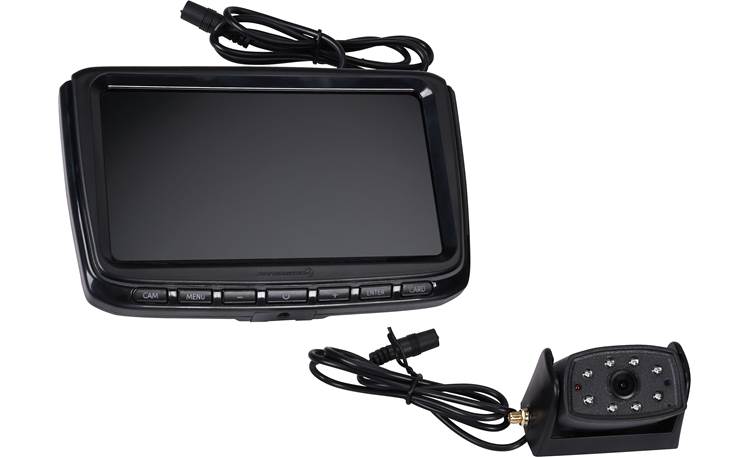

Overview: The Brandmotion AHDS-7810v2 Wireless Observation Camera System offers invaluable assistance for backing up campers and long trailers. The wireless camera system includes a rear-mounted IR camera, mounting hardware, a 7" color TFT LCD monitor, and monitor mounting hardware.

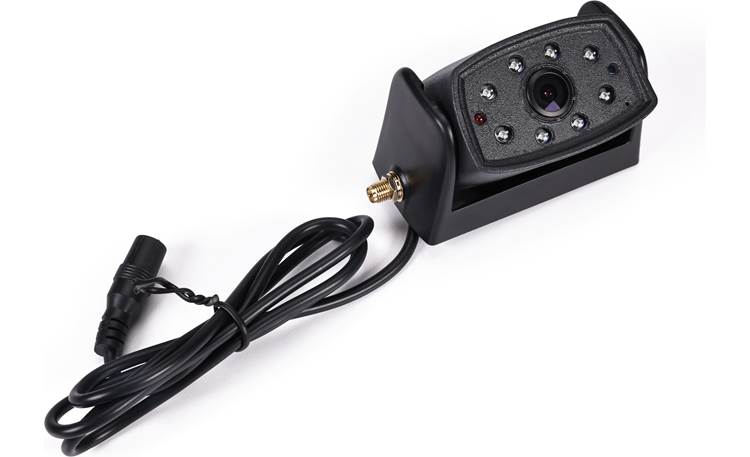

Wireless Camera: The AHDS-7810v2 kit includes a heavy-duty camera equipped with infrared technology. The camera is housed in a durable, waterproof and shock-resistant aluminum alloy shell that includes a built-in tiltable bracket. The camera carries an IP68 weather-proof rating. During daytime operation, the cameras display a crystal clear color image, and in low-light conditions, will automatically activate the built-in IR LEDs for a black and white image. The camera offers a wide 110°(h) x 80°(v) field of view, and can be swiveled up and down with approximately 50° of travel.

Note: Installation of the AHDS-7810v2 camera requires drilling into the outer body of the vehicle or trailer.

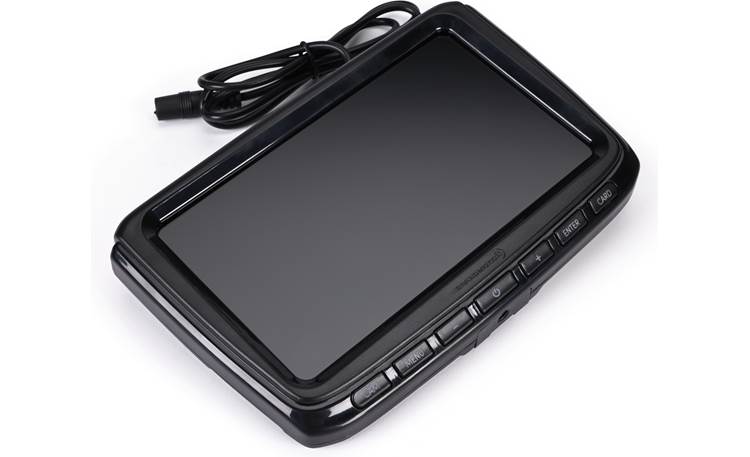

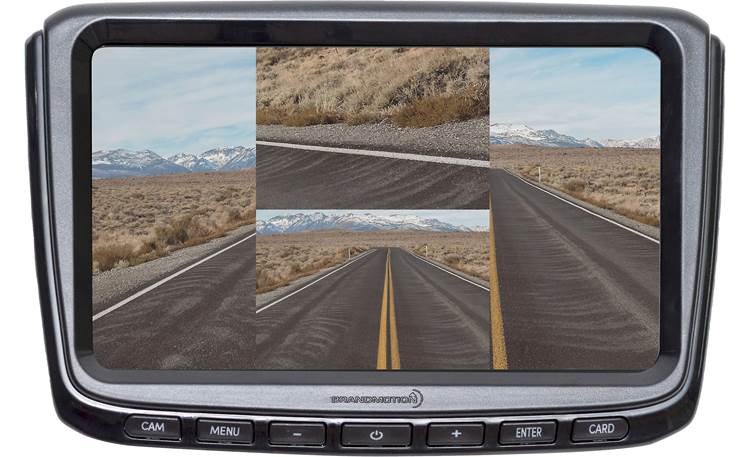

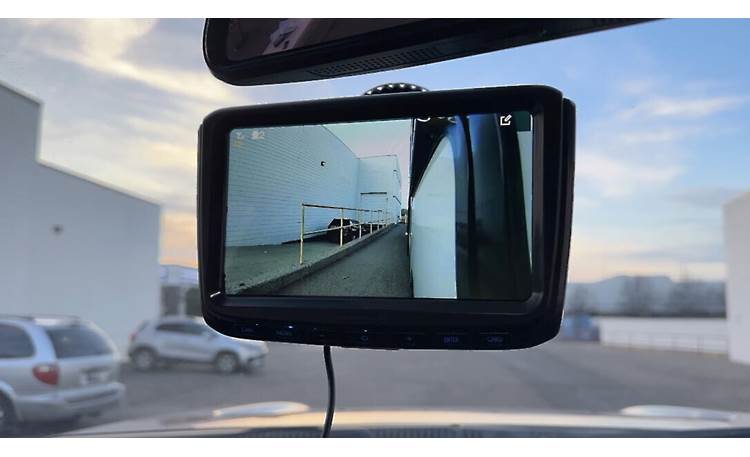

Wireless Display: The AHDS-7810v2 kit includes a wireless 7" color TFT LCD monitor. Two mounting brackets that can be tilted or swiveled are provided, one with a suction cup mount and the other with an adhesive base. The monitor can be wirelessly connected to up to 4 Brandmotion wireless cameras (1 camera included, additional cameras sold separately). Pairing buttons on the monitor and camera let you easily pair the wireless system when first connected to power. The camera system offers up to 80' of wireless camera connection.

Memory: The AHDS-7810v2 automatically records camera footage as you drive. Footage is saved to an optional SD card (sold separately). SD cards up to 128GB can be used.

Note: The AHDS-7810v2 features an SD memory card slot; any other type of memory card used must have an SD card adapter.

Power: The included camera features a 34" DC power cable along with a matching 57" DC cable terminated in a lighter/power socket adaper. A 3' DC-to-bare wire adapter lets you connect the monitor to the vehicle's electrical system. The 7" monitor features a 34" DC cable along with a matching 3' DC-to-bare wire adapter for powering the camera from the rear of the vehicle. The AHDS-7810v2 can operate on 12- or 24-volt electrical systems.

Specifications:

Camera:
- Type: IR with integrated tilt bracket
- Power Requirement: 12-24VDC
- Waterproof Class: IP68
- Camera Resolution: 1936x1096
- Field of View: 110°(h) x 80°(v)
- Illumination Range: 0.2 Lux
- Dimensions: Width: 4.46", Height: 1.50"/4.0" (w/ antenna), Depth: 2.50"
Monitor:
- Type: Color TFT LCD
- Screen Size: 7" (diagonally)
- Monitor Resolution: 1024x600
- Memory Type: SD card (not included)
- Power Requirement: 12-24VDC
- Dimensions: Width: 7.57", Height: 4.88", Depth: 0.90" (2.23" w/ antenna)

Loading accessories...

3 questions already asked

How to Power up camera?

robert Apr 16, 2025

1 answer

If you need help installing your Crutchfield purchased Brandmotion AHDS-7810v2 monitor and camera system Robert, please call our Technical Support line with your order number handy and we are happy to help. We provide lifetime Technical Support free with any purchase. You can also access the owner's manual for camera pairing and wiring instructions for the Brandmotion AHDS-7810v2 by clicking on the owner's manual link under the "what's in the box" column on the webpage.

bo Apr 16, 2025 (Staff)

Can I get a 2nd camera for this model?

victor Mar 12, 2024

1 answer

Greetings Victor. Thank you for your question. The Brandmotion AHDS 7810 V monitor can support up to 4 Brandmotion wireless cameras. We also carry the extra cameras https://www.crutchfield.com/p_2127811V2/Brandmotion-AHDS-7811v2.html

thomas Mar 12, 2024 (Staff)

Can this monitor be installed some place other than the dashboard say in a cabinet in the RV? Can this system run off the RV batteries as opposed to the engine? Looking to use it more as a security system.

cindy Aug 24, 2023

1 answer

Greetings Cindy, and thank you for your questions. Both the camera and monitor run off 12 volts (vehicle battery). Honestly if the monitor is within 40 feet of the camera, you can put the monitor wherever you like.

thomas Aug 25, 2023 (Staff)

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

Brandmotion AHDS-7810v2

7" HD monitor and wireless camera

In stock

4.0 out of 5 stars
6 reviews

$526.20
Loading...

Adding...

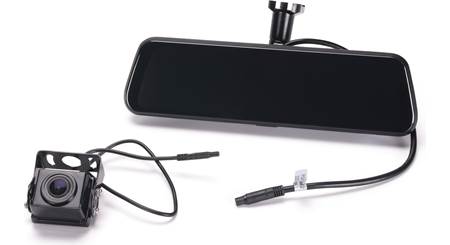

Brandmotion FVMR-1150

FullVUE® replacement mirror/monitor with dash cam and commercial-grade rear-view cam

In stock

4.0 out of 5 stars
8 reviews

$457.56
Loading...

Adding...

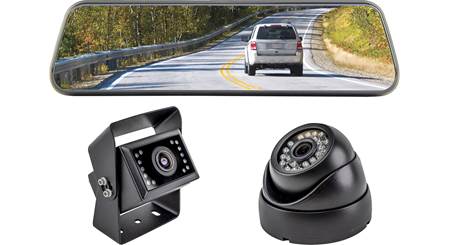

Brandmotion FVMR-1160

FullVUE® replacement mirror/monitor with commercial-grade rear-view and cargo cameras

In stock

5.0 out of 5 stars
1 review

$536.76
Loading...

Adding...

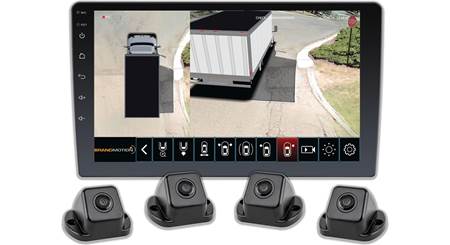

Brandmotion FLTW-3601
