About the Brandmotion FLTW-1001
Product highlights:
- rear-view camera with heating technology
- designed for commercial or other large vehicles in climates where snow is an issue
- package includes: 65.5-foot 4-pin extension cable, Allan key, tape pad
- connects to select Brandmotion mirror/monitors
- resolution up to 1080p
- universal mount for front or rear use
- heating element automatically turns on at -5°F (-20°C) and turns off at 60°F
- built-in microphone
Camera:
- selectable parking lines
- selectable reverse image for front camera use
- 0.1 Lux with infrared night vision
- 140° wide angle (140° vertical)
- weatherproof (IP69K) and shockproof housing
- warranty: 3 years
- MFR # FLTW-1001
- Item # 212FL1001
- California customers: Please click here for your Proposition 65 WARNING.

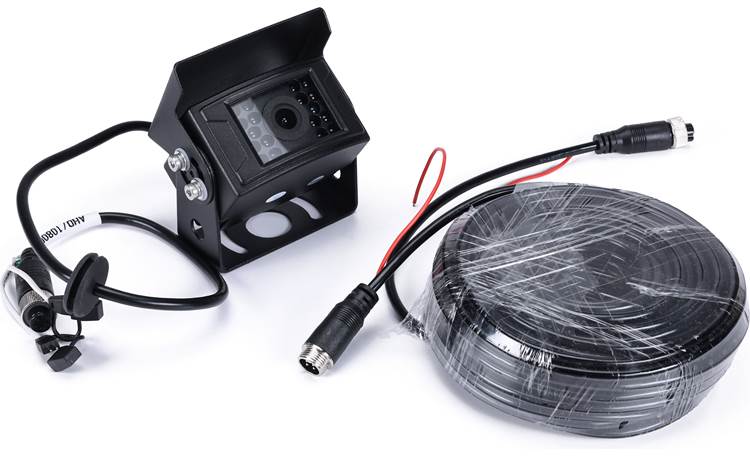

What's in the box:

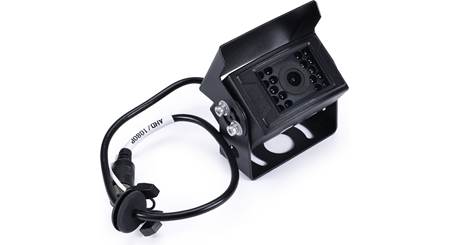

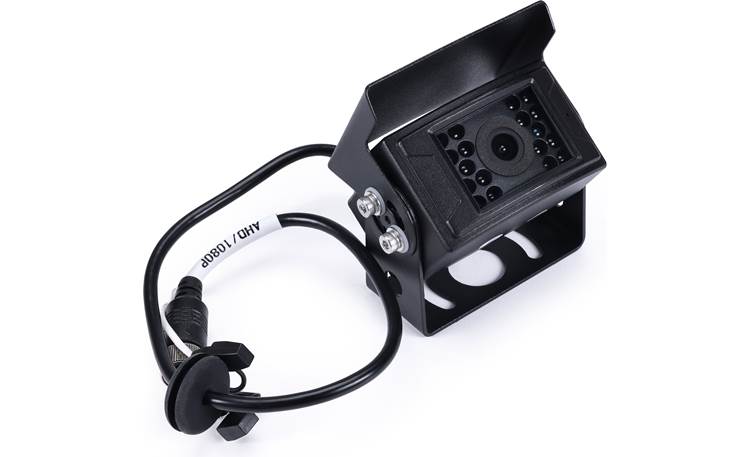

- Heavy-duty heated AHD camera with integrated mount and sun shade (attached 18" 4-pin cable)

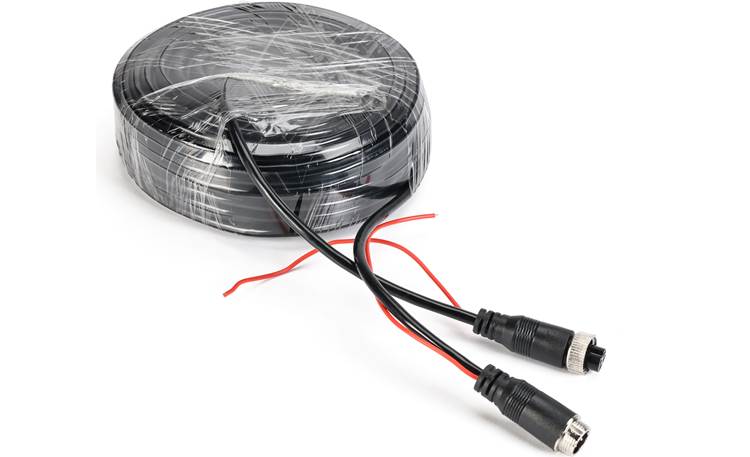

- 65.5' (20m) Video extension cable (4-pin connectors on both ends and red wire pass-through)
- 3M Adhesive pad
- 3mm Allen key
- Product registration and manual download information
More details on the Brandmotion FLTW-1001
Features & specs
| Features and Specs | ||
|---|---|---|
| Camera Type | Rear | |
| Resolution | 1920x1080 | |
| Parking Guidelines | Selectable | |
| Lux Rating | 0.1 | |
| Selectable Views | N | |
| Reversed Image | Both | |
| Horizontal Viewing Angle | 140 degrees | |
| Vertical Viewing Angle | 140 degrees | |
| Wireless | No | |
| Plug type | 4-Pin Aviator | |
Product Research
Features
Overview: The Brandmotion FLTW-1001 Heavy-Duty AHD Heated Camera is an add-on rear camera for your compatible Brandmotion vision system monitor (sold separately). The rear camera features an attached 18" connection cable terminated in a 4-pin connector designed to match the included 65.5' (20m) video extension cable. The extension cable connects to your compatible Brandmotion monitor and includes an in-line red wire for powering the camera from the front of the vehicle. A built-in heating element will automatically activate when the camera temperature drops below -5°F and will turn off when the camera reaches 60°F.

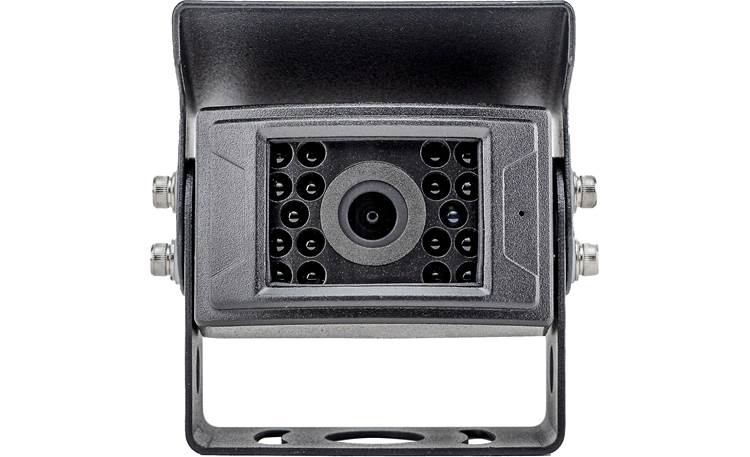

AHD Camera: The Brandmotion heavy-duty AHD camera features a high-quality image sensor with a wide 140° horizontal and vertical viewing angle. The camera can provide a 1920x1080 (1080p) HD resolution video signal and has an IP69K waterproof rating. The camera features IR LEDs for night and low-light conditions and has a Lux rating of 0.1. The AHD camera features a built-in microphone and includes an installed adjustable mounting bracket and sun visor.
Selectable Options: Two wire-loops, terminated with jumper-plugs, extend from the camera's connector cable letting you select the following options:
- Parking Lines (Green): The system comes default to display parking lines; attaching the jumper-cap will disable the parking lines.
- Image (White): A Mirror image is displayed with the jumper-cap off; attaching the jumper-cap will display a Normal image for front camera use.
Compatibility: The Brandmotion FLTW-1001 Heavy-Duty AHD Heated Camera can be used with the following Brandmotion monitor systems:
