Features

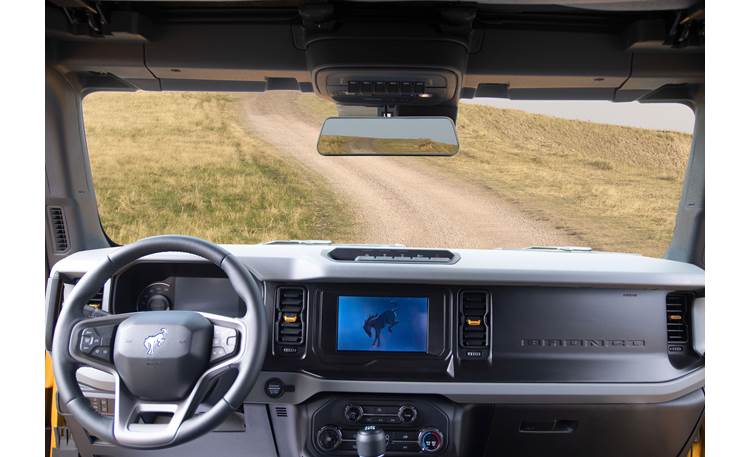

Overview: The Brandmotion FVMR-1120 FullVUE rear-camera mirror, for select 2021-up Ford Bronco (Full Size) vehicles, is designed to replace the factory rear-view mirror and provide a continual image of what's behind the vehicle via a rear spare tire mounted camera. A front-view camera, built into the mirror, is provided for recording the road ahead. Other features include automatic brightness control and Parking Monitoring, which utilizes the front camera to monitor your vehicle while parked. The FVMR-1120 also includes a replacement Ford Bronco compatible mirror stem.

Compatibility: 2021-up Ford Bronco (Full Size)

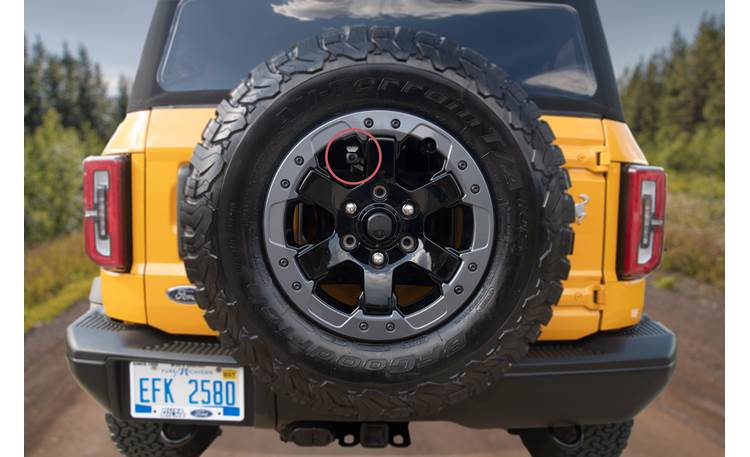

Spare Tire Mount: The included rear-view camera bracket is specifically designed to mount behind the spare tire with the camera partially concealed between two of the upper wheel spokes. This allows the camera to be centered on the rear of the vehicle looking down, offering a wide 170˚ horizontal x 150˚vertical field-of-view with no obstructions from headrests, passengers, luggage, etc. The bracket's mounting arm can be adjusted up/down and right/left for varying wheel design and offset. The rear camera provides a 1920x1080 @30FPS resolution view. The rear-view camera can be set to display parking gridlines while reversing.

Mirror Display&Front Camera: The FVMR-1120 replacement mirror features a 9.66" LCD touchscreen with a high definition 1980x320 pixel display. The full touchscreen provides easy adjustment for all settings and features advanced anti-glare tempered glass. A one-touch, on-screen selection lets you quickly switch between the mirror and the rear-camera view. The FVMR-1120 mirror also includes a built-in, 1920x1080 @25 FPS, front-facing camera for continual 1080p recording of the front of the vehicle. A built-in microphone lets you capture audio along with video, which can easily be selected from the mirror's main menu. A "screen-capture" button on the mirror's main menu lets you take a snapshot of the current front-facing view and save it to the included 32GB micro-SD card.

DVR: The Brandmotion FVMR-1120 features a built-in 2-channel DVR that records both front and rear camera video to the included 32GB micro-SD card, overwriting the oldest video when the card is full. If the internal G-sensor detects an impact, it will lock that section of video to the card. G-sensor sensitivity can be set to either Off, Low, Medium, or High.

Parking Monitoring: The FVMR-1120 features 8, 12, or 24 hour Parking Monitoring that uses G-sensor activation to capture an impact, via the front camera, while the vehicle is parked. Recording is in a time lapse mode, capturing 1 frame every second. Every 2 minutes of video will be 1 hour of recording time. G-sensor Parking Monitor sensitivity can be set to either High or Low.
