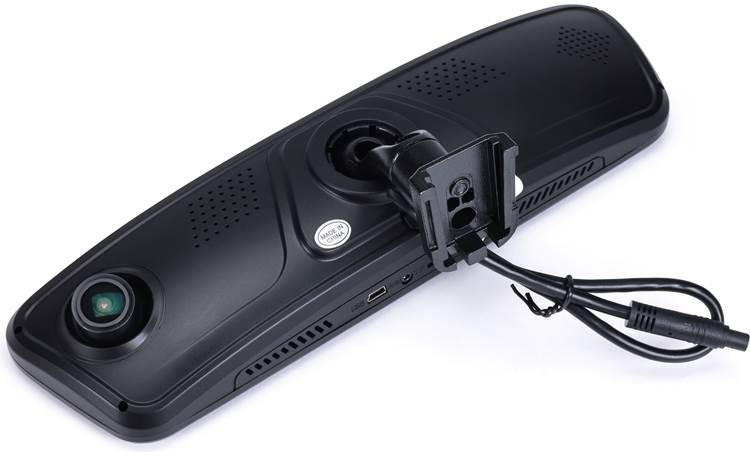

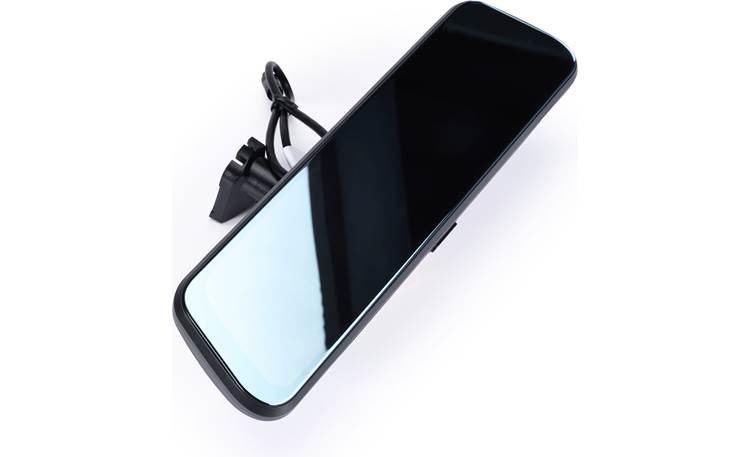

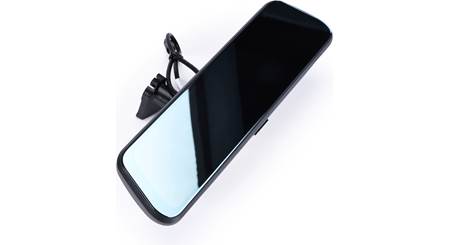

Brandmotion FVMR-1155 FullVUE® replacement mirror/monitor with dash cam and commercial-grade rear-view cam

Name: Brandmotion FVMR-1155
Brand: Brandmotion
SKU: 212FVMR155
Price: 492.76 USD
Availability: InStock

Item # 212FVMR155

Brandmotion's FullVUE FVMR-1155 system includes a replacement mirror, dash cam, and bullet-mount rear-view camera.

Front

1/7

Back

2/7

Only at Crutchfield

3/7

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Brandmotion FVMR-1155 Only at Crutchfield

Brandmotion's FullVUE FVMR-1155 system includes a replacement mirror, dash cam, and bullet-mount rear-view camera.

Item # 212FVMR155

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$492.76

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Charlie Pastorfield

Equip your commercial truck

If you drive a commercial van or truck, Brandmotion's FullVUE FVMR-1155 replacement rear-view mirror system helps ensure a safer drive. Once the replacement mirror is installed, the included rear-view camera will provide an on-demand real-time HD view of what's behind you, so you can start using more than just your side-view mirrors. Plus, its built-in dash cam will record the road ahead.

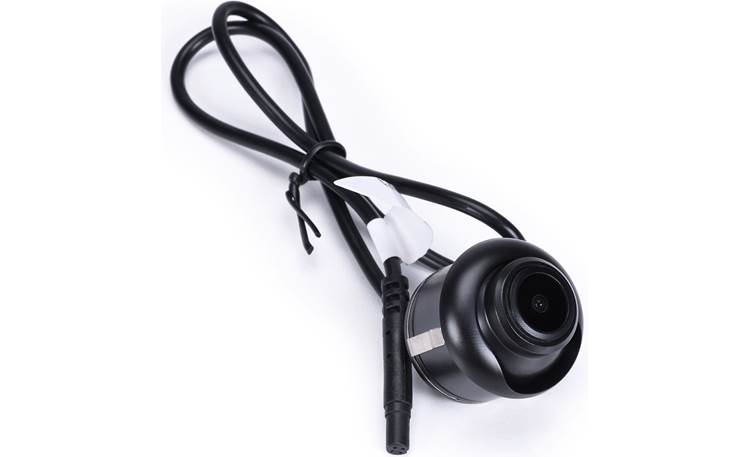

Universal rear-view camera

Brandmotion's rugged rear-view camera gives you a 155-degree wide-angle view that ensures you have an expansive view as you negotiate lane-changing and more. You can either drill a hole and snap the bullet-mount camera into place, mount it under a 3rd brake light, or install it under some other protruding vehicle appendage.

A mirror and a dash cam

The FullVUE monitor makes a proper replacement mirror with auto-dimming for day and night driving. It also provides a full-screen 9.66" HD view of the included camera's video feed. A built-in shock sensor allows the camera to guard your vehicle when parked, going into record mode with an impact. Touchscreen control gives you access to Brandmotion's menus and built-in DVR.

Installation

Installation Note: Installation will require drilling a hole with a hole saw for the camera, plus running wire for power and video between the mirror and the camera. If you have not attempted this kind of job before, professional installation is recommended.

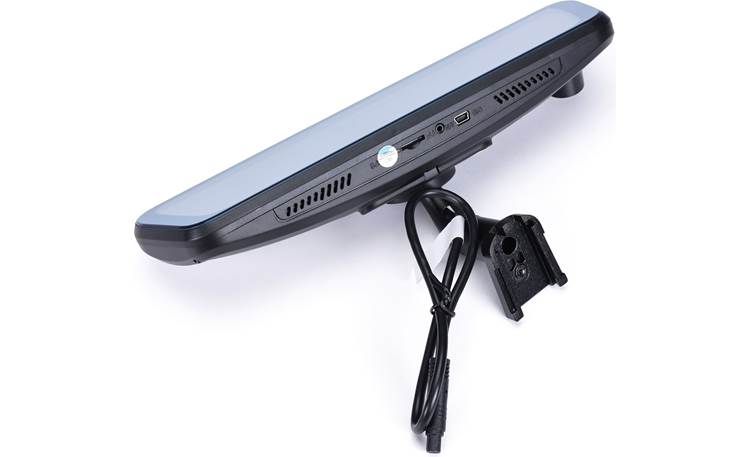

What type of mirror mount works with this mirror?

If you see this type of mirror mount through your windshield, this Brandmotion mirror should work in your vehicle.

Important Note: Look through your windshield to see if your factory mirror has a mount that looks like the one pictured here (and in the product photos above). If it does, you should be able to remove the old mirror and install your new mirror on the old mount. If it doesn't, you'll need a windshield mounting kit (Brandmotion part #5000-DTAB).

Product highlights:

replacement Super HD mirror/monitor with built-in HD front-view camera
rugged, commercial-grade rear-view camera
includes 68.5-foot video cable, power and ground wiring, and installation parts

Rear-view camera specifications:

resolution: 1920 x 1080 (1080p)
shock sensor for automatic event recording
155° horizontal and horizontal viewing angle
waterproof (IP67 rating)
enhanced night vision (0.1 Lux)

Mirror specifications:

Super HD video touchscreen with universal mirror mount
9-11/16" screen
resolution: 1280 x 320 pixels
auto-brightness
built-in front-view camera (1080p)
built-in 2-channel DVR capability (32 GB microSD card included)
rear-view camera input
parking monitoring mode capability (12- or 24-hour settings)
G-sensor sensitivity can be set to Off, Low, Medium, or High
universal D-tab wedge mount
warranty: 3 years
MFR # FVMR-1155
Item # 212FVMR155
California customers: Please click here for your Proposition 65 WARNING.

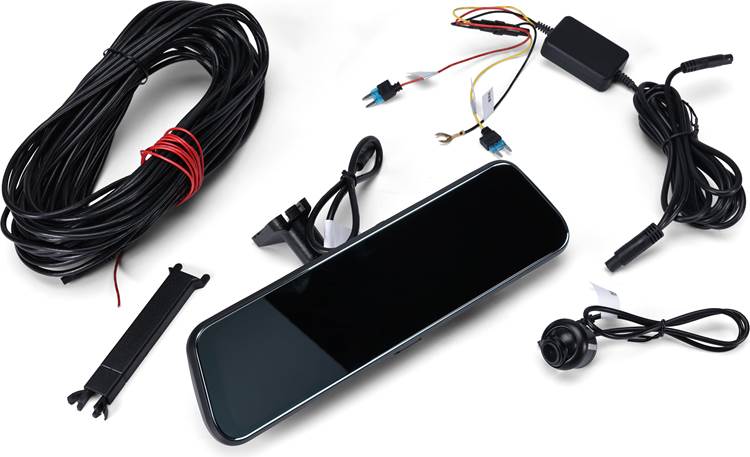

What's in the box:

Rear-view mirror with integrated front-view camera and attached 16" video cable
Rear-view camera with attached 18" video cable
68.5' Video extension cable with attached 3.5' power wire
Cable channel
Power box with attached 8' Y-cable and 10" power/ground wires terminated in fuse-tap ends (inline 2A AGU fuse)
32GB Micro-SD card with SD card adapter
Registration & owner's manual download information

Researched by Crutchfield's Russ B.

Features & specs

Features and Specs
Camera Type	Rear & front
Resolution	1920x1080
Parking Guidelines	No
Lux Rating	0.1
Selectable Views	Front and rear
Reversed Image	Mirror
Horizontal Viewing Angle	155 degrees
Vertical Viewing Angle	155 degrees
Wireless	No
Plug type	Proprietary

Product Research

Features

Overview: The Brandmotion FVMR-1155 FullVUE AHD Vision System features a replacement rear-view mirror/monitor with built-in front-facing camera, and a snap-in rear camera. The mirror/monitor replaces the factory rear-view mirror and provides a continual image of what's behind the vehicle via a rear-facing camera. A front-view camera, built into the mirror, is provided for recording the road ahead. The system features a built-in DVR that can record both camera views, and Parking Monitoring, which utilizes the front camera to monitor your vehicle while parked. The FVMR-1155 replacement mirror features a universal D-Tab wedge-equipped mirror stem.

Snap-In Rear Camera: The FVMR-1155 includes a rear-view camera for a continual view of your truck bed, cargo area, or the road behind you. The rear camera features an integrated snap-in mounting system that allows it to be installed in a third brake light enclosure, tailgate, or bumper. The rear camera offers a wide 155° horizontal and vertical field-of-view with no obstructions from headrests, passengers, luggage, etc., and a 1920x1080 (1080p) resolution view. The rear-view camera carries an IP67 waterproof rating.

Note: The FVMR-1155 rear camera will require drilling a 28mm (approximately 1.1") hole in the third brake light housing or vehicle body for mounting (hole-saw bit not included).

Mirror Display & Front Camera: The FVMR-1155 replacement mirror features a 9.66" LCD touchscreen with a high definition 1280x320 pixel display. The bright 800cd/m2 touchscreen display provides easy adjustment for all settings and features advanced anti-glare tempered glass. A one-touch, on-screen selection lets you quickly switch between the mirror and the rear-camera view. The FVMR-1155 mirror also includes a built-in, 1920x1080, front-facing HD camera for continual 1080p recording of the road ahead.

DVR: The Brandmotion FVMR-1155 features a built-in 2-channel DVR that records both front and rear camera video to the included 32GB micro-SD card, overwriting the oldest video when the card is full. If the internal G-sensor detects an impact, it will lock that section of video to the card. G-sensor sensitivity can be set to either Off, Low, Medium, or High in the settings menu.

Parking Monitoring: The FVMR-1155 features 12- and 24-hour Parking Monitoring that uses G-sensor activation to capture an impact, via the front camera, while the vehicle is parked. Recording is in a time lapse mode, capturing 1 frame every second. Every 2 minutes of video will be 1 hour of recording time. G-sensor Parking Monitor sensitivity can be set to either High or Low.

Loading accessories...

1 question already asked

Are there any temperature limits for the FVMR1100 ?

jeff Jun 30, 2025

1 answer

It has a storage temperature range of -30 to 80 degrees Celsius and a working temperature range of -25 to 75 degrees Celsius

jason Jul 01, 2025 (Staff)

Loading articles...

Frequently compared with

Current item

Loading...

Adding...

Brandmotion FVMR-1155

FullVUE® replacement mirror/monitor with dash cam and commercial-grade rear-view cam

In stock

$492.76
Loading...

Adding...

Brandmotion FVMR-1150

FullVUE® replacement mirror/monitor with dash cam and commercial-grade rear-view cam

In stock

4.0 out of 5 stars
8 reviews

$457.56
Loading...

Adding...

Brandmotion FVMR-1160

FullVUE® replacement mirror/monitor with commercial-grade rear-view and cargo cameras

In stock

5.0 out of 5 stars
1 review

$536.76
Loading...

Adding...

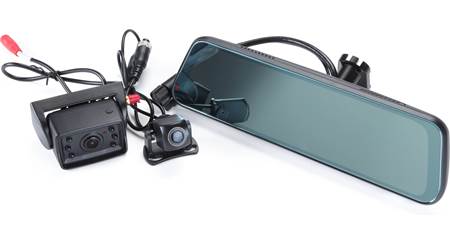

Brandmotion TRNS-2101
