Coastal Source Razor RZ220 Low-profile 3-way outdoor speaker with built-in subwoofers (White)

Name: Coastal Source Razor RZ220
Brand: Coastal Source
SKU: 216RZ220WT

Item # 216RZ220WT

Get full-range high-fidelity sound on your deck, patio, or any outdoor space with this versatile, ultra-slim speaker.

Front

1/5

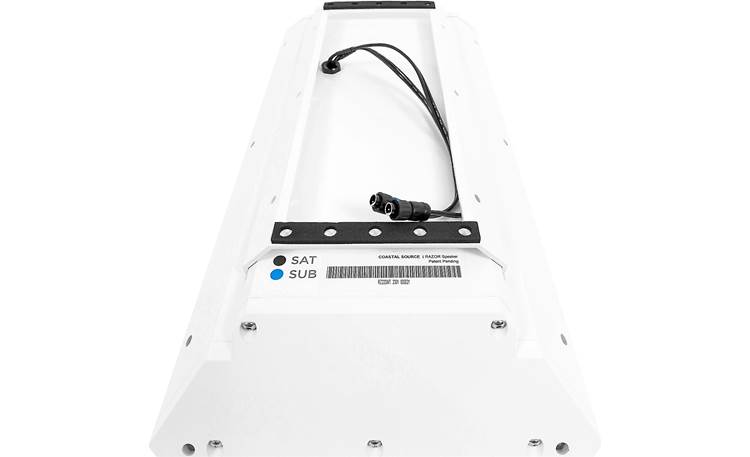

Integrated brackets on the back allow wall- or corner-mounting

2/5

Only at Crutchfield

3/5

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

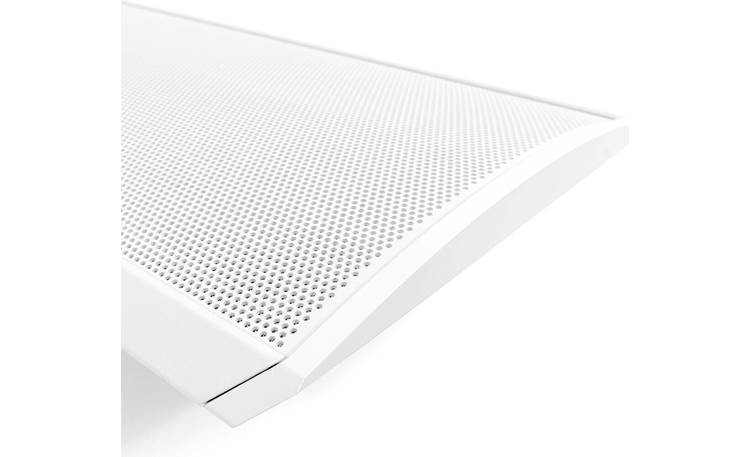

Weatherproof extruded aluminum construction with KydexT composite grille

Modular design allows flexible array mounting

Coastal Source Razor RZ220 Integrated brackets on the back allow wall- or corner-mounting

Coastal Source Razor RZ220 Only at Crutchfield

Coastal Source Razor RZ220 Weatherproof extruded aluminum construction with KydexT composite grille

Coastal Source Razor RZ220 Modular design allows flexible array mounting

Get full-range high-fidelity sound on your deck, patio, or any outdoor space with this versatile, ultra-slim speaker.

Item # 216RZ220WT

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

Call us to order 1-888-955-6000

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Ned O.

A beautifully slim and versatile full-range outdoor speaker

With versatile modular design and a low-profile, wall-mountable form factor, this rugged Razor speaker serves up high-fidelity Coastal Source sound for outdoor spaces like your patio, deck, or pool area.

The RZ220 features a bi-amp design. One input feeds an ultra-shallow woofer with a coaxially mounted tweeter, and the other feeds a pair of built-in subwoofers. This arrangement provides surprisingly full sound with beefy bass response from a slim enclosure. The tweeter benefits from a custom-designed waveguide that helps improve clarity and sound dispersion.

Flexible mounting options

You can mount this speaker flat on a wall or post using the included brackets. All four sides of the cabinet are angled at 45º so you can tuck it neatly into a corner, whether placing it vertically or horizontally. Or line up multiple Razor speakers together around an external corner for broad coverage.

Free consult with our A/V design team

The Razor RZ220 requires a 600/4 or more powerful Coastal Source amplifier and four-conductor speaker wire (both sold separately) for proper bi-amping. Contact a Crutchfield A/V system designer for help putting together your custom Coastal Source sound system.

Product highlights:

low-profile modular speaker can be wall- or corner-mounted
bi-amp design
requires 600/4 or more powerful Coastal Source amplifier (sold separately)
5-1/4" woofer with coaxially mounted tweeter
dual 5-1/4" subwoofers
Acoustic Fractal Waveguide™ tweeter bridge for clear, efficient sound dispersion
110° conical dispersion pattern
frequency response:
- 100-20,000 Hz (-6dB) for the woofer/tweeter
- 40-100 Hz (-6dB) for the subwoofers
power handling: 75 watts (woofer/tweeter), 200 watts (subwoofers)
impedance: 8 ohms (woofer/tweeter), 8 ohms (subwoofers)
sensitivity: 88 dB (woofer/tweeter), 83.5 dB (subwoofers)
weatherproof extruded aluminum construction with Kydex™ composite grille
dual male Coastal Mini-Connector (CMC) inputs for bi-amping
weight: 18.6 lbs.
10-7/16"W x 21-11/16"H x 4-1/8""D (with bracket)
warranty: 5 years
MFR # RZ220WT
Item # 216RZ220WT

Separate amplifier required.

What's in the box:

Wall-mount speaker (white) with two attached 12" input cables
Mounting bracket (installed on speaker)
Two 19" Converter cables (2-pin CMC connnector to bare-ended wire)
Two 13" strips of 3M adhesive-backed foam
Grille removal tool

Researched by Crutchfield's Stacey B.

Features & specs

Installation & setup
Type	Surface Mount
Built-in amplification	No
Bluetooth	No
Wall-mountable	Yes
Bracket included	Fixed bracket
Connector type	2-Pin male CMC
Driver details
Tweeter type	Dome
Tweeter size (inches)	1.5
Midrange size (inches)	---
Woofer size (inches)	5.25
Woofer composition	Not given
Woofer surround	Not given
Audio specs
Power range (watts)	N/A
Sensitivity	88/83 (sub) dB
Impedance (ohms)	8
Frequency response	40Hz-20k Hz
Enclosure	Aluminum, composite
Dimensions & other info
Height (inches)	21-11/16
Width (inches)	10-7/16
Depth (inches)	4-1/8
Weight (pounds)	18.6
Parts warranty	5 Years
Labor warranty	5 Years

Product Research

Features

Overview: The Coastal Source 3-Way Razor Speaker (RZ220) is an outdoor speaker designed to provide superior sound quality while maintaining a slim and elegent profile that easily blends in with your decor. The RZ220 can be wall- or corner-mounted and includes an aluminum mounting bracket.

Note: The Coastal Source RZ220 speaker is wired for bi-amping and will require a compatible Coastal Source amplifier with pre-configured DSP for powering it. Please contact our A/V Design Team for help setting up your system.

Power: The RZ220 Razor Speaker can handle up to 75W (RMS) of power for the 5.25" coax speaker and 200W (RMS) for the two 5.25" subwoofer drivers.

Construction: The Coastal Source RZ220 enclosure is constructed of extruded aluminum with a Kydex composite grille, for long-lasting durability.

Drivers: The RZ220 features a single 5.25" coaxial driver along with two 5.25" subwoofers, providing full, rich sound. The coaxially-mounted 1.5" tweeter features an Acoustic Fractal Waveguide bridge for improved clarity and efficiency.

Connections: The RZ220 is wired for bi-amping, with two 12" input cables attached to the rear of the speaker providing the input connections - one for the coaxial speaker and the other for the two subwoofers. Both cables are terminated in 2-pin CMC connectors and include 19" CMC-to-bare-ended wire adapters for connecting standard speaker wire.

Mounting: The Coastal Source 2.5-Way Razor Speaker's unique design allows it to be wall- or corner-mounted while taking up the least amount of space. The included mounting bracket can be used for wall-mounting the speaker to a flat surface. The speaker's angled enclosure design also allows it to be mounted in a corner for a low-profile installation. Screw holes on the side of the enclosure allow it to be mounted directly to each corner wall.

Note: The Coastal Source RZ220 includes a mounting bracket, but does not include mounting hardware which must be purchased separately based on the mounting surface material.
