Coastal Source Razor RZ320 High-power 2.1 outdoor passive sound bar (White)

Name: Coastal Source Razor RZ320
Brand: Coastal Source
SKU: 216RZ320WT

Item # 216RZ320WT

Get uncompromising full-range soundtrack audio and Coastal Source dependability for your patio or poolside TV.

Front

1/4

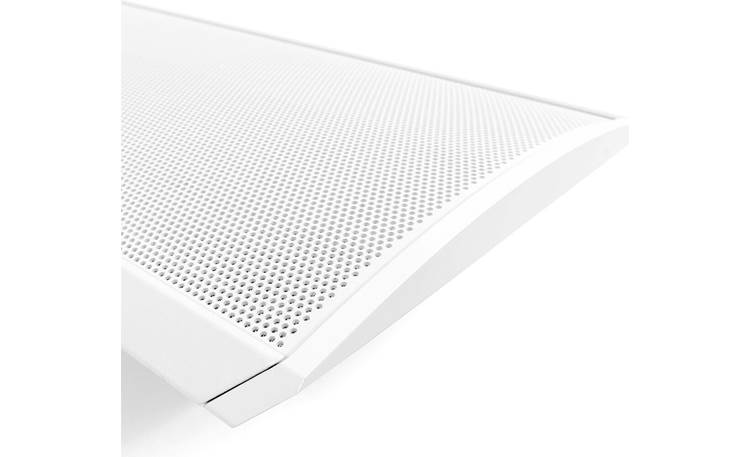

Weatherproof extruded aluminum construction with Kydex™ composite grille

2/4

Only at Crutchfield

3/4

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Modular design allows flexible array mounting

Coastal Source Razor RZ320 Weatherproof extruded aluminum construction with Kydex™ composite grille

Coastal Source Razor RZ320 Only at Crutchfield

Coastal Source Razor RZ320 Modular design allows flexible array mounting

Get uncompromising full-range soundtrack audio and Coastal Source dependability for your patio or poolside TV.

Item # 216RZ320WT

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Ship date unknown

risk-free

when in stock

Call us to order 1-888-955-6000

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Ned O.

A beautifully slim and versatile full-range outdoor sound bar

With versatile modular design and a low-profile, wall-mountable form factor, this rugged Razor sound bar serves up high-fidelity Coastal Source sound for outdoor spaces like your patio, deck, or pool area.

The RZ320 uses two ultra-shallow woofers with coaxially mounted tweeters, plus three built-in subwoofers for the low frequencies. Its three inputs let you connect left and right amplifier channels for the mids and highs, plus a separate channel to run the subs. It adds up to clear, powerful sound with deep bass, all from a surprisingly slender enclosure.

Flexible mounting options

You can mount this sound bar flat on a wall or post using the included brackets. All four sides of the cabinet are angled at 45º so you can tuck it neatly into a corner, whether placing it vertically or horizontally. Or line up multiple Razor speakers together around an external corner for broad coverage.

Free consult with our A/V design team

The Razor RZ320 requires a 600/4 or more powerful Coastal Source amplifier and four-conductor speaker wire (both sold separately) for proper bi-amping. Contact a Crutchfield A/V system designer for help putting together your custom Coastal Source sound system.

Product highlights:

low-profile modular sound bar can be wall- or corner-mounted
requires 600/4 or more powerful Coastal Source amplifier (sold separately)
two 5-1/4" woofers with coaxially mounted tweeters
three 5-1/4" subwoofers
Acoustic Fractal Waveguide™ tweeter bridges for clear, efficient sound dispersion
110° conical dispersion pattern
frequency response:
- 100-20,000 Hz (-6dB) for the woofer/tweeter
- 40-100 Hz (-6dB) for the subwoofers
power handling: 75 watts x 2 (woofers/tweeters), 300 watts (subwoofers)
impedance: 8 ohms (woofers/tweeters), 6 ohms (subwoofers)
sensitivity: 88 dB (woofer/tweeter), 85 dB (subwoofers)
weatherproof extruded aluminum construction with Kydex™ composite grille
three male Coastal Mini-Connector (CMC) inputs for three separate amp channels
weight: 26.6 lbs.
36"W x 10-1/2"H x 4"D (with bracket)
warranty: 5 years
MFR # RZ320WT
Item # 216RZ320WT

Separate amplifier required.

What's in the box:

Wall-mount 2.1 soundbar (white) with three attached input cables
Mounting bracket (installed on speaker)
Three converter cables (2-pin CMC connnector to bare-ended wire)
Two 13" strips of 3M adhesive-backed foam
Grille removal tool

Researched by Crutchfield's Stacey B.

Features & specs

Installation & setup
Type	Surface Mount
Built-in amplification	No
Bluetooth	No
Wall-mountable	Yes
Bracket included	Fixed bracket
Connector type	2-Pin male CMC
Driver details
Tweeter type	Not given
Tweeter size (inches)	Not given
Midrange size (inches)	---
Woofer size (inches)	5.25
Woofer composition	Not given
Woofer surround	Not given
Audio specs
Power range (watts)	N/A
Sensitivity	88 / 85 dB
Impedance (ohms)	8
Frequency response	40Hz-20k Hz
Enclosure	Aluminum
Dimensions & other info
Height (inches)	36
Width (inches)	10-1/2
Depth (inches)	4
Weight (pounds)	26.6
Parts warranty	5 Years
Labor warranty	5 Years

Product Research

Features

Overview: The Coastal Source RZ320 Razor 2.1 Soundbar is an outdoor soundbar designed to provide superior sound quality while maintaining a slim and elegant profile that easily blends in with your decor. The RZ320 can be surface- or corner-mounted to a wall or ceiling and includes an aluminum mounting bracket.

Note: The Coastal Source RZ320 speaker is wired for 2.1 tri-amping and will require a compatible Coastal Source amplifier with pre-configured DSP for powering it. Please contact our A/V Design Team for help setting up your system.

Power: The RZ320 Razor 2.1 Soundbar can handle up to 75W (RMS) of power for each of the 5.25" coax speakers, and 300W (RMS) for the three 5.25" subwoofer drivers. Each coax speaker input presents an 8-ohm load and the subwoofer input a 6-ohm load.

Construction: The Coastal Source RZ320 enclosure is constructed of extruded aluminum with a Kydex composite grille, for long-lasting durability.

Drivers: The RZ320 features two 5.25" coaxial drivers along with three 5.25" subwoofers, providing full, rich sound. The coaxially-mounted tweeters feature an Acoustic Fractal Waveguide bridge for improved clarity and efficiency.

Connections: The RZ320 is wired for tri-amping, with three input cables attached to the rear of the speaker providing the input connections - two for the coaxial speakers and one for the three subwoofers. Both cables are terminated in 2-pin CMC connectors and include CMC-to-bare-ended wire adapters for connecting standard speaker wire.

Mounting: The Coastal Source 2.1 Razor Soundbar's unique design allows it to be wall- or corner-mounted while taking up the least amount of space. The included mounting bracket can be used for wall-mounting the speaker to a flat surface. The speaker's angled enclosure design also allows it to be mounted in a corner for a low-profile installation. Screw holes on the side of the enclosure allow it to be mounted directly to each corner wall.

Note: The Coastal Source RZ320 includes a mounting bracket, but does not include mounting hardware which must be purchased separately based on the mounting surface material.
