About the Coastal Source Razor RZ340
Product highlights:
- low-profile modular line-array speaker can be wall- or corner-mounted
- requires CAS900/4, CRS1K, or more powerful Coastal Source amplifier (sold separately)
- six 5-1/4" woofers with coaxially mounted tweeters
- Acoustic Fractal Waveguide™ tweeter bridge for clear, efficient sound dispersion
- 100° horizontal dispersion pattern (28"-high vertical sound layer)
- frequency response: 100-20,000 Hz (-6dB)
- power handling: 500 watts
- impedance: 6-8 ohms
- sensitivity: 93 dB
- weatherproof extruded aluminum construction with Kydex™ composite grille
- male Coastal Mini-Connector (CMC) input
- weight: 33.6 lbs.
- 10-7/16"W x 36"H x 4-1/8"D (with bracket)
- warranty: 5 years
- MFR # RZ340WT
- Item # 216RZ340WT
What's in the box:
- Wall-mount speaker (white) with attached 12" input cable
- Mounting bracket (installed on speaker)
- 19" Converter cable (2-pin CMC connnector to bare-ended wire)
- Two 13" strips of 3M adhesive-backed foam
- Grille removal tool
More details on the Coastal Source Razor RZ340
Features & specs
| Installation & setup | ||
|---|---|---|
| Type | Surface Mount | |
| Built-in amplification | No | |
| Bluetooth | No | |
| Wall-mountable | Yes | |
| Bracket included | Fixed bracket | |
| Connector type | 2-Pin male CMC | |
| Driver details | ||
| Tweeter type | Dome | |
| Tweeter size (inches) | 1.5 | |
| Midrange size (inches) | --- | |
| Woofer size (inches) | 5.25 | |
| Woofer composition | Not given | |
| Woofer surround | Not given | |
| Audio specs | ||
| Power range (watts) | N/A | |
| Sensitivity | 93 dB | |
| Impedance (ohms) | 6 | |
| Frequency response | 100Hz-20 Hz | |
| Enclosure | Aluminum, composite | |
| Dimensions & other info | ||
| Height (inches) | 36 | |
| Width (inches) | 10-7/16 | |
| Depth (inches) | 3-7/16 | |
| Weight (pounds) | 33.6 | |
| Parts warranty | 5 Years | |
| Labor warranty | 5 Years | |
Product Research
Features

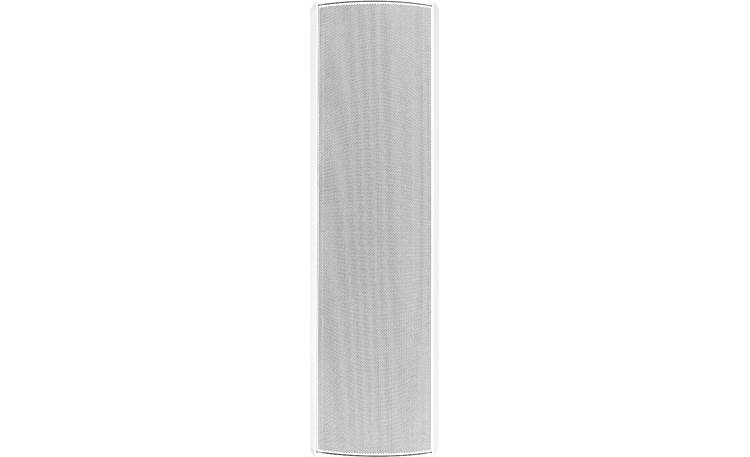

Overview: The Coastal Source Razor Line Source Speaker (RZ340) is an outdoor speaker designed to provide superior sound quality while maintaining a slim and elegent profile that easily blends in with your decor. The RZ340 can be wall- or corner-mounted and includes an aluminum mounting bracket.
Note: The Coastal Source RZ340 speaker will require a compatible Coastal Source amplifier with pre-configured DSP for powering it. Please contact our A/V Design Team for help setting up your system.
Power: The RZ340 Razor Speaker can handle up to 500W (RMS) of power for the six 5.25" coaxial drivers.

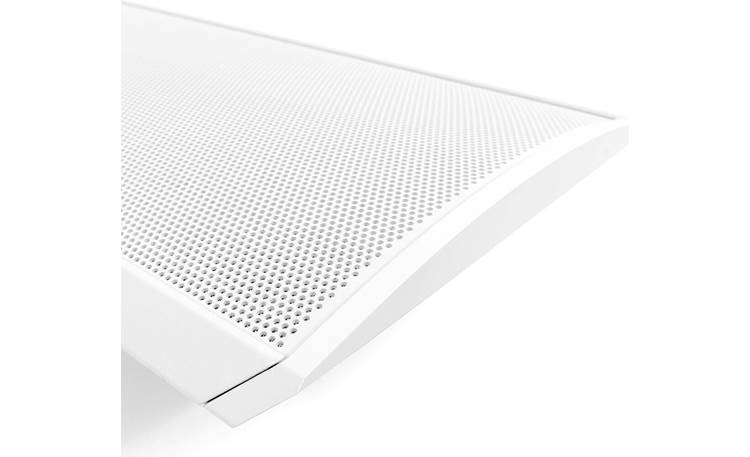

Construction: The Coastal Source RZ340 enclosure is constructed of extruded aluminum with a Kydex composite grille, for long-lasting durability.
Drivers: The RZ340 features six 5.25" coaxial drivers for impressive sound. The coaxially-mounted 1.5" tweeters feature an Acoustic Fractal Waveguide bridge for improved clarity and efficiency.
Note: The Coastal Source Razor Line Source Speaker has a frequency response down to 100Hz and is designed to be used along with an external subwoofer like the Coastal Source RZ350 (sold separately).

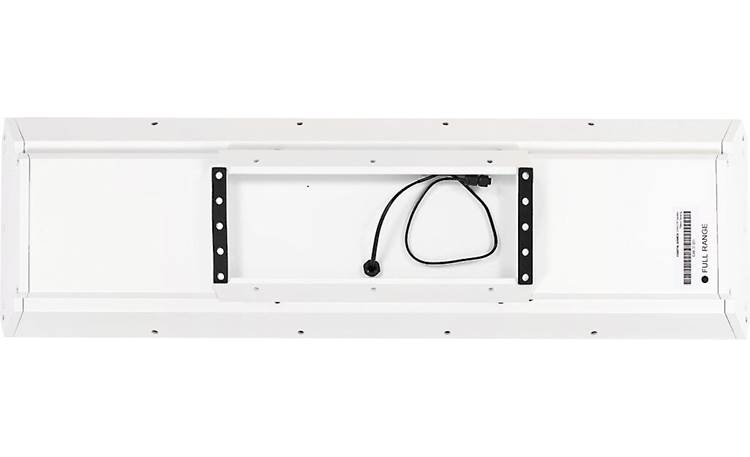

Connections: A 12" input cable attached to the rear of the speaker provides the signal input connection. The cable is terminated in a 2-pin CMC connector and includes a 19" CMC-to-bare-ended wire adapter for connecting standard speaker wire.

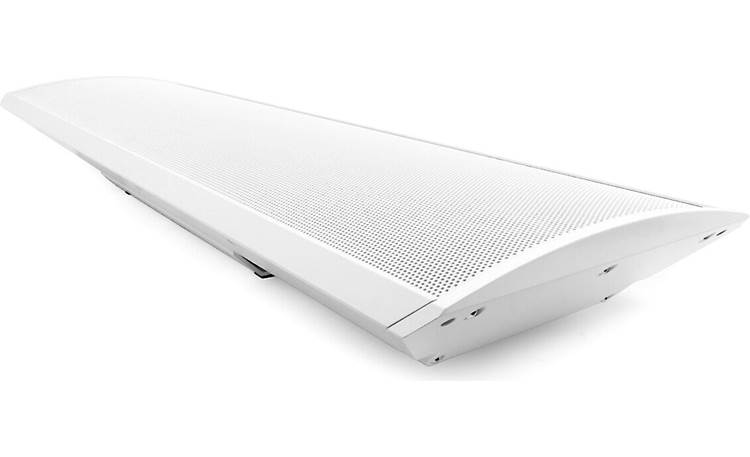

Mounting: The Coastal Source Razor Line Source Speaker's unique design allows it to be wall- or corner-mounted while taking up the least amount of space. The included mounting bracket can be used for wall-mounting the speaker to a flat surface. The speaker's angled enclosure design also allows it to be mounted in a corner for a low-profile installation. Screw holes on the side of the enclosure allow it to be mounted directly to each corner wall.
Note: The Coastal Source RZ340 includes a mounting bracket, but does not include mounting hardware which must be purchased separately based on the mounting surface material.
